Jovision JVS-N510-DS-PE 5MP Bullet Starlight PoE IP Camera with High Power IR LEDs

In stock

Key Features:

  • 5.0 Megapixel resolution (2560×1792) for clear and high-definition footage.

  • Starlight technology for enhanced low-light performance.

  • 4 high-power IR LEDs for night vision up to 20 meters.

  • PoE support for simplified installation with a single Ethernet cable.

  • Advanced image enhancements: BLC, HLC, 3D DNR, DWDR, and Defog.

  • Privacy Masking: Support for up to 8 rectangle areas.

  • Motion Detection and Intelligent Analysis features: Region Intrusion, Line Crossing, People Counting, Video Tampering, and Human Detection.

  • ONVIF 2.4 compatibility for seamless integration with other security systems.

  • IP66 waterproof rating for durable outdoor use.

  • Up to 13 users for remote operation via browser and CloudSEE 2.0.

  • Power consumption: <3W (Day), <6W (Night with IR).

The Jovision JVS-N510-DS-PE 5MP Bullet Starlight PoE IP Camera offers superior surveillance capabilities with 5MP resolution (2560×1792) and high-quality video performance at 20fps. Featuring Starlight technology, this camera excels in low-light conditions, capturing detailed images even in near-dark environments.

Jovision JVS-N510-DS-PE 5MP Bullet Starlight PoE IP Camera Equipped with 4 high-power IR LEDs, it provides night vision with an impressive range of up to 20 meters. The camera’s PoE (Power over Ethernet) functionality simplifies installation by requiring just a single cable for both power and data transmission.

Jovision JVS-N510-DS-PE 5MP Bullet Starlight PoE IP Camera The camera supports H.265/H.264 compression, ensuring efficient video storage while maintaining high image quality. It also offers advanced image enhancement features such as BLC, HLC, 3D DNR, DWDR, and Defog, ensuring clear footage under various lighting conditions.

Built with an IP66-rated metal housing, the camera is designed to withstand harsh outdoor environments, offering reliable protection against dust and water. Ideal for both indoor and outdoor installations, this camera provides flexible mounting options and is perfect for surveillance in commercial, industrial, and residential areas.

Product Specifications

Specifications
Model JVS-N510-DS-PE
Video
Image Sensor 1/3” CMOS
Max Resolution 2560*1792
Effective Pixels 5MP
Compression Standard H.265/H.264
Frame Rate 20fps
Bit Rate 272Kbps~8Mbps
SNR (dB) 52dB
Min. Illumination 0Lux (IR ON)
Lens
Lens 4mm,M12
FOV H: 78.5°, V: 42.8° D: 92.6°
IR-LEDs 28µx4 LEDs
IR-Distance Up to 20 Meters
Function
Exposure Control Support
White Balance Auto
Image Enhancement BLC/HLC/3D DNR/DWDR/Defog
Advanced OSD Support OSD large font function, OSD and time to set the position separately

,5 lines x 32 characters

Privacy Mask Support 8 Rectangle Areas
Motion Detection Support
Image Setting Rotate, Saturation, Brightness, Contrast, Sharpness
Day and night function Day and night automatic switching
Privacy Mask Support up 8 areas
Intelligent Analysis Support Region Intrusion, Line Crossing, People Counting, Video Tampering,

Human Detection

Alarm Method Email Alarm
Remote Operation System, Stream, Alarm, Network Management
Expansion Interface N/A
Network
Ethernet 10M / 100M Ethernet ,1 RJ45
Stream 2x Streams
Protocols HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS, DDNS
ONVIF ONVIF 2.4
Network transmission CloudSEE 2.0
Browser IE8+, Chrome18+, Firefox5.0+, Safari5.02+
User Up to 13 Users
General
Power Supply DC12V or PoE
Power Consumption <3W (During day); <6W (At night with IR)
Working Temperature -20°C ~ 60°C
Working Humidity 0% ~ 90% Rh
Material Metal
Dimensions (WxHxD) 248x77*75mm
Weight 500g
Waterproof IP66

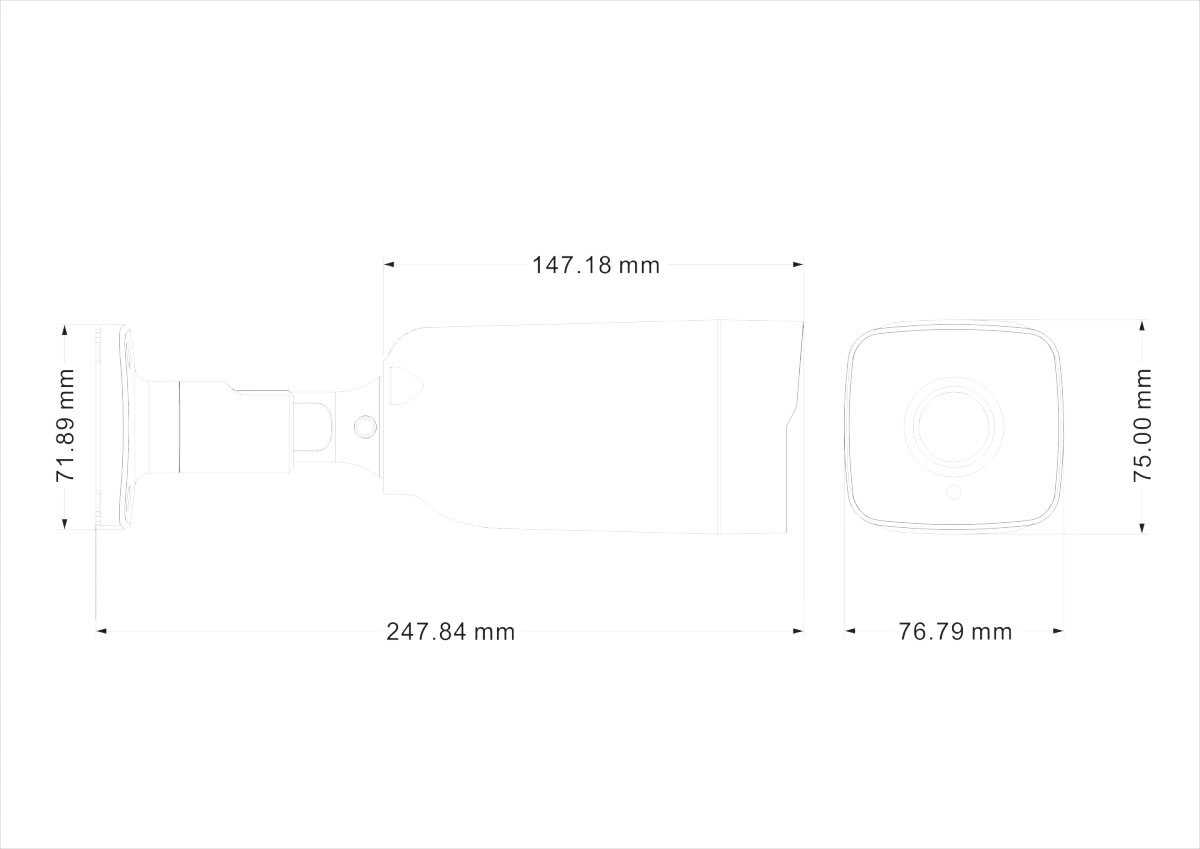

Dimension(mm)


Download Links

Download: JVS-N510-DS-PE 5MP Bullet Starlight PoE IP Camera.pdf
