Jovision JVS-N510-YWS 5MP Metal Bullet IP Camera with IR LEDs and ONVIF Compatibility

In stock

Key Features:

  • 5.0 Megapixel resolution (2592×1944) for high-quality footage at 20fps.

  • 18 IR LEDs for night vision up to 30 meters.

  • ONVIF 2.4 compatibility for easy integration with third-party recorders.

  • CloudSEE app support for remote viewing on iOS/Android devices.

  • IP66 waterproof rating for outdoor use.

  • Motion detection and email alerts for proactive surveillance.

  • Privacy Masking: Supports up to 4 areas for added privacy.

  • Image adjustments: Includes white balance, mirror/flip, and exposure control.

  • Power supply: DC12V/PoE IEEE 802.3af.

  • Energy-efficient: <2W during the day and <8W at night with IR.

  • Built-in metal housing for durability and protection.

  • User access: Up to 13 users for simultaneous monitoring.

The Jovision JVS-N510-YWS 5MP Metal Bullet IP Camera delivers crystal-clear 5MP resolution (2592×1944) at 20fps, ensuring high-definition surveillance for your security needs. Equipped with 18 high-power IR LEDs, it provides night vision with a range of up to 30 meters, ensuring clear visibility even in total darkness.

Jovision JVS-N510-YWS 5MP Metal Bullet IP Camera Built with ONVIF 2.4 compatibility, the camera integrates seamlessly with ONVIF-compliant recorders and other third-party devices. It supports the CloudSEE app for remote access, making it easy to view live feeds from your iOS or Android devices.

Jovision JVS-N510-YWS 5MP Metal Bullet IP Camera With an IP66-rated metal housing, this camera is perfect for both indoor and outdoor use, offering durability and protection against dust and water. The camera features motion detection, email alerts, and supports image adjustments such as mirror/flip, white balance, and privacy masking with up to 4 areas.

The camera is powered via DC12V/PoE and is suitable for a wide range of security applications, from residential to commercial setups.

Product Specifications

Specifications

Model JVS-N510-YWS
Video
Image Sensor 1/ 3” CMOS
Max Resolution 2592x1944
Effective Pixels 5.0MP
Compression Standard H.265
Maximum Frame Rate 5.0MP@20fps
SNR(dB) 38.6dB
Bit Rate 128Kbps~8Mbps
Illumination 0Lux (IR ON)
Lens
Lens 4mm
Viewing Angle 4mm: 104°
IR-LEDs 14µ x 18 LEDs
IR-Distance Up to 30 Meters
Function
Motion Detection Support
Email Alert Support
Day& Night Support
Recording Support (NVR, Windows PC, Smartphone)
DHCP Support
FTP Not Supported
Pan/Tilt Not Supported
SD-Card Not Supported
Privacy Mask Support up 4 areas
Exposure Control Support
Image Adjustment Support
Auto. White Balance Support
Image Rotation Support (Mirror/Flip)
Network
Ethernet 10M/100M Ethernet, RJ45 Port
Protocols HTTP, TCP/IP,UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
Stream 2x Streams
Wi-Fi Not Supported
ONVIF ONVIF 2.4
User Up to 13 Users
Browser IE8+, Chrome18+ ~ 42-
Smart Phone iOS/Android
General
Dimensions(W*H*D) 215x100x105mm
Weights 480g
Material Metal
Working Temperature -20°C~60°C
Humidity RH 10%~90%
Power Supply DC12V/1A, PoE IEEE 802.3af
Consumption Day ≦2W; Night ≦8W
Waterproof IP66

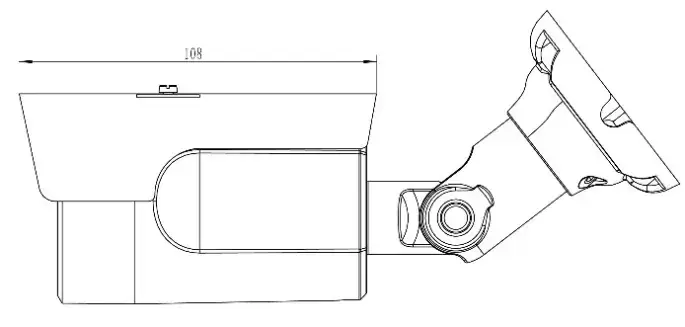

Dimensions (mm)





Download Links

Download: JVS-N510-YWS 5MP Metal Bullet IP Camera.pdf
