Jovision JVS-N513-DS-Z5 5MP 5X Motorized Zoom Bullet IP Camera with SONY CMOS

In stock

Key Features:

  • 5.0 Megapixel resolution (2592×1944 @30fps) for high-definition video.

  • SONY 1/2.8″ Progressive Scan CMOS sensor for superior image quality.

  • Motorized 5X optical zoom (2.7 ~ 13.5mm) for flexible and detailed views.

  • Infrared (IR) detection, with 3 IR array LEDs for clear night vision.

  • Dual-streaming support for efficient streaming and recording.

  • Advanced image features: 3D-DNR, Defogging, D-WDR, and lens correction.

  • Two-way audio with audio input/output (3.5mm AV interface).

  • Supports SD card storage up to 256GB for local recording.

  • ONVIF Profile S for interoperability with third-party systems.

  • Aluminum alloy housing for indoor and outdoor use with IP66 rating.

  • PoE support for easy installation.

  • Alarm I/O for integration with other security systems.

The Jovision JVS-N513-DS-Z5 5MP Motorized Zoom Bullet IP Camera delivers high-definition surveillance with 5.0MP resolution (2592×1944) at 30fps. Featuring a SONY Progressive Scan CMOS sensor, this camera ensures superior image quality with excellent low-light performance.

Jovision JVS-N513-DS-Z5 5MP Motorized Zoom Bullet IP Camera Equipped with a motorized 2.7 ~ 13.5mm lens, the 5X optical zoom provides flexible viewing angles and precise control, making it suitable for both large areas and detailed focus.

Jovision JVS-N513-DS-Z5 5MP Motorized Zoom Bullet IP Camera The camera supports H.265/H.264/MJPEG compression, ensuring high-quality video with low bandwidth requirements. It also features dual-streaming, allowing simultaneous video at different resolutions for efficient streaming and recording.

With advanced features such as 3D-DNR (Digital Noise Reduction), Defogging, D-WDR (Wide Dynamic Range), and lens correction, the camera ensures clear, high-quality footage in various lighting conditions.

ONVIF Profile S ensures compatibility with other surveillance systems, while the built-in audio input/output and two-way audio enable seamless communication. It also supports SD card storage (up to 256GB) for local video recording.

Ideal for indoor and outdoor installations, the camera is designed with a durable aluminum alloy housing and can be easily mounted on both ceilings and walls. It also offers PoE (Power over Ethernet) support, simplifying the installation process by reducing cable clutter.

Product Specifications

Specifications

Model JVS-N513-DS-Z5
Video
Image Sensor 1/2.8" Progressive Scan CMOS
Max. Resolution 2592x1944
Effective Pixels 5.0MP
Compression Standard H.265/ H.264/ MJPEG
Bitrate 30Kbps~16Mbps
Bitrate Control CBR/ VBR
Lens
Lens 2.7 ~ 13.5mm
Lens Type Motorized
Function
Image Function AEC/ AWB/ AGC
Image Adjustments Color Saturation, Brightness, Contrast, Hue, Sharpness, Gamma, D-WDR
Others Anti-Fogging/ Anti Trembling/ IR Detection
Image Settings Flip / Mirror
Video Overlay Support
Privacy Mask 4 Zones
Storage Max. 256GB
Alarm I/O 1x Alarm-In, 1x Alarm-Out
RS485 1x RS485 interface
Audio 1 input (3.5mm AV interface), 1 output (3.5mm AV interface)
Audio Compression G.711A/ G.711U/ G.726
Two-way Audio Support
Network
Ethernet 1x RJ45 (10M/100M BASE-TX)
Protocols TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP
Alarm output E-mail/FTP upload
Interoperability ONVIF (Profile S)
Browser IE 10 above
Max. User Access Max. 5
General
Power DC12V ±10% / IEEE802.3af PoE
Environmental Casing Aluminum Alloy Housing, Indoor and Outdoor Applicable
Installation Ceiling Mounted & Wall Mounted
Power Consumption <12W (IR On)
Operating Temperature  -30°C ~ 60°C
Operating Humidity 0% ~ 85% Rh
Dimensions  313x101x70mm
Weight 965g

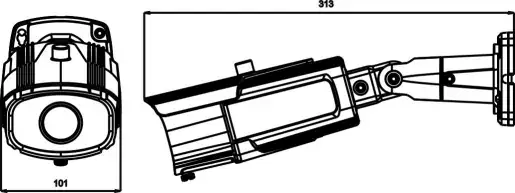

Dimension(mm)

JVS-N513-DS-Z5  5MP 5X Motorized Zoom Bullet IP Ca

Download Links

Download: JVS-N513-DS-Z5 5MP 5X Motorized Zoom Bullet IP Camera.pdf
