Jovision JVS-N519-PWL 5MP Full Color PoE IP Camera (ColorNext Pro Series)

In stock

Key Features:

  • 5MP Full Color Resolution: 2560×1792 for high-definition video quality.

  • Full-Color Night Vision: Enhanced with adaptive dimming and 18 warm LEDs for clear nighttime images up to 65 meters.

  • VQC Technology: Ensures vibrant and sharp images under varying lighting conditions.

  • Built-in Audio: Mic and speaker for clear two-way communication.

  • PoE Support: Simplifies installation with PoE IEEE802.3af.

  • IP67 Waterproof: Reliable performance in all weather conditions.

  • Wide Field of View: 88.9° (horizontal), 47.3° (vertical), and 103.7° (diagonal) field of view.

  • Advanced Image Settings: BLC, HLC, 3D DNR, Defog, and White Balance control.

  • Alarm Triggers: Supports motion detection, region intrusion, and line crossing for intelligent alerts.

The Jovision JVS-N519-PWL 5MP Full Color PoE IP Camera from the ColorNext Pro Series offers exceptional image quality with its 5MP resolution (2560×1792) and full-color night vision capabilities. Equipped with VQC technology, this camera ensures clear and vibrant images even in low-light environments.

Jovision JVS-N519-PWL 5MP Full Color PoE IP Camera With an F1.0 aperture and 18 adaptive LEDs, the camera delivers up to 65 meters of infrared illumination, while the adaptive dimming feature automatically adjusts the LED brightness for optimal night vision performance. The camera also includes built-in mic and speaker for two-way audio communication, making it an ideal choice for both security and intercom solutions.

The IP67 waterproof rating ensures this camera performs reliably in various weather conditions, and PoE (Power over Ethernet) simplifies the installation process. Its auto day-night switching and advanced image enhancement features like BLC/HLC/3D DNR/Defog offer superior performance for any surveillance need.

Product Specifications

Specifications
CAMERA
Image Sensor 1/1.79" Progressive CMOS
Min. Illumination IR ON 0 Lux
Day & Night IR cut filter with auto switch
Lens 3.6mm
FOV H: 88.9°; V: 47.3°; D:103.7°
LEDs 18 Pcs Warm LED
LED Range Up to 65m
LED Adjustment Adaptive Dimming
Max Resolution 2560x1792
Frame Rate 25fps
Video Compression H.265/H.264
Bit Rate (CBR/VBR) Main Stream: 256 ~ 8192Kbps

Sub Stream: 68 ~ 1024Kbps

Audio Compression G.711a / G.711u
Image Setting Saturation, Brightness, Contrast, Sharpness
Image Enhancement BLC/HLC/3D DNR/Defog
White Balance Auto
Privacy Mask Support 8 Rectangle Areas
DWDR Support
NETWORK
Network Protocols HTTP, TCP/IP, UDP/IP, ICMP, RTP, UDP, RTCP, SMTP, DHCP, DNS
Interface Protocols Standard ONVIF, GB28181, CloudSEE
Auto IP Configuration Support
Alarm Trigger Motion Detection, Region Intrusion, Line Crossing
RTSP Video Standard RFC2326, QuickTime/VLC Player etc.
Security User security authentication, Reset, Hardware Watch Dog
Web Language Chinese, English
Browser IE8+, Chrome18+, Firefox5.0+, Safari5.02+
INTERFACE
Ethernet 1 RJ45 10M / 100M Ethernet
Audio Built-in Mic and Speaker
SD Card Not Support
Reset Button Not Support
GENERAL
Power Supply DC12V/2A, PoE IEEE 802.3af
Power Consumption <3W (During day); <13W (At night)
Working Temperature -20°C ~ 60°C
Working Humidity 10% ~ 90% Rh Non-Condensation
Dimensions 262x112x155(mm)
Product Weight ≤700g
Color / Material Front Shell: Black ADC12; Rear Shell: White PC
Installation Wall, Ceiling

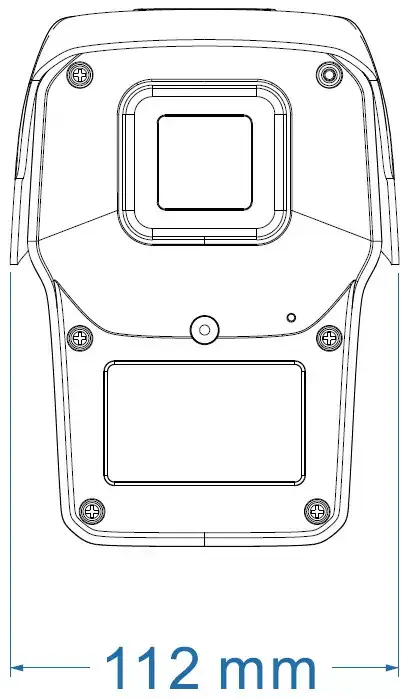

line drawing1.jpg

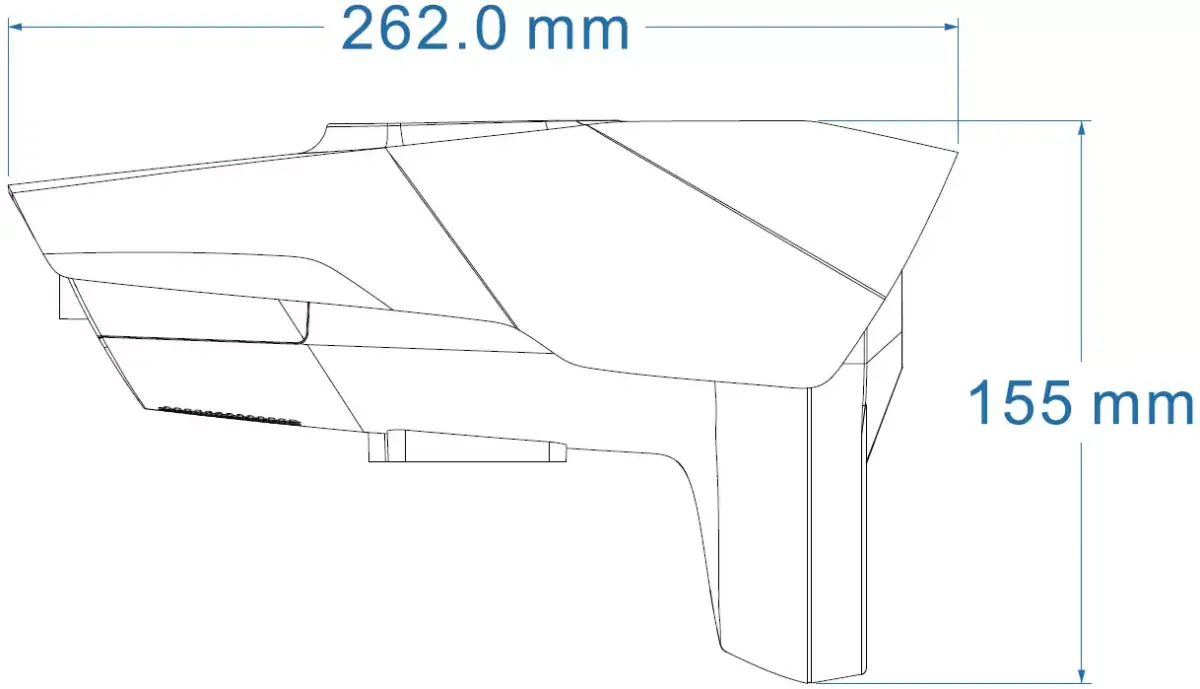

line drawing2.jpg

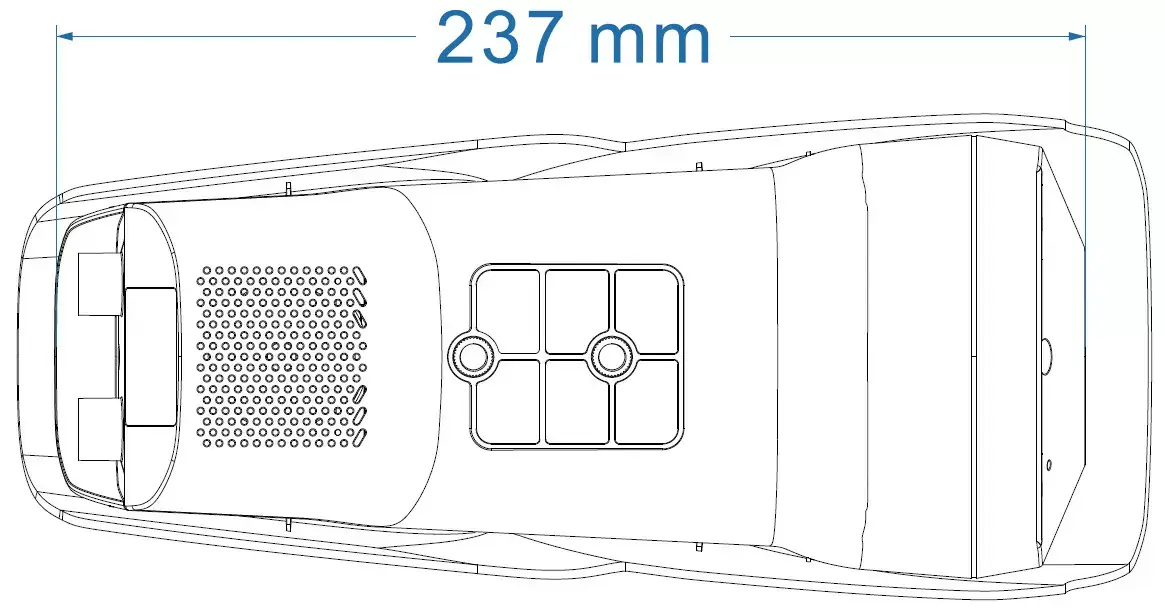

line drawing3.jpg

Download Links

Download: JVS-N519-PWL 5MP Full Color PoE IP Camera (ColorNext Pro Series).pdf
