Jovision JVS-N819-ZDL 4K 8MP Full-Color Network Camera with Motorized Zoom

Jovision JVS-N819-ZDL 4K 8MP Full-Color Camera
Roll over image to zoom in
Click to open expanded view

In stock

Key Features:

  • 4K Ultra HD Resolution: Captures footage in 3840×2160 resolution (8MP) for superior image clarity.

  • Motorized Varifocal Lens: Adjustable 2.7mm-13.5mm lens with a 101.4° to 26.9° field of view.

  • 24/7 Full-Color Monitoring: Warm light LEDs ensure vivid color video even at night.

  • Two-Way Audio: Built-in microphone and speaker for live communication.

  • Advanced Night Vision:

    • 60m full-color night vision with warm light LEDs.

    • 80m infrared night vision for low-light environments.

  • VQC Technology: Enhances video clarity with optimized contrast and brightness.

  • WDR (120dB): Provides superior image quality in high-contrast lighting conditions.

  • Multiple Streams: Supports three simultaneous video streams for efficient network use.

  • Privacy Masking: Allows setting up to 8 privacy zones.

  • Weatherproof Design: IP67 waterproof rating for reliable outdoor installation.

  • PoE Support: Simplifies installation with Power over Ethernet (PoE).

  • SD Card Support: Stores recordings locally with support for up to 512GB SD card.

SKU: JVS-N819-ZDL Categories: , , Tags: , , , , , , , , , Brand:

The Jovision JVS-N819-ZDL 4K 8MP Full-Color Camera is a high-performance surveillance solution designed for crystal-clear 24/7 color monitoring. Equipped with a motorized varifocal lens (2.7~13.5mm), this camera offers flexible zoom control, making installation and monitoring easier than ever.

Jovision JVS-N819-ZDL 4K 8MP Full-Color Camera With 3840×2160 ultra HD resolution (8.0MP), the camera delivers sharp and detailed video quality, ensuring accurate identification of objects and people. The built-in microphone and speaker provide two-way communication, making it ideal for interactive security setups.

Jovision JVS-N819-ZDL 4K 8MP Full-Color Camera Featuring 4 warm light LEDs and 4 infrared LEDs, the camera ensures full-color night vision up to 60 meters and infrared night vision up to 80 meters. Its VQC Technology optimizes video quality, while WDR (120dB) enhances image clarity in challenging lighting conditions.

Designed for indoor and outdoor environments, this camera boasts an IP67 waterproof rating, ensuring durability against harsh weather. It also supports an SD card (up to 512GB), reducing the need for external storage solutions.

Product Specifications

Specifications



Video
Image Sensor 1/3" CMOS
Max Resolution 3840x2160
Effective Pixels 8.0MP
Compression Standard H.264/H.265+
Framerate 30fps
Bitrate Main Stream: 256Kbps ~ 4096Kbps

Sub Stream: 68Kbps~1024Kbps

Third Stream: 68Kbps~1028Kbps
SNR (dB) ≥50dB
Min. Illumination 0Lux (light ON)
Lens
Lens Varifocal Lens, Motorized Lens, 2.7mm-13.5mm
FOV Horizontal FOV: 101.4° to 26.9°

Vertical FOV: 53.6° to 15.2°

Diagonal FOV: 118.7° to 30.5°
Function
Audio Codec G.711U/G.711A (Default)
Exposure Control Auto
White Balance Auto
Gain Control Auto
Digital 3D Noise   Reduction Support
OSD Information Setting By default: The customized OSD supports a maximum of six lines, each line contains a maximum of 32 characters. One Chinese character is counted as two characters
SNTP Support
Schedule Reboot Support
Smart Defog Support
Smart Motion Detection Not Support
Image Setting Support Saturation, Brightness, Contrast, Sharpness adjustment
Image Style Standard, Soft, Transparent
Day and Night Function Auto, Always Black & White, Always Color, Scheduled Color
Privacy Mask Support up 8 areas
Night Vision Optimization Support
WDR 120dB
Screen Settings Screen mirroring, Screen flipping
IP Adaptation Support automatic adaptation of IP address (Optional)
Intelligent   Analysis Not Support
Alarm Method Email Alarm, Client Alarm
Remote Operation System, Audio and Video, Image, Alarm, Network management, Storage management, Intelligent Analysis
Audio Function Built-in Mic and Speaker
SD Card Support(512GB)
Peripheral   Extension Interface Audio Input/Output, Alarm Input/Output
Network
Ethernet 10/100Mbps Ethernet
Stream 3x   Streams
Network Protocols HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
Access Protocol Standard ONVIF, Public Cloud
Network Transmission CloudSEE 2.0
Fusion Cloud   Platform Support
Browser IE8+, Chrome18+, Firefox5.0+, Safari5.02+
User Up   to 13 Users
App Support iOS/Android
General
Lights 4 Warm Light LEDs + 4 IR LEDs
IR Distance IR: Up to 80 MetersWarm Light: Up to 60 Meters
Waterproof Level IP67
Power Supply DC12V/2A   or PoE
Power Consumption <6W (During Day); <12W (At Night)
Working Temperature -30°C ~ +60°C
Working Humidity 10% ~ 90% Rh
Color/Material Black and White/Metal+Plastic

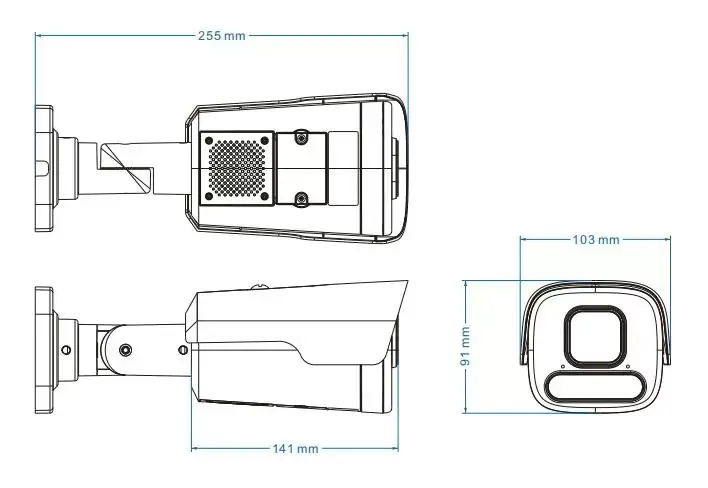

Dimensions (WxHxD) 103x91x255mm
Weight 732g
Installation Method Wall or Ceiling Mount


Download Links

Download: JVS-N819-ZDL 4K 8.0MP Motorized Zoom Full-Color Video  Audio Network Camera.pdf
