Jovision JVS-TS3622 Overhead Counting PoE Dome Camera with 1080p Resolution

In stock

Key Features:

  • 2.0MP Full HD Video: Captures 1920×1080 resolution at 30fps for clear and detailed footage.

  • Overhead Counting Function: Ideal for people counting and human traffic analysis.

  • Power over Ethernet (PoE) Support: Easy installation with IEEE 802.3af PoE compatibility.

  • Infrared Night Vision (IR LEDs): 18x IR LEDs provide visibility up to 20 meters in darkness.

  • ONVIF 2.4 Compatibility: Ensures seamless integration with ONVIF-supported NVRs.

  • Motion Detection & Alerts: Supports real-time email notifications for security events.

  • Face Capture Technology: Detects, tracks, and captures faces with intelligent screening.

  • Weatherproof IP66 Housing: Durable aluminum casing for indoor and outdoor use.

  • Multiple Storage & Network Options: Works with NVRs, Windows PCs, and smartphones.

  • Flexible Power Options: Supports DC 12V/2A and PoE (IEEE 802.3af).

The Jovision JVS-TS3622 Overhead Counting PoE Dome Camera is a 2MP full HD surveillance solution designed for advanced security and analytics. With 1920×1080 resolution at 30fps, this camera ensures crystal-clear video quality, making it ideal for overhead monitoring applications such as people counting and security surveillance.

Jovision JVS-TS3622 Overhead Counting PoE Dome Camera Equipped with 18 IR LEDs, this PoE-powered dome camera provides up to 20 meters of infrared night vision, allowing 24/7 surveillance in both indoor and outdoor environments. It supports the ONVIF 2.4 standard, ensuring seamless integration with a wide range of NVRs and security systems.

One of the standout features of the Jovision JVS-TS3622 Overhead Counting PoE Dome Camera is its Overhead Counting function, which enables accurate people counting and human traffic analysis—a powerful tool for retail stores, malls, and business premises in Bangladesh.

Built with a rugged IP66-rated aluminum housing, this weatherproof dome camera is designed to withstand harsh environmental conditions. The camera supports motion detection, email alerts, privacy masking (up to 8 zones), and smart face detection capabilities, enhancing its security performance.

With Power over Ethernet (PoE) support, installation is simplified, reducing the need for additional power cables. Its compatibility with iOS, Android, and PC-based remote monitoring ensures you can access real-time footage anytime, anywhere.

Why Choose LogicGo for Your Surveillance Needs in Bangladesh?

LogicGo provides cutting-edge CCTV security solutions, offering high-performance surveillance cameras like the Jovision JVS-TS3622. With professional guidance and support, we ensure top-tier security solutions for businesses and institutions across Bangladesh.

Product Specifications

Specifications

Model JVS-TS3622
Video
Image Sensor 1/2.9” CMOS
Max Resolution 1920x1080
Effective Pixels 2.0MP
Compression Standard H.265/H.264
Maximum Frame Rate 1080p@30fps / 960p@30fps
SNR(dB) 52.1dB
Bit Rate Main: 25~8129Kbps Sub: 25~4068Kbps
Illumination 0Lux(IR On)
Lens
Lens 2.8mm
Viewing Angle H:97.37°  V:52.49°  D:114.55°
IR-LEDs 18x IR LEDs
IR-Distance Up to 20 Meters
Function
Motion Detection Support
Email Alert Support
Day& Night Support
Recording Support (NVR, Windows PC, Smartphone)
DHCP Support
Audio Input Support (Ext. Mic)
Audio Codec Support (G711A/G711U)
Privacy Mask Support up 8 areas
Exposure Control Support
Image Adjustment Support
Auto. White Balance Support
Image Rotation Support (Mirror/Flip)
Intercom Not Supported
Face capture Supports detection, tracking, capture, screening, and output of optimal face capture,

human traffic statistics, heartbeat mode With DeepCloud Platform

Capture resolution 1920x1080
Maximum face per frame 32
Image Format JPEG
Upload method Private protocol, HTTP upload, FTP upload
Capture mode After taking off capture, track process capture, mix capture, interval capture
Network
Ethernet 10M/100M Ethernet, RJ45 Port
Protocols HTTP, TCP/IP,UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
Stream 2x Streams
LAN Support
ONVIF ONVIF 2.4
User Up to 13 Users
Browser IE8+
Smart Phone iOS/Android
General
Dimensions (WxHxD) φ120x90 (mm)
Weights 500g
Material Aluminum
Working Temperature -20°C~60°C
Humidity RH 10%~90%
Power Supply DC12V/2A, PoE (IEEE 802.3af)
Consumption Day ≦3W; Night ≦7W
Waterproof IP66

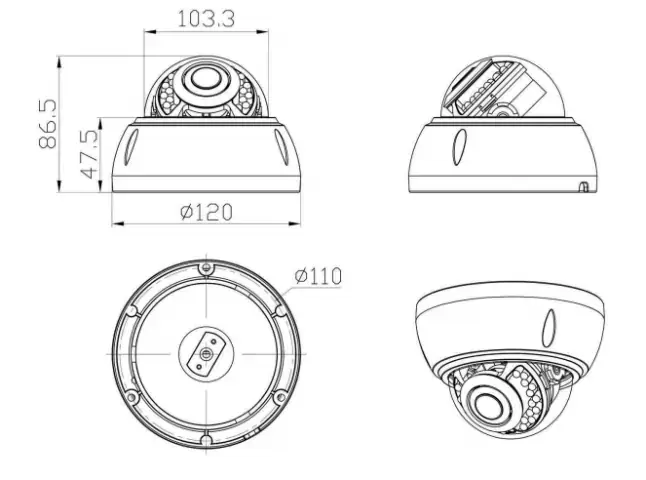

Dimensions (mm)


Download Links

Download: JVS-TS3622 Overhead Counting PoE Dome Camera.pdf
