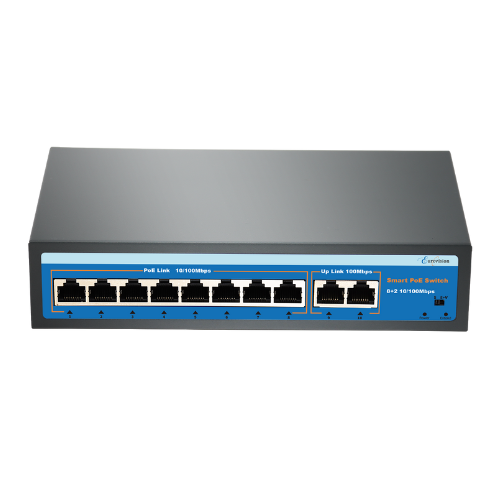

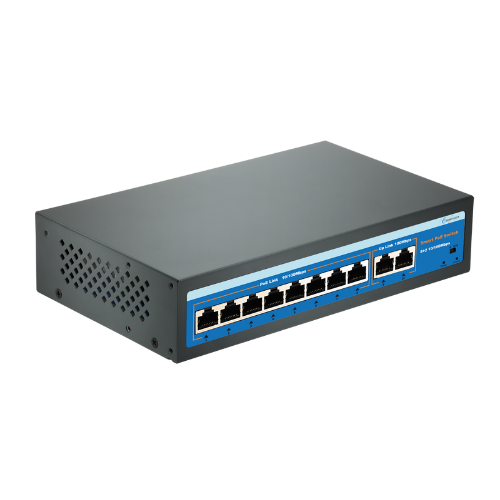

EV-F0820FBL-A | 8 Port PoE+ Switch
-with 250m Transmission & Isolated VLAN
The EV-F0820FBL-A is an 8-port PoE+ switch featuring 250m long-distance transmission, isolated VLAN function, 120W total power, and 100Mbps uplink ports for robust network deployment.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
8 Port PoE & Up-Link Port
Key Features
- 8*100mbps POE ports
- 2*100mbps uplink ports
- With PoE port isolated VLAN function
- 250 metres long-distance transmission function
Specification
The electric feature
| No. | Project | Minimum | Regular | Maximum | Unit | Note |
| 1 | Input Voltage | 110 | 220 | 240 | Vac | |
| 2 | Input Frequency | 47 | 50 | 63 | Hz | |
| 3 | Input Current | 2.5 | A | |||
| 4 | Standby Power Consumption | 3 | W | Camera Not Connected or Loaded | ||
| 5 | Electric Shock | 100 | A | AC input 110Vac，Cold Start |
3.2 The property of switch network
List 2: Network property
| No. | Project | Index of Performance |
| 1 | POE Protocol | IEEE802.3,IEEE802.3u,IEEE802.3x, |
| 2 | Network Medium | 10/100/1000BASE-TX: Category 5 and above unshielded twisted pair |
| 3 | Data Distance | ≤250M |
| 4 | Switch Capability | 1.6Gbps |
| 5 | Forwarding Rate | 10BASE-tx:14880pps/port
100BASE-tx：148800pps/port |
| 6 | MAC Address | 2K |
| 7 | Port Function | Power priority mechanism, fast and forward, MAC automatic learning and aging
IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
| 8 | Forwarding Rate of Packet | 1.19Mpps |
3.3 The property of PoE power supply
List 3: The property of PoE power supply
| No. | Project | Index of Performance |
| 1 | Network Standard | IEEE 802.3af/at |
| 2 | Output Power of PoE Port | Single Port≤30W |
| 3 | PoE Output Voltage | DC52V±5% |
| 4 | PoE Power Pin | 1/2+、3/6- |
| 6 | POE Power Distance | ≤250m |
| 7 | Network Medium | 10/100/1000BASE-TX: Category 5 and above unshielded twisted pair |
| 8 | Whole Power | MAX: 120W |
4.Safety Requirements
List 4: Safety requirements sheet
| Project | Technical Index | conform or not | Note |
| Safety | UL60950(60065) | £ Yes R No | |
| IEC/EN60065(60950) | £ Yes R No | ||
| GB4943 | £ Yes R No |
EV-F0820FBL-A | 8 Port PoE+ Switch with 250m Transmission & Isolated VLAN
Product Overview
The EV-F0820FBL-A is a specialized 8-port PoE+ switch engineered for extended distance network deployments with advanced security features. The EV-F0820FBL-A delivers exceptional performance with 8×100Mbps PoE+ ports capable of supporting up to 250 meters of transmission distance, making it ideal for large-area installations. This switch features two 100Mbps uplink ports and incorporates PoE port isolated VLAN functionality for enhanced network security and traffic management. With a robust 120W total power budget, IEEE 802.3af/at compliance, and 30W maximum power per port, the EV-F0820FBL-A ensures reliable operation for IP cameras, access points, and other PoE devices in demanding environments. The switch’s extended transmission capability and security features make it perfect for surveillance systems.
