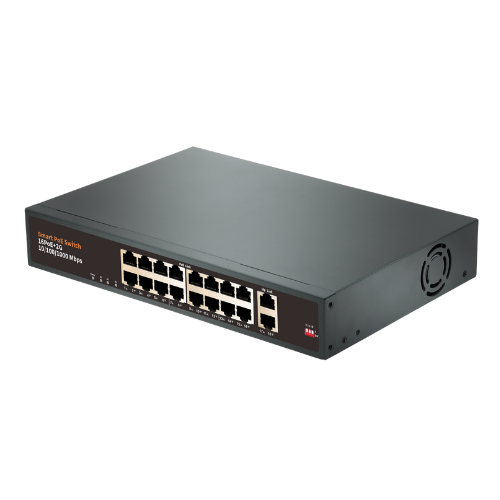

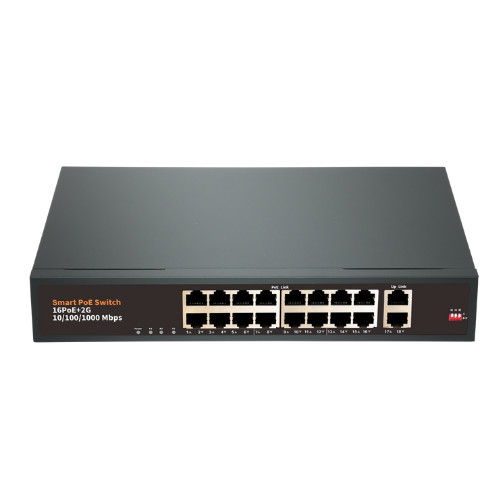

EV-G1620GBL-A | 16 Port PoE+ Switch
-with 250W Power & Gigabit Uplink
The EV-G1620GBL-A is a 16 port PoE+ switch featuring 250W total power, 30W per port, and 2 gigabit uplink ports for robust network and power delivery.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
Key Features
- 16*10/100/1000Mbps RJ45 port（support POE+）
- 2*10/100/1000Mbps RJ45 uplink port
- The whole power is 250W，each port max. power supply reached 30W
- The POE port supports the priority mechanism.
Specification
| Network Standard | IEEE 802.3、IEEE 802.3u、IEEE 802.3x, IEEE 802.ab, IEEE 802.AF/AT |
| Port | 16*10/100/100Mbps RJ45 port
2*10/100/1000Mbps RJ45 uplink port
|
| POE power | 16*10/100/100Mbps RJ45 port support POE+
The whole power max. is 250W Each port max. power supply reached 30W |
| POE Connection | 1-16 port support IEEE802.3af/at
Both1/2+、3/6- and 4/5+、7/8- End-span |
| Performance | Store and forward
MAC address table 4k Switching capacity16Gbps |
| Forwarding Rate | 10BASE-T:14880PPS/port
100BASE-tx：148800pps/port 1000BASE-tx：1488000pps/port |
| Port Function | Power priority mechanism, fast and forward, MAC automatic
learning and aging IEEE802.3X Full-duplex and backpressure for half-duplex mode |
| Environment | Operating Temperature：-10℃ – -55℃ |
| Power | Built in power base board
Input：220V，50HZ，Output：DC52V±5% 4.8A ≤250W |
| Weight &Size | 2.1KG
270mm×180mm×44mm(L×W×H) |
EV-G1620GBL-A | 16 Port PoE+ Switch with 250W Power & Gigabit Uplink
Product Overview
The EV-G1620GBL-A is a high-performance 16-port PoE+ switch designed for professional network deployments requiring both data and power delivery. The EV-G1620GBL-A features 16×10/100/1000Mbps RJ45 ports that support PoE+ functionality, delivering up to 30W per port with a substantial total power budget of 250W. This robust switch includes two additional 10/100/1000Mbps gigabit uplink ports for high-speed network backbone connections. The EV-G1620GBL-A incorporates intelligent power priority management, ensuring critical devices maintain operation during high power demands. With a 16Gbps switching capacity, 4K MAC address table, and support for IEEE 802.3af/at standards, this switch is ideal for powering and connecting multiple devices such as IP cameras, wireless access points, VoIP phones, and other PoE-enabled equipment in commercial, industrial, and surveillance applications.
