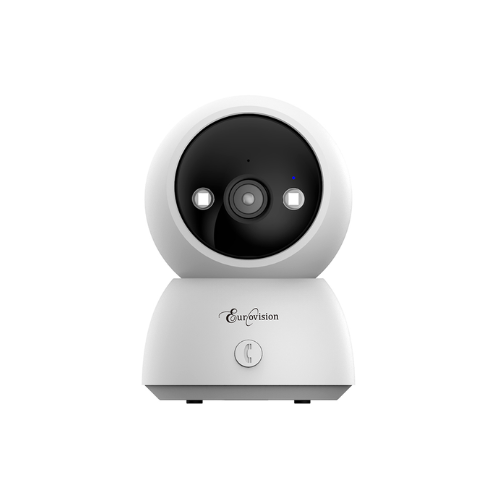

EV-H750WF | 3MP Smart WiFi PT Camera
-with Human Detection & Dual-Light Night Vision
The EV-H750WF is a 3MP smart WiFi pan-tilt IP camera featuring AI human detection, 360° coverage, dual-light night vision, and two-way audio for complete home security.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
Key Features
- ✅ Ultra-Clear 3MP Resolution – 2304×1296 @ 20fps for high-quality video.
- ✅ Human Detection – AI-powered motion tracking to reduce false alarms.
- ✅ Dual-Light Night Vision – Infrared and white light for full-color night monitoring.
- ✅ Pan & Tilt Function – Full 360° horizontal and 110° vertical rotation.
- ✅ Two-Way Audio – Built-in Mic & Speaker for live communication.
- ✅ Smart WiFi Connectivity – Wireless setup for flexible installation.
- ✅ ONVIF & SLINK Support – Compatible with multiple security systems.
- ✅ Expandable Storage – TF card slot supports up to 512GB local storage.
- ✅ Energy-Efficient & Low Latency – Uses S265 compression for efficient bandwidth usage.
Specification
| Specification | |
|---|---|
| Model | EV-H750WF |
| Smart Function | Human detection |
| Main Chipset | T31N |
| Image Sensor | 1/2.9″, 3MP progressive scan ultra-low illumination CMOS GC4053 |
| Effective Pixels | 3MP |
| Min. Illumination | Color: 0.1Lux@F1.2; B&W: 0Lux@F1.2 (IR on) |
| Lens | F1.6 3.6mm |
| IR Distance | 10-15M (2pcs dual light) |
| Noise Reduction | 3D noise reduction |
| WDR | DWDR (off / low / medium / high) |
| Mirror | Off / horizontal mirroring / vertical mirroring / 180° rotation |
| Image Setting | Brightness / contrast / sharpness / saturation / chroma |
| Human Detection | |
| Responding Speed | ≤1s |
| Maximum Detection Frame Rate | 5fps/s (color image) |
| Detection Area | Support specified area, default full screen |
| Shielded Area | Support 4 areas setting |
| Upload Method | Private protocol upload |
| Trigger Method | Video trigger |
| Video and Audio Coding | |
| Encoding Format | S265/H.265/H.264 |
| Coding Characteristics | Main stream: 3MP 2304X1296@20fps, 2MP 1920×1080@25fps Sub stream: D1 (720*576), VGA (640*480), Q720P (640*360) |
| Video Bit Rate | Fixed bit rate, variable bit rate (16Kbps-4000kbps) |
| Video Type | Composite stream / video stream |
| Audio Coding Standard | G.711U/64Kbps |
| Network Function | |
| Network Protocol | TCP/IP, HTTP, DHCP, RTSP |
| Interface Protocol | ONVIF |
| Port | |
| Network Interface | RJ45 10M/100M network adaptive |
| PoE | / |
| Audio | Built-in Mic & Speaker |
| TF Slot | Up to 512G, Micro SD (EXT3/EXT4) card local storage |
| WiFi | Support WiFi |
| General | |
| Operation T/H | -20°C ~ 50°C / 0%-90% |
| Waterproof | / |
| Power Supply | DC5V |
| Power Consumption | <10W (MAX) |
| Dimension (mm) | Equipment: 75(W) × 110(H) × 75(L) mm Packing: 76(W) × 150(H) × 80(L) mm |
| Weight/PCS (g) | N.W.: 216g Packing: 310g |
| Outside Carton | 50pcs/carton; 410mm(W) × 325mm(H) × 405mm(L); Weight: 16kg |
EV-H750WF | 3MP Smart WiFi PT Camera with Human Detection & Dual-Light Night Vision
Product Overview
The EV-H750WF is an advanced 3MP smart WiFi pan-tilt camera designed for comprehensive indoor security with intelligent monitoring capabilities. The EV-H750WF delivers ultra-clear 3MP resolution video and features AI-powered human detection technology that accurately distinguishes people from other motion, significantly reducing false alarms. With full 360° horizontal and 110° vertical rotation, this camera provides complete room coverage without blind spots. The dual-light night vision system combines infrared and white LED lights to deliver full-color monitoring in low-light conditions. Featuring two-way audio with built-in microphone and speaker, WiFi connectivity for easy installation.
