Key Features
- 1/ 2.9″ CMOS Sensor
- Resolution:1920×1080
- IR Range 30 Meter.
- Support Digital Wide Dynamic Range
- Ingress Protection IP66
01894-821851
No products in the cart.
-with 30m IR & IP66

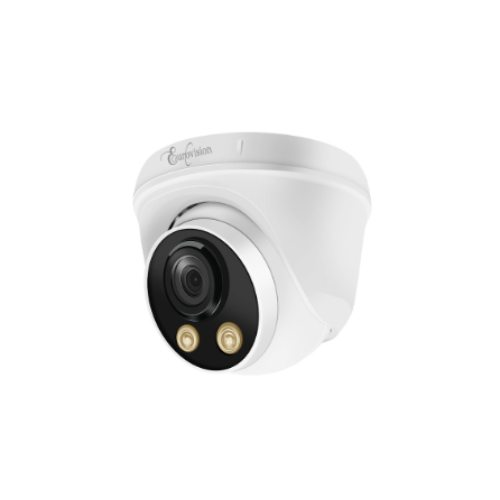

The EV-HD-FC130D is a 2MP HD dome camera featuring built-in audio, 30m IR night vision, IP66 rating, and digital WDR for comprehensive indoor/outdoor security.
Shipping calculated at checkout.
Feel free to Get in touch
Key Features
| Image Sensor | 1/ 2.9″ CMOS Sensor |
| Image Resolution | 1920×1080 |
| Effective Pixels | 2.0MP |
| TV System | PAL/NTSC |
| Electronic Shutter | 1/10s~1/100,000s |
| S/N Ratio | ≥50dB |
| Scanning System | Progressive Scan |
| Lens | |
| Lens | Board Lens 3.6mm/F2.0 |
| Lens Type | Fixed |
| Auto Iris Support | N/A |
| Night Vision | |
| Infrared SMD LED | 2 PCS Array Led |
| Infrared Distance | 30m |
| IR Cut Filter | Yes |
| IR Status | Under 10 Lux by CDS |
| IR Power On | CDS Auto Control |
| Day & Night | Auto (ICR) / Color / B&W |
| Camera Features | |
| OSD Menu Language | Optional |
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 3D DNR |
| Picture Adjustment | N/A |
| WDR | Yes |
| OSD Support | Optional |
| UTC | Optional |
| General | |
| Housing | Plastic |
| Bracket | Yes |
| Operation Temperature | -100C ~ 500C Rh 95% Max |
| Storage Temperature | -200C ~ 600C Rh 95% Max |
| Power Source | DC12V±10%,230mA |
| Dimension | 180x75x85mm |
| Weight | ≤350g |
The EV-HD-FC130D is a versatile 2MP HD dome camera designed for comprehensive security monitoring with audio capabilities and weather-resistant performance. The EV-HD-FC130D delivers clear 1080p HD imaging with its 1/2.9″ CMOS sensor and features two array IR LEDs that provide reliable night vision up to 30 meters. This camera includes audio functionality for enhanced security monitoring and is housed in a discreet dome design that blends seamlessly into various environments. With digital wide dynamic range (WDR) technology and 3D digital noise reduction, the EV-HD-FC130D maintains excellent image quality in challenging lighting conditions.
