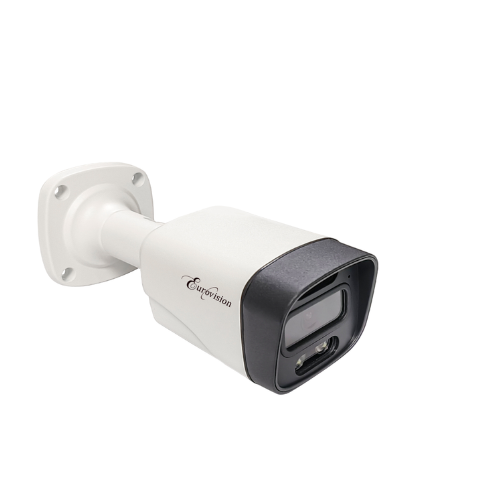

EV-IPC-DL12B | 3MP Outdoor Bullet Camera
-with Human Detection & Dual Light
The EV-IPC-DL12B is a 3MP outdoor bullet IP camera featuring advanced human detection, dual light night vision, built-in microphone, and IP66 weatherproof rating.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
Key Features
- Resolution up to 3MP(2304X1296@20fps), 2MP(1920×1080@25fps)
- Built-in human detection algorithm, support human detection in complex environments
- Support low bit rate and low latency
- S265 efficient compression, saving bandwidth and storage space
- Support dual light night vision
- ICR filter-type automatic switching for real day and night monitoring
- Support built-in Microphone
- Support 3D digital noise reduction
- Support automatic electronic shutter function to adapt to different monitoring environments
- Support ONVIF, SLINK protocol
Specification
| Basic Parameter | ||||||||
| Model | EV-IPC-DL12B | |||||||
| Smart Function | Human detection | |||||||
| Main Chipset | T31N | |||||||
| Image Sensor | 1/2.9″, 2MP progressive scan ultra-low illumination CMOS GC2053 | |||||||
| Effective Pixels | 3MP | |||||||
| Min. Illumination | Color：0.1Lux@F1.2; B&W：0Lux@F1.2(IR on) | |||||||
| Lens | F1.6 4mm | |||||||
| IR Distance | 15-20M (4 lamps) | |||||||
| Noise Reduction | 3D noise reduction | |||||||
| WDR | DWDR (off / low / medium / high) | |||||||
| Mirror | Off / horizontal mirroring / vertical mirroring / 180 ° rotation | |||||||
| Image Setting | Brightness / contrast / sharpness / saturation / chroma | |||||||
| Human Detection | ||||||||
| Responding Speed | ≤1s | |||||||
| Maximum Detection Frame Rate | 5fps/s (color image) | |||||||
| Detection Area | Support specified area, default full screen | |||||||
| Shielded Area | Support 4 areas setting | |||||||
| Upload Method | Private protocol upload | |||||||
| Trigger Method | Video trigger | |||||||
| Video and Audio Coding | ||||||||
| Encoding Format | S265/H.265/H.264 | |||||||
| Coding Characteristics | Main stream: 3MP 2304X1296@20fps, 2MP 1920×1080@25fps Sub stream: D1(720*576), VGA(640*480), Q720P(640*360) |
|||||||
| Video Bit Rate | Fixed bit rate, variable bit rate(1280kbps-4Mbps) | |||||||
| Video Type | Composite stream / video stream | |||||||
| Audio Coding Standard | G.711U/64Kbps | |||||||
| Network Function | ||||||||
| Network Interface | 1*RJ45 10M/100M self-adaptive LAN port | |||||||
| Network Protocol | TCP/IP, UDP, HTTP, DHCP, RTSP, NTP | |||||||
| Interface Protocol | ONVIF | |||||||
| Port | ||||||||
| Network Interface | RJ45 10M/100M network adaptive | |||||||
| PoE | / | |||||||
| Audio | Built-in Microphone | |||||||
| General | ||||||||
| Operation T/H |  – 20°C ~ 55°C / 0﹪-90﹪ | |||||||
| Waterproof | IP66 | |||||||
| Power Supply | DC12V | |||||||
| Power Consumption | <10W (MAX) | |||||||
| Dimension (mm) | Equipment: 68(W)×68(H)×185(L)mm (with bracket) Packing: 105mm(W)×92mm(H)200mm(L) |
|||||||
| Weight/PCS (g) | N.W.: 300g   Packing: 400g | |||||||
| Outside Carton | 45pcs/carton; 615mm×540mm×300mm; Weight: 19kg | |||||||
EV-IPC-DL12B | 3MP Outdoor Bullet Camera with Human Detection & Dual Light
Product Overview
The EV-IPC-DL12B is an intelligent 3MP outdoor bullet camera designed for reliable security monitoring with advanced detection capabilities. The EV-IPC-DL12B delivers high-quality imaging with its 3MP resolution and features precise human detection technology that accurately distinguishes people from other movement in complex environments. This camera utilizes dual-light technology for effective night vision up to 20 meters and includes a built-in microphone for audio monitoring. With its IP66 weatherproof rating, efficient S265 compression, and ONVIF compatibility, the EV-IPC-DL12B offers a cost-effective security solution for residential and commercial outdoor applications. The camera’s 3D digital noise reduction and automatic electronic shutter ensure clear imaging in various lighting conditions, making it ideal for perimeter security, entrance monitoring, and property protection.
