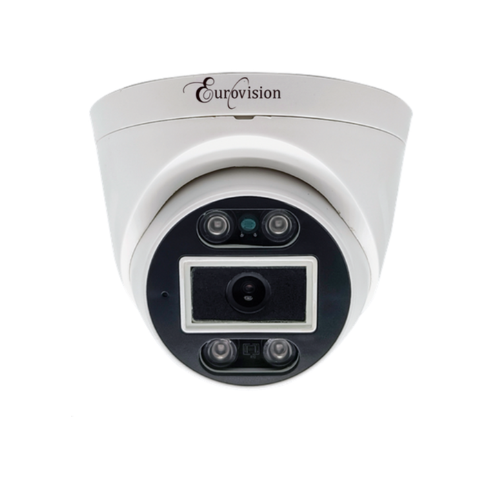

EV-IPC-FC20DMS | 3MP Full-Color Dual-Light Camera

-Audio Dome IP Camera

The EV-IPC-FC20DMS is a 3MP IP dome camera featuring true full-color night vision, 30m dual-light illumination, two-way audio, and 120dB WDR for superior image clarity day and night.

22 people are viewing this product right now

Shipping calculated at checkout.

Estimated delivery:5 days

Have any Questions?

Feel free to Get in touch

Guarantee Safe and Secure Payment Checkout

Key Features

  • High-quality imaging with Default 3MP resolution/ Max 2560*1440
  • Full-Color (Night Vision Color)
  • Noise-free Microphone + Speaker (Audio Support)
  • Clear imaging against strong backlight due to 120 dB true WDR technology
  • Efficient H.265+ compression technology
  • 3D DNR technology delivers clean and sharp images
  • Full-Color (Dual light) IR Up to 30 Meters
  • Supports iOS/Android
  • Low illumination camera
Specification
Image Sensor 1/3″, 5 Megapixel progressive scan CMOS
Max Resolution 2560*1440
Effective Pixels 3.0MP
Compression Standard H.265 / H.264
SNR(dB) 38dB
Bit Rate 128Kbps~8Mbps
Illumination 0Lux (IR ON)
Wide Dynamic Range 120 dB
Lens
Lens 4mm/6mm
Viewing Angle 3.6 mm: 96°
IR-Distance Up to 30 Meters
Illuminator
Wavelength 850nm
Smart Supplement Light Yes
Supplement IR – Light -White LED Full-Color
Video & audio
Max. Resolution 2560*1440
Video Compression Mainstream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
audio mic + speaker
H.265 Main Stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) Yes
Region Of Interest (ROI) 1 fixed region for each stream
Function
Motion Detection Support
Email Alert Support
Full-Color; Color Night-vision Support 30 Meter
Recording Support (NVR, Windows PC, Smartphone)
DHCP Support
FTP NA
Pan/Tilt NA
SD-Card NA
Privacy Mask Support up to 4 areas
Exposure Control Support
Image Adjustment Support
Auto. White Balance Support
Image Rotation Support (Mirror/Flip)
Network
Ethernet 10M/100M Ethernet, RJ45 Port
Protocols HTTP, TCP/IP,UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
Stream 2x Streams
Wi-Fi Not Supported
LAN Support
User Up to 10 Users
Browser IE8+, Chrome18+ ~ 42-
Smart Phone iOS/Android
General
Dimensions(W*H*D) Φ70*165.1mm
Weights 450g
Material Plastic
Working Temperature -20°C~60°C
Humidity RH 10%~90%
Power Supply DC12V/1A, PoE (Optional)
Consumption Day ≦2W  Night ≦ 6W
Waterproof NA

EV-IPC-FC20DMS | 3MP Full-Color Dual-Light Audio Dome IP Camera

Product Overview

The EV-IPC-FC20DMS is a versatile 3MP dome camera designed to deliver vibrant, full-color video around the clock. The EV-IPC-FC20DMS achieves exceptional low-light performance with its dual-light system, combining infrared and white LED lights to provide clear, noise-free color video at distances up to 30 meters, even in total darkness. It is equipped with 120dB True Wide Dynamic Range (WDR) to balance scenes with harsh backlighting and features two-way audio with a built-in microphone and speaker. Supporting efficient H.265 compression and a wide 96° viewing angle, the EV-IPC-FC20DMS is a comprehensive security solution for maintaining detailed, full-color surveillance in challenging lighting conditions.
