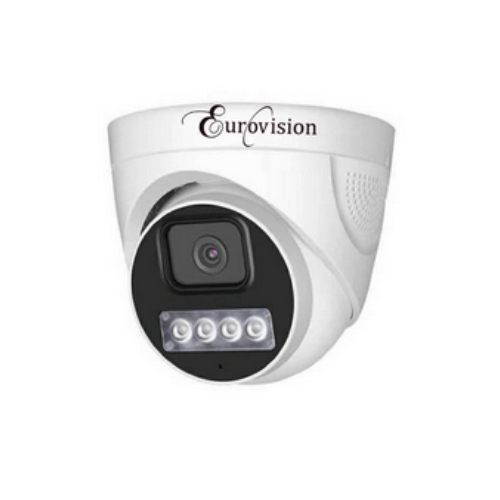

EV-IPC-IR10DV1 | 3MP IP66 Outdoor Dome Camera
-with 30m IR & 120dB WDR
The EV-IPC-IR10DV1 is a rugged 3MP outdoor dome IP camera featuring IP66 weatherproof rating, 30m IR night vision, 120dB WDR, and H.265+ compression for 24/7 security.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
Key Features
- High-quality imaging with 3.0MP resolution
- Low-light performance with powered-by-Dark Fighter technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Water (IP66) and dust resistant (IP66)
- 3D DNR technology delivers clean and sharp images
- IR Up to 30 Meters
- Supports iOS/Android
- Low illumination camera
Specification
| Image Sensor | 1/ 2.9” CMOS |
| Max Resolution | Min- 1920 X 1080 and Max 2560 x 1440 |
| Effective Pixels | 3.0MP |
| Compression Standard | H.265 / H.264 |
| Maximum Frame Rate | 1960p@25fps |
| SNR(dB) | 38dB |
| Bit Rate | 128Kbps～8Mbps |
| Illumination | 0Lux (IR ON) |
| Wide Dynamic Range | 120 dB |
| Lens | |
| Lens | 3.6mm (2.8/4/6- Optional) |
| Viewing Angle | 3.6 mm: 96° |
| IR-Distance | Up to 30 Meters |
| Illuminator | |
| Wavelength | 850nm |
| Smart Supplement Light | Yes |
| Supplement Light | IR |
| Video | |
| Max. Resolution | 2048 x 1536 |
| Main Stream | 50Hz: 25fps (2048 x 1536, 1920 × 1080, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240) 60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240) |
| Video Compression | Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main Stream supports |
| H.265+ | Main Stream supports |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | Yes |
| Region Of Interest (ROI) | 1 fixed region for each stream |
| Function | |
| Motion Detection | Support |
| Email Alert | Support |
| Day& Night | Support |
| Recording | Support (NVR, Windows PC, Smartphone) |
| DHCP | Support |
| FTP | Not Supported |
| Pan/Tilt | Not Supported |
| SD-Card | Not Supported |
| Privacy Mask | Support up to 4 areas |
| Exposure Control | Support |
| Image Adjustment | Support |
| Auto. White Balance | Support |
| Image Rotation | Support (Mirror/Flip) |
| Network | |
| Ethernet | 10M/100M Ethernet, RJ45 Port |
| Protocols | HTTP, TCP/IP,UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| Stream | 2x Streams |
| Wi-Fi | Not Supported |
| LAN | Support |
| User | Up to 3 Users |
| Browser | IE8+, Chrome18+ ~ 42- |
| Smart Phone | iOS/Android |
| General | |
| Dimensions(W*H*D) | Φ70*165.1mm |
| Weights | 450g |
| Material | Plastic |
| Working Temperature | -20°C～60°C |
| Humidity | RH 10%～90% |
| Power Supply | DC12V/1A, PoE (Optional) |
| Consumption | Day ≦2W Night ≦ 6W |
| Waterproof | IP66 |
EV-IPC-IR10DV1 | 3MP IP66 Outdoor Dome Camera with 30m IR & 120dB WDR
Product Overview
The EV-IPC-IR10DV1 is a robust 3MP outdoor dome camera engineered for reliable 24/7 surveillance in all environmental conditions. The EV-IPC-IR10DV1 delivers exceptional image clarity with its 3.0MP resolution and advanced Dark Fighter technology for superior low-light performance. Built to withstand the elements, it boasts an IP66 rating for complete dust and water resistance. With powerful infrared illumination reaching up to 30 meters and 120dB True WDR to balance extreme lighting contrasts, the EV-IPC-IR10DV1 ensures critical details are captured clearly, day or night. Supporting efficient H.265 compression and compatible with iOS/Android devices, this camera is an ideal solution for perimeter security, parking lots, and building exteriors.
