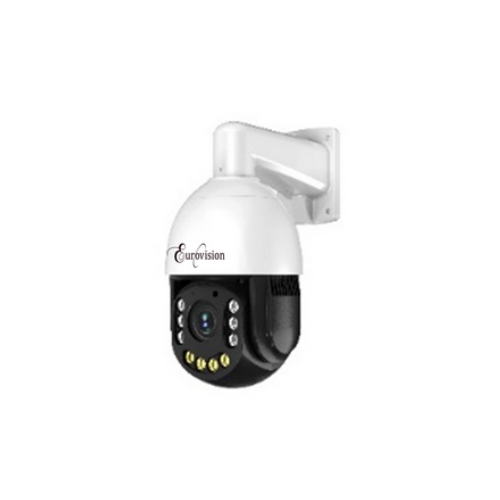

EV-IPC-PTZ30V-DL | 5MP Full-Color 30X PTZ Camera
-with 150m IR & Audio
The EV-IPC-PTZ30V-DL is a 5MP full-color PTZ IP camera featuring 30X optical zoom, 150m IR night vision, built-in audio, and IP67 rating for panoramic surveillance.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
Key Features
- low-light performance with powered-by-DarkFighter technology
- support Mic and Speaker, DC12V 4A power supply
- T31X+GC4653 5MP 6 inch PTZ IPC, 30X
- lens:4.5mm-135mm, dual light
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Water and dust resistant (IP66); -I: Water and dust resistant (IP67)
- 3D DNR technology delivers clean and sharp images
- IR Up to 150 Meters
- Supports iOS/Android
- Low illumination camera
Specification
| Image Sensor | 1/ 2.9” CMOS | |
| Max Resolution | Min- 1920 X 1080 and Max 2560 x 1440 | |
| Effective Pixels | 5.0MP | |
| Compression Standard | H.265 / H.264 | |
| Maximum Frame Rate | 30fps | |
| SNR(dB) | 38dB | |
| Bit Rate | 128Kbps～8Mbps | |
| Illumination | 0Lux (IR ON) | |
| Wide Dynamic Range | 120 dB | |
| Lens | ||
| Lens | lens:4.5mm-135mm, | |
| Viewing Angle | Depend on Zoom | |
| IR-Distance | Up to 150 Meters | |
| Illuminator | ||
| Wavelength | 850nm | |
| Smart Supplement Light | Yes | |
| Supplement Light | IR | |
| Video | ||
| Max. Resolution |
|
|
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 720) | |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) | |
| Third Stream | 50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240) 60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240) | |
| Video Compression | Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 | |
| Video Bit Rate | 32 Kbps to 8 Mbps | |
| H.264 Type | Baseline Profile/Main Profile/High Profile | |
| H.265 Type | Main Profile | |
| H.264+ | Main Stream supports | |
| H.265+ | Main Stream supports | |
| Bit Rate Control | CBR/VBR | |
| Scalable Video Coding (SVC) | Yes | |
| Region Of Interest (ROI) | 1 fixed region for each stream | |
| Function | ||
| Motion Detection | Support | |
| Email Alert | Support | |
| Day& Night | Support | |
| Recording | Support (NVR, Windows PC, Smartphone) | |
| DHCP | Support | |
| FTP | Not Supported | |
| Pan/Tilt | Not Supported | |
| SD-Card | Not Supported | |
| Privacy Mask | Support up to 4 areas | |
| Exposure Control | Support | |
| Image Adjustment | Support | |
| Auto. White Balance | Support | |
| Image Rotation | Support (Mirror/Flip) | |
| Network | ||
| Ethernet | 10M/100M Ethernet, RJ45 Port | |
| Protocols | HTTP, TCP/IP,UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS | |
| Stream | 2x Streams | |
| Wi-Fi | Not Supported | |
| LAN | Support | |
| User | Up to 3 Users | |
| Browser | IE8+, Chrome18+ ~ 42- | |
| Smart Phone | iOS/Android | |
| General | ||
| Dimensions(W*H*D) | Φ70*165.1mm | |
| Weights | 4kg | |
| Material | Metal | |
| Working Temperature | -20°C～60°C | |
| Humidity | RH 10%～90% | |
| Power Supply | DC12V/1A, PoE (Optional) | |
| Consumption | Day ≦2W Night ≦ 6W | |
| Waterproof | IP67 | |
EV-IPC-PTZ30V-DL | 5MP Full-Color 30X PTZ Camera with 150m IR & Audio
Product Overview
The EV-IPC-PTZ30V-DL is a professional-grade 5MP PTZ camera designed for comprehensive panoramic surveillance with exceptional zoom capabilities. The EV-IPC-PTZ30V-DL delivers superior imaging with its 5MP resolution and powerful 30X optical zoom (4.5mm-135mm lens) that allows for detailed monitoring of distant subjects. Featuring advanced DarkFighter technology for outstanding low-light performance, this camera provides full-color imaging and infrared illumination extending up to 150 meters. With built-in microphone and speaker for two-way audio, 120dB WDR for challenging lighting conditions, and IP67 weatherproof rating, the EV-IPC-PTZ30V-DL is ideal for large area monitoring, perimeter security, and applications requiring both wide-angle coverage and detailed zoom capabilities.
