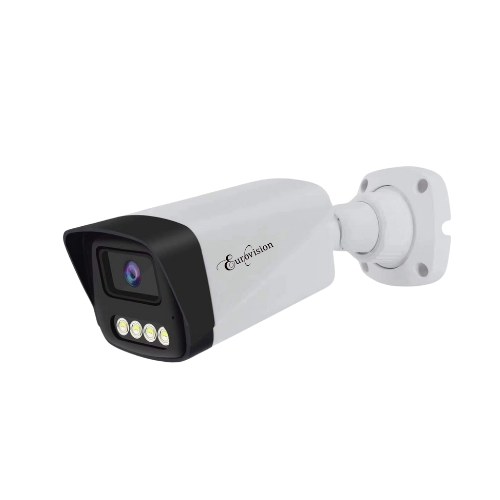

EV-IPC13B-AK | 3MP Outdoor Bullet Camera
-with Human Detection & Dual Light Vision
The EV-IPC13B-AK is a 3MP outdoor bullet IP camera featuring human detection, 40m dual light night vision, built-in mic, and IP66 weatherproof rating for reliable security monitoring.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
Key Features
- 3MP High-Resolution Imaging
- Human Detection
- Dual Light Night Vision
- Built-in mic
- Power over Ethernet (PoE)
- Efficient Compression
- Weatherproof (IP65)
- ONVIF Compatible
- Motion Detection Alerts
pecification
| Model | EV-IPC13B-AK | |||||||
| Smart Function | Human detection | |||||||
| Main Chipset | T31N | |||||||
| Image Sensor | 1/2.9″,3MP progressive scan ultra-low illumination CMOS GC4053 | |||||||
| Effective Pixels | 3MP | |||||||
| Min. Illumination | Color：0.1Lux@F1.2; B&W：0Lux@F1.2(IR on) | |||||||
| Lens | F1.6 4mm | |||||||
| IR Distance | 20-40M (4 dual light) | |||||||
| Noise Reduction | 3D noise reduction | |||||||
| WDR | DWDR (off / low / medium / high) | |||||||
| Mirror | Off / horizontal mirroring / vertical mirroring / 180 ° rotation | |||||||
| Image Setting | Brightness / contrast / sharpness / saturation / chroma | |||||||
| Human Detection | ||||||||
| Responding Speed | ≤1s | |||||||
| Maximum Detection Frame Rate | 5fps/s (color image) | |||||||
| Detection Area | Support specified area, default full screen | |||||||
| Shielded Area | Support 4 areas setting | |||||||
| Upload Method | Private protocol upload | |||||||
| Trigger Method | Video trigger | |||||||
| Video and Audio Coding | ||||||||
| Encoding Format | S265/H.265/H.264 | |||||||
| Coding Characteristics | Main stream: 3MP 2304X1296@25fps, 2MP 1920×1080@25fps Sub stream:D1(720*576), VGA(640*480), Q720P(640*360) |
|||||||
| Video Bit Rate | Fixed bit rate, variable bit rate(1280kbps-4Mbps) | |||||||
| Video Type | Composite stream / video stream | |||||||
| Audio Coding Standard | G.711U/64Kbps | |||||||
| Network Function | ||||||||
| Network Interface | 1*RJ45 10M/100M self-adaptive LAN port | |||||||
| Network Protocol | TCP/IP, UDP, HTTP, DHCP, RTSP, NTP | |||||||
| Interface Protocol | ONVIF | |||||||
| Port | ||||||||
| Network Interface | RJ45 10M/100M network adaptive | |||||||
| PoE | Optional | |||||||
| Audio | Built-in Mic | |||||||
| General | ||||||||
| Operation T/H |  – 20°C ~ 50°C / 0﹪-90﹪ | |||||||
| Waterproof | IP66 | |||||||
| Power Supply | DC12V / PoE | |||||||
| Power Consumption | <10W (MAX) | |||||||
| Dimension (mm) | Equipment: 73.55(W)×64.8(H)×200.2(L)mm (with bracket) Packing: 105mm(W)×92mm(H)210mm(L) |
|||||||
| Weight/PCS (g) | N.W.: 230g   Packing: 280g | |||||||
| Outside Carton | 45pcs/carton; 615mm×540mm×300mm; Weight: 13kg | |||||||
EV-IPC13B-AK | 3MP Outdoor Bullet Camera with Human Detection & Dual Light Vision
Product Overview
The EV-IPC13B-AK is a versatile 3MP outdoor bullet camera designed for intelligent surveillance with advanced detection capabilities. The EV-IPC13B-AK delivers high-quality imaging with its 3MP resolution and innovative dual-light system that provides clear night vision up to 40 meters. This camera features precise human detection technology to minimize false alarms and ensure accurate security alerts. With its IP66 weatherproof rating, built-in microphone for audio monitoring, and support for both DC12V and optional PoE power options, the EV-IPC13B-AK offers a comprehensive security solution for residential and commercial outdoor applications. The camera’s efficient H.265 compression and ONVIF compatibility make it an ideal choice for perimeter security, driveway monitoring, and property protection.
