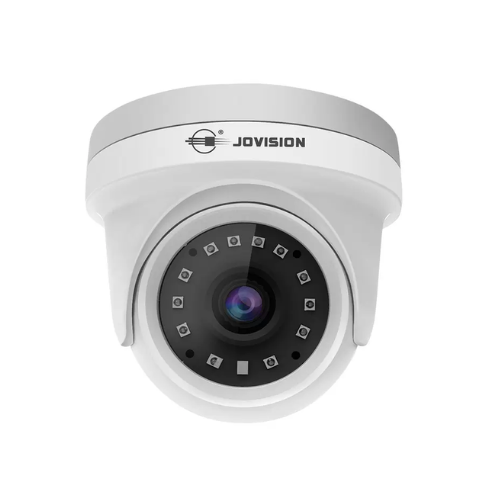

JVS-A430-YWC | 4MP Dome HD Camera
-with 25m IR & AHD Output
The JVS-A430-YWC is a 4MP dome HD camera featuring 2688×1520 resolution, 25m IR night vision, AHD transfer, and 3D-DNR for superior low-light performance.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
Key Features
• 1/3″ 4.0MP CMOS Sensor
• Support AHD High-Definition transfer
• Resolution:2688×1520
• Long Distance, No delay
• OSD/UTC menu (Optional)
• Adopt 3D-DNR, Better Low light quality
• Support ICR Auto Switch
Specifications
| Model | JVS-A430-YWC |
| Camera | |
| Image Sensor | 1/3″ CMOS Sensor |
| Image Resolution | 2688×1520 |
| Effective Pixels | 4.0MP |
| TV System | PAL/NTSC |
| Electronic Shutter | Auto |
| S/N Ratio | ≥50dB |
| Min. Illumination | 0.01Lux@ (F1.2, AGC ON) 0LUX with IR |
| Scanning System | Progressive Scan |
| Lens | |
| Lens | Board Lens 3.6mm/F2.0 |
| Lens Type | Fixed |
| Auto Iris Support | N/A |
| Night Vision | |
| Infrared SMD LED | 14µ x 12 Pcs |
| Infrared Distance | 25m. |
| IR Cut Filter | Yes |
| IR Status | Under 10 Lux by CDS |
| IR Power On | CDS Auto Control |
| Day & Night | Auto (ICR) / Color / B&W |
| Camera Features | |
| OSD Menu Language | Optional |
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 3D DNR |
| Picture Adjustment | N/A |
| WDR | Yes |
| OSD Support | Optional |
| UTC | Optional |
| General | |
| Housing | Plastic |
| Bracket | Yes |
| Operation Temperature | -10°C ~ 50°C |
| Working Humidity | 10% ~ 90% |
| Dimension | 100x85x85mm |
| Weight | ≤190g |
JVS-A430-YWC | 4MP Dome HD Camera with 25m IR & AHD Output
Product Overview
The JVS-A430-YWC is a high-resolution 4MP dome HD camera designed for superior image quality and seamless integration with analog HD systems. The JVS-A430-YWC features a 1/3″ 4.0MP CMOS sensor that delivers exceptional 2688×1520 resolution through AHD high-definition transfer, providing crystal-clear imagery without signal delay. With 12 high-power IR LEDs offering 25-meter night vision and exceptional low-light sensitivity down to 0.01Lux, this camera ensures reliable 24/7 monitoring in various lighting conditions. The JVS-A430-YWC incorporates advanced 3D digital noise reduction for improved low-light performance, ICR auto-switching for seamless day/night transition, and digital wide dynamic range for balanced imaging in challenging lighting situations. Featuring compact dimensions and lightweight design, this dome camera is perfect for residential.
