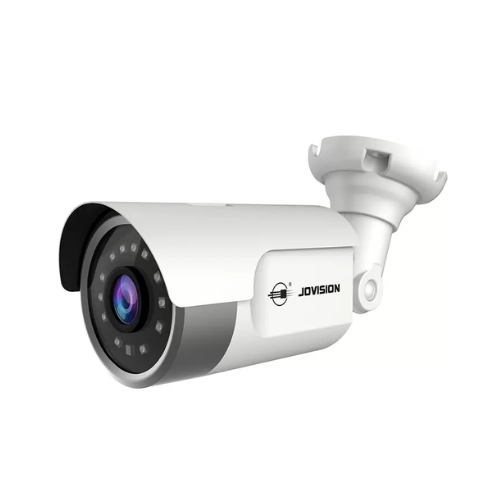

JVS-A510-YWS | 5MP Bullet HD Camera with Coaxial Output
-with Wide Voltage & Lightning Protection
The JVS-A510-YWS is a 5MP bullet HD camera featuring all-in-one coaxial output, 0Lux IR night vision, wide voltage supply, and IP66 rating for reliable surveillance.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
Key Features
• 1/ 2.5″ 5.0MP CMOS Sensor
• All-in-one coaxial HD output, clear and delicate images
• Illuminance, 0.05Lux@ (F1.6, AGC ON), 0LUX with IR
• Support OSD menu control, suitable for user-defined settings
• Adaptive Digital Noise Reduction, 2D-DNR
• Support coaxial control (UTC)
• Video 6KV lightning protection, power supply large capacitor design
• Support DC 6-15V wide voltage supply
• Ingress Protection IP66
| Model | JVS-A510-YWS | |
| Camera | ||
| Image Sensor | 1/2.5″ CMOS Sensor | |
| Image Resolution | 2704×1950 | |
| Effective Pixels | 5.0MP | |
| TV System | PAL/NTSC | |
| Electronic Shutter | Auto | |
| S/N Ratio | ≥37dB | |
| Min. Illumination | 0.05Lux@ (F1.6, AGC ON), 0LUX with IR | |
| Scanning System | Progressive Scan | |
| Lens | ||
| Lens | Board Lens 3.6mm/F1.6 | |
| Lens Type | Fixed | |
| Auto Iris Support | N/A | |
| Night Vision | ||
| Infrared SMD LED | 14µ x 18 Pcs | |
| Infrared Distance | 30m. | |
| IR Cut Filter | Yes | |
| IR Status | Under 0.1 Lux by CDS | |
| IR Power On | CDS Auto Control | |
| Day & Night | Auto (ICR) / Color / B&W | |
| Camera Features | ||
| OSD Menu Language | Optional | |
| White Balance | Auto | |
| Gain Control | Auto | |
| Noise Reduction | 2D DNR | |
| Picture Adjustment | N/A | |
| WDR | Yes | |
| OSD Support | Optional | |
| UTC | Support | |
| Starlight | Support | |
| General | ||
| Housing | Metal | |
| Bracket | Yes | |
| Operation Temperature | -10°C ~ 50°C | |
| Working Humidity | 10% ~ 90% | |
| Power Source | DC12V±10%, 230mA | |
| Dimension | 215x100x105mm | |
| Weight | ≤480g | |
JVS-A510-YWS | 5MP Bullet HD Camera with Coaxial Output & IP66 Rating
Product Overview
The JVS-A510-YWS is a high-performance 5MP bullet HD camera designed for superior image quality and reliable performance in various surveillance applications. The JVS-A510-YWS features a advanced 1/2.5″ 5.0MP CMOS sensor that delivers exceptionally clear and detailed images through all-in-one coaxial HD output, making it ideal for upgrading existing analog systems without replacing cabling. With illuminance as low as 0.05Lux in color mode and 0Lux with IR activation, this camera ensures excellent low-light performance and 24/7 monitoring capability. The JVS-A510-YWS supports OSD menu control for user-defined settings, adaptive digital noise reduction (2D-DNR) for cleaner images, and coaxial control (UTC) for easy configuration. Featuring 6KV lightning protection, DC 6-15V wide voltage supply.
