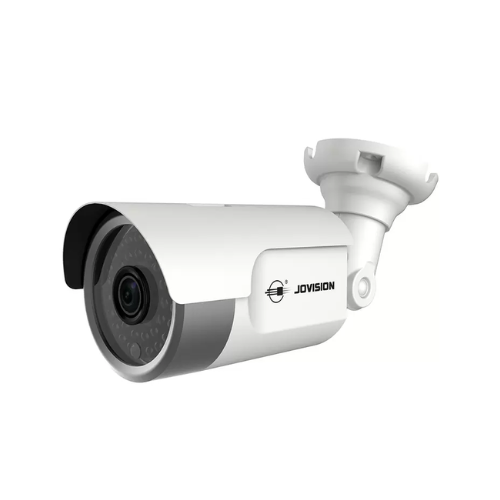

JVS-A813-YWC | 2MP Starlight Bullet HD Camera
-with 20m IR & Multi-Format Output
The JVS-A813-YWC is a 2MP starlight bullet HD camera featuring 20m IR night vision, multi-format output, IP66 rating, and starlight technology for low-light performance.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
Key Features
• 1/2.9″ 2.0MP CMOS Sensor
• Full HD resolution 1920×1080
• 15Pcs IR LEDs, IR Range 20m.
• Support TVI, AHD, CVI, CVBS output
• UTC Coaxial Control
• Easy installation, HD video transfer over coaxial cable
• Ingress Protection IP66
Specifications
| Model | JVS-A813-YWC | |
| Camera | ||
| Image Sensor | 1/2.9″ CMOS Sensor | |
| Image Resolution | 1920×1080 | |
| Effective Pixels | 2.0MP | |
| Video Format | PAL/NTSC | |
| Video Output | AHD/ TVI/ CVI/ CVBS | |
| Electronic Shutter | Auto | |
| S/N Ratio | ≥50dB (AGC Off) | |
| Min. Illumination | 0Lux (IR ON) | |
| Scanning System | Progressive Scan | |
| Lens | ||
| Lens | 4mm/F2.0 | |
| Focus control | Fixed | |
| Auto Iris Support | N/A | |
| Night Vision | ||
| Infrared SMD LED | 10µ x 15 Pcs | |
| Infrared Distance | 20m. | |
| IR Cut Filter | Yes | |
| IR Status | Under 10 Lux by CDS | |
| IR Power On | CDS Auto Control | |
| Day & Night | Auto (ICR) / Color / B&W | |
| Camera Features | ||
| OSD Menu Language | Optional | |
| White Balance | Auto | |
| Gain Control | Auto | |
| Noise Reduction | 3D DNR | |
| Picture Adjustment | Contrast, Sharpness, Saturation | |
| BLC | Support | |
| WDR | Yes | |
| OSD Support | Yes | |
| UTC | Support | |
| Starlight | Support | |
| General | ||
| Housing | Plastic | |
| Bracket | Yes | |
| Operation Temperature | -20°C ~ 60°C | |
| Working Humidity | 10% ~ 90% | |
| Power Source | DC12V±10%, 250mA | |
| Dimension | 180x75x85mm | |
| Weight | ≤230g | |
JVS-A813-YWC | 2MP Starlight Bullet HD Camera with 20m IR & Multi-Format Output
The JVS-A813-YWC is a advanced 2MP starlight bullet HD camera designed for exceptional low-light performance and versatile system compatibility. The JVS-A813-YWC delivers full HD 1920×1080 resolution with starlight technology that ensures superior image quality in challenging lighting conditions. Featuring 15 high-power IR LEDs that provide 20-meter night vision, this camera offers reliable 24/7 monitoring with automatic IR cut filter for seamless day/night transition. The JVS-A813-YWC supports multiple video formats (TVI, AHD, CVI, CVBS), making it compatible with virtually any analog or HD hybrid system without requiring cable replacement. With UTC coaxial control for easy configuration, 3D digital noise reduction, and IP66 weatherproof rating, this camera is perfect for residential, commercial.
