Key Features
• 1/2.9″ 2.0MP CMOS Sensor
• Full HD resolution 1920×1080
• 15Pcs IR LEDs, IR Range 20m.
• Support TVI, AHD, CVI, CVBS output
• UTC Coaxial Control
• Easy installation, HD video transfer over coaxial cable
01894-821851
No products in the cart.
-with 20m IR & Multi-Format Output

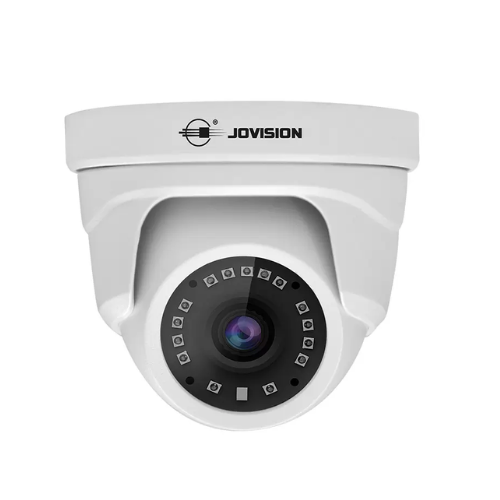

The JVS-A833-YWS is a 2MP starlight metal dome HD camera featuring 20m IR night vision, multi-format output, vandal-resistant construction, and starlight technology.
Shipping calculated at checkout.
Feel free to Get in touch
Key Features
• 1/2.9″ 2.0MP CMOS Sensor
• Full HD resolution 1920×1080
• 15Pcs IR LEDs, IR Range 20m.
• Support TVI, AHD, CVI, CVBS output
• UTC Coaxial Control
• Easy installation, HD video transfer over coaxial cable
Specifications
| Model | JVS-A833-YWS |
| Camera | |
| Image Sensor | 1/2.9″ CMOS Sensor |
| Image Resolution | 1920×1080 |
| Effective Pixels | 2.0MP |
| Video Format | PAL/NTSC |
| Video Output | AHD/ TVI/ CVI/ CVBS |
| Electronic Shutter | Auto |
| S/N Ratio | ≥50dB (AGC Off) |
| Min. Illumination | 0Lux (IR ON) |
| Scanning System | Progressive Scan |
| Lens | |
| Lens | 4mm/F2.0 |
| Focus control | Fixed |
| Auto Iris Support | N/A |
| Night Vision | |
| Infrared SMD LED | 10µ x 15 Pcs |
| Infrared Distance | 20m. |
| IR Cut Filter | Yes |
| IR Status | Under 10 Lux by CDS |
| IR Power On | CDS Auto Control |
| Day & Night | Auto (ICR) / Color / B&W |
| Camera Features | |
| OSD Menu Language | Optional |
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 3D DNR |
| Picture Adjustment | Contrast, Sharpness, Saturation |
| BLC | Support |
| WDR | Yes |
| OSD Support | Yes |
| UTC | Support |
| Starlight | Support |
| General | |
| Housing | Metal |
| Bracket | No |
| Operation Temperature | -20°C ~ 60°C |
| Working Humidity | 10% ~ 90% |
| Power Source | DC12V±10%, 250mA |
| Dimension | 110x110x90mm |
| Weight | ≤285g |
The JVS-A833-YWS is a rugged 2MP starlight metal dome HD camera designed for durability and exceptional low-light performance in demanding environments. The JVS-A833-YWS features a robust metal housing that provides superior protection against vandalism and physical tampering, making it ideal for high-security applications. With full HD 1920×1080 resolution and starlight technology, this camera delivers superior image quality in challenging lighting conditions. Featuring 15 high-power IR LEDs that provide 20-meter night vision, the JVS-A833-YWS ensures reliable 24/7 monitoring with automatic day/night transition. The camera supports multiple video formats (TVI, AHD, CVI, CVBS) for seamless integration with existing systems and features UTC coaxial control for easy configuration. With 3D digital noise reduction, wide dynamic range.
