Key Features
• 1/3″ 2.0 CMOS Sensor
• Full HD resolution 1920 x 1080
• 15Pcs IR LEDs, IR Range 20m.
• Support TVI, AHD, CVI, CVBS output
• UTC Coaxial Control
• Easy installation, HD video transfer over coaxial cable
01894-821851
No products in the cart.
-with 20m IR & Multi-Format Output

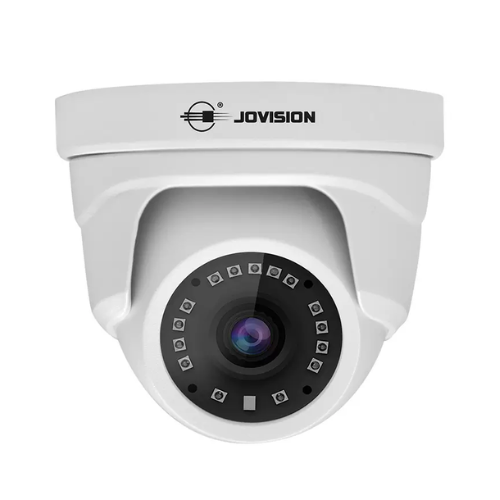

The JVS-A835-YWS is a 2MP metal dome HD camera featuring 1080p resolution, 20m IR night vision, multi-format output, and vandal-resistant metal construction.
Shipping calculated at checkout.
Feel free to Get in touch
Key Features
• 1/3″ 2.0 CMOS Sensor
• Full HD resolution 1920 x 1080
• 15Pcs IR LEDs, IR Range 20m.
• Support TVI, AHD, CVI, CVBS output
• UTC Coaxial Control
• Easy installation, HD video transfer over coaxial cable
Specifications
| Model | JVS-A835-YWS | |
| Camera | ||
| Image Sensor | 1/3″ CMOS Sensor | |
| Image Resolution | 1920×1080 | |
| Effective Pixels | 2.0MP | |
| TV System | PAL/NTSC | |
| Electronic Shutter | Auto | |
| S/N Ratio | ≥50dB | |
| Min. Illumination | 0.05Lux@ (F2.0, AGC ON), 0LUX with IR | |
| Scanning System | Progressive Scan | |
| Lens | ||
| Lens | Board Lens 4mm/F2.0 | |
| Lens Type | Fixed | |
| Auto Iris Support | N/A | |
| Night Vision | ||
| Infrared SMD LED | 10µ x 15 Pcs | |
| Infrared Distance | 20m. | |
| IR Cut Filter | Yes | |
| IR Status | Under 0.1 Lux by CDS | |
| IR Power On | CDS Auto Control | |
| Day & Night | Auto (ICR) / Color / B&W | |
| Camera Features | ||
| OSD Menu Language | Support | |
| White Balance | Auto | |
| Gain Control | Auto | |
| Noise Reduction | N/A | |
| Picture Adjustment | N/A | |
| WDR | N/A | |
| OSD Support | Not Support | |
| UTC | Support | |
| General | ||
| Housing | Metal | |
| Bracket | Yes | |
| Operation Temperature | -20°C ~ 60°C | |
| Working Humidity | 10% ~ 90% | |
| Power Source | DC12V±10%, 250mA | |
| Dimension | 110x110x90mm | |
| Weight | ≤285g | |
The JVS-A835-YWS is a rugged 2MP metal dome HD camera designed for durability and reliable performance in demanding environments. The JVS-A835-YWS features a robust metal housing that provides superior protection against physical tampering and harsh conditions, making it ideal for high-security applications. With full HD 1920×1080 resolution and multi-format support (TVI, AHD, CVI, CVBS), this camera seamlessly integrates with existing analog systems without requiring cable replacement. The JVS-A835-YWS delivers 20-meter night vision through 15 high-power IR LEDs and features exceptional low-light sensitivity down to 0.05Lux. Supporting UTC coaxial control for easy configuration and boasting a wide operating temperature range, this metal-bodied camera is perfect for industrial facilities, commercial properties.
