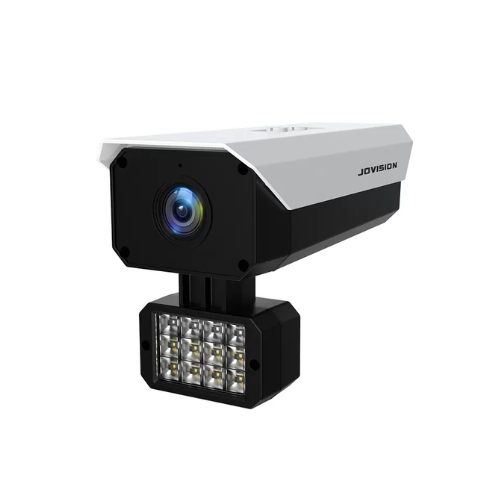

JVS-N510-LYT 5MP Smart Alarm Bullet Camera
-License Plate Detection & 50m IR
The JVS-N510-LYT is a 5MP smart alarm camera featuring license plate recognition, 12x LEDs (50m IR), AI human detection, and IP67 rating for advanced surveillance.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
Key Features
• Resolution 2560×1792@20fps
• 4 IR LEDs + 8 White LEDs+1 Red Alarm LED+1 Blue Alarm LED
• Smart-light Modes (IR/Full-color/Alarm) available
• With Built-in MIC, support audio recording
• Support License Plate Detection, Viewing the License Plate clearly day & night
• AI Human Capture (Working on JOVISION AI NVR)
• Ingress Protection IP67
| Model | JVS-N510-LYT |
| Video | |
| Image Sensor | 1/3″ CMOS Sensor |
| Max Resolution | 2560×1792 |
| Effective Pixels | 5.0MP |
| Compression Standard | H.265/H.264 |
| Frame Rate | 20fps |
| Bit Rate | 250Kbps～8Mbps |
| SNR (dB) | 52dB |
| Min. Illumination | 0Lux(BG/IR ON) |
| Lens | |
| Lens | 4mm/6mm/8mm Optional |
| FOV | 4mm：H: 80.0°, V: 41.7° D:94.6°6mm：H:49.7°, V:26.6° ,
D:57.3°8mm：H:38.6°, V:21.8° D:43.6° |
| IR-LEDs | 22µ x12 LEDs，1 Red Alarm LED+1 Blue Alarm LED |
| IR-Distance | Upto 50 Meters |
| Function | |
| Exposure Control | Support |
| White Balance | Auto |
| Image Enhancement | BLC/HLC/3D DNRDWDR/Defog |
| Advanced OSD | Support OSD large font function, OSD and time to set the position separately,
5 lines x 16 characters |
| Privacy Mask | Support 8 Rectangle Areas |
| Motion Detection | Support |
| Image Setting | Rotate, Saturation, Brightness, Contrast, Sharpness |
| Day and night function | Day and night automatic switching |
| Intelligent Analysis | Region Intrusion, Line Crossing, People Counting, Video Tampering |
| Alarm Method | Â Email Alarm |
| Remote Operation | System, Audio and video, Image, Alarm , Network management,
Intelligent Analysis |
| Expansion Interface | Alarm Audio Output |
| Network | |
| Ethernet | 10M / 100M Ethernet ,1 RJ45 |
| Stream | 3x Streams |
| Protocols | HTTP, TCP/IP, ICMP.RTSP,RTP,UDP,RTCP,SMTP,DHCP,DNS |
| ONVIF | ONVIF Standard |
| Network transmission | CloudSEE 2.0 |
| Browser | IE8+, Chrome18+, Firefox5.0+, Safari5.02+ |
| App | Support iOS/Android |
| General | |
| Power Supply | DC12V |
| Power Consumption | <3W (During day); <6W (At night with IR) |
| Working Temperature | -20°C ~ 60°C |
| Working Humidity | 10% ~ 90% Rh |
| Material | Metal + Plastic |
| Dimensions (WxHxD) | 223*94*137(mm) |
| Weight | 610g |
| Waterproof | IP67 |

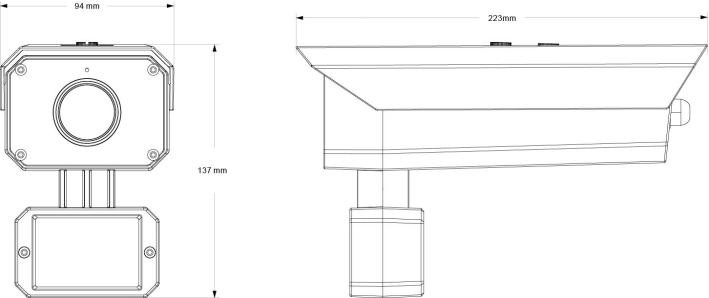

Dimension(mm)
JVS-N510-LYT 5MP Smart Alarm Bullet Camera with License Plate Detection & 50m IR
Product Overview
The JVS-N510-LYT combines multi-functional lighting with intelligent analytics:
-
5MP ultra-HD (2560×1792) @20fps with H.265 compression
-
Triple-light system: 4 IR + 8 white + 2 alarm LEDs (red/blue)
-
Specialized license plate recognition day and night
-
AI human detection (works with JOVISION AI NVR)
-
Built-in microphone for audio verification
-
IP67-rated hybrid metal/plastic housing
With 3 streaming channels, ONVIF support, and CloudSEE 2.0, the JVS-N510-LYT excels in parking security, perimeter protection, and traffic monitoring.
