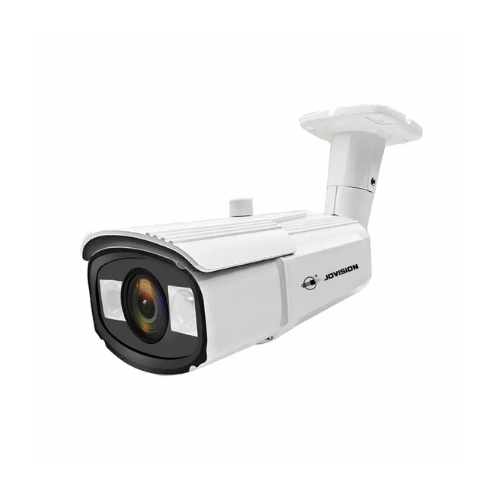

JVS-N513-DS-Z5 5MP Motorized Zoom Bullet Camera
-30m IR & SONY CMOS Sensor
The JVS-N513-DS-Z5 is a professional 5MP motorized zoom bullet camera featuring SONY CMOS, 5x optical zoom, 30m IR, and ONVIF support for advanced surveillance applications.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
Key Features
• 1/2.8″ SONY Progressive Scan CMOS
• 5.0 Megapixel, 2592×1944 @30fps
• 2.7 ~ 13.5mm (Motorized) lens, 3Pcs IR Array LED for 30., IR ON 0 Lux
• Support ONVIF Profile S, FTP, RTSP, UPnP etc.
• Support Dual-Stream, Heartbeat Mechanism, 3D-DNR, Defogging, D-WDR, Lens Correction, Corridor Monitoring etc.
• Support Audio I/O, One alarm input and output, RS485, SD card (Max. 256G), RJ45, DC 12V
| Model | JVS-N513-DS-Z5 |
| Video | |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Max. Resolution | 2592×1944 |
| Effective Pixels | 5.0MP |
| Compression Standard | H.265/ H.264/ MJPEG |
| Bitrate | 30Kbps~16Mbps |
| Bitrate Control | CBR/ VBR |
| Lens | |
| Lens | 2.7 ~ 13.5mm |
| Lens Type | Motorized |
| Function | |
| Image Function | AEC/ AWB/ AGC |
| Image Adjustments | Color Saturation, Brightness, Contrast, Hue, Sharpness, Gamma, D-WDR |
| Others | Anti-Fogging/ Anti Trembling/ IR Detection |
| Image Settings | Flip / Mirror |
| Video Overlay | Support |
| Privacy Mask | 4 Zones |
| Storage | Max. 256GB |
| Alarm I/O | 1x Alarm-In, 1x Alarm-Out |
| RS485 | 1x RS485 interface |
| Audio | 1 input (3.5mm AV interface), 1 output (3.5mm AV interface) |
| Audio Compression | G.711A/ G.711U/ G.726 |
| Two-way Audio | Support |
| Network | |
| Ethernet | 1x RJ45 (10M/100M BASE-TX) |
| Protocols | TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP |
| Alarm output | E-mail/FTP upload |
| Interoperability | ONVIF (Profile S) |
| Browser | IE 10 above |
| Max. User Access | Max. 5 |
| General | |
| Power | DC12V ±10% / IEEE802.3af PoE |
| Environmental Casing | Aluminum Alloy Housing, Indoor and Outdoor Applicable |
| Installation | Ceiling Mounted & Wall Mounted |
| Power Consumption | <12W (IR On) |
| Operating Temperature |  -30°C ~ 60°C |
| Operating Humidity | 0% ~ 85% Rh |
| Dimensions | Â 313x101x70mm |
| Weight | 965g |
Dimension(mm)
JVS-N513-DS-Z5 5MP Motorized Zoom Bullet Camera with 30m IR & SONY CMOS Sensor
Product Overview
The JVS-N513-DS-Z5 delivers professional-grade surveillance with its advanced optical and imaging capabilities:
-
5MP ultra-HD resolution (2592×1944) @30fps with SONY 1/2.8″ CMOS sensor
-
5x motorized zoom lens (2.7-13.5mm) for flexible monitoring
-
3x IR array LEDs for 30m night vision (0Lux capability)
-
Advanced imaging features: 3D-DNR, Defog, D-WDR, and corridor mode
-
Multiple interfaces: Audio I/O, alarm I/O, RS485, and SD card (256GB max)
-
ONVIF Profile S compliant for seamless system integration
With H.265 compression, PoE support, and aluminum alloy housing, the JVS-N513-DS-Z5 is ideal for perimeter security, large-area monitoring, and challenging environments.
