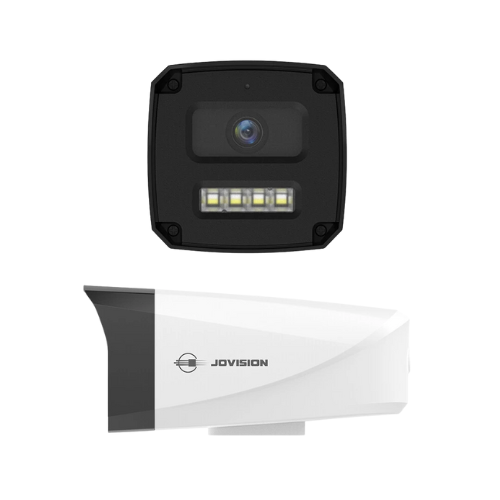

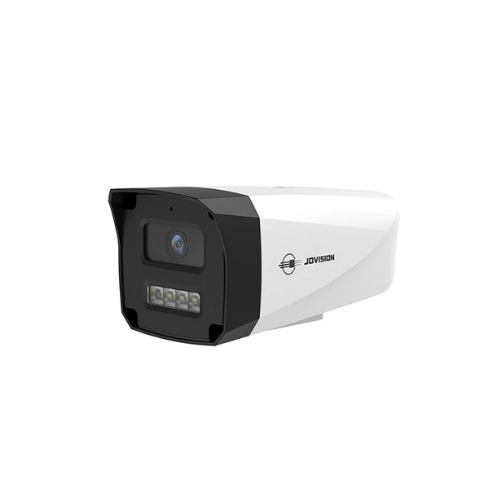

JVS-N516-MDL 5MP Dual-Light PoE Camera
– SAFE Function & IP67 (F1.6 Aperture)
The JVS-N516-MDL 5MP PoE camera features dual-light illumination, SAFE anti-overexposure, and VQC technology. With IP67 rating and F1.6 aperture for superior low-light performance.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
- 5.0 Megapixel 2880 x 1620 Resolution.
- Smart Dual Illumination
- Equipped with VQC Technology
- F1.6 Aperture
- 4 x LEDS and 4x IR LEDS Support Adaptive Dimming
- Built-in Mic
- IEEE802.3af PoE
- Ingress Protection IP67
- Integrated with unique SAFE function
| Image Sensor | 1/2.66″ Progressive CMOS |
| Min. Illumination | IR ON 0 Lux |
| Day & Night | Smart Dual Illumination |
| Lens | 3.6mm |
| FOV | H: 82.4°; V: 44.0°; D:95.9° |
| LEDs | 4 Pcs Warm LED and 4 Pcs IR LEDS |
| LED Range | Warm LED 30m, IR LEDS 50m |
| LED Adjustment | Adaptive Dimming |
| IMAGE | |
| Max Resolution | 2880 x 1660 Resolution |
| Frame Rate | 25fps |
| Video Compression | H.265/H.264 |
| Bit Rate (CBR/VBR) | Main Stream: 256 ~ 8192KbpsSub Stream: 68 ~ 1024Kbps |
| Audio Compression | G.711a / G.711u |
| Image Setting | Saturation, Brightness, Contrast, Sharpness |
| Image Enhancement | HLC/BLC/SAFE/Defog |
| Privacy Mask | Support 8 Rectangle Areas |
| DWDR | Support |
| Face Mode | Support |
| NETWORK | |
| Network Protocols | HTTP, TCP/IP, UDP/IP, ICMP, RTP, UDP, RTCP, SMTP, DHCP, DNS |
| Interface Protocols | Standard ONVIF, GB28181, CloudSEE |
| Auto IP Configuration | Support |
| Alarm Trigger | Motion Detection, Region Intrusion, Line Crossing |
| RTSP Video | Standard RFC2326, QuickTime/VLC Player etc. |
| Web Language | English, Chinese |
| Browser | IE8+, Chrome18+, Firefox5.0+, Safari5.02+ |
| INTERFACE | |
| Ethernet | 1 RJ45 10M / 100M Ethernet |
| Audio | Built-in Mic |
| SD Card | Not Support |
| Reset Button | Not Support |
| GENERAL | |
| Power Supply | DC12V/2A, PoE IEEE 802.3af |
| Power Consumption | <3W (During day); <6W (At night) |
| Working Temperature | -40°C ~ 60°C |
| Working Humidity | 10% ~ 90% Rh Non-Condensation |
| Dimensions | 88x85x187(mm) |
| Product Weight | ≤240g |
| Color / Material | Front Shell: Black & White Plastic |
| Installation | Wall, Ceiling |
JVS-N516-MDL 5MP Dual-Light PoE Camera – SAFE Function & IP67 (F1.6 Aperture)
Product Overview
The JVS-N516-MDL 5MP Full-Color PoE IP Camera delivers high-performance surveillance with:
-
5MP Ultra HD (2880×1620): 50% more detail than 4MP cameras
-
Smart Dual Illumination:
✓ 4 white LEDs for full-color night vision
✓ 4 IR LEDs for 40m B&W night vision
✓ Adaptive dimming for optimal exposure -
SAFE Technology: Prevents facial overexposure in challenging lighting
-
VQC Enhancement: Reduces haze/fog distortion
-
F1.6 Super Aperture: 2x more light intake than standard F2.0 lenses
-
Built-in Mic: Audio recording capability
-
IP67 Weatherproof: Dustproof and waterproof
Best for: Perimeter security, parking lots, and industrial sites needing crisp 24/7 imaging.
