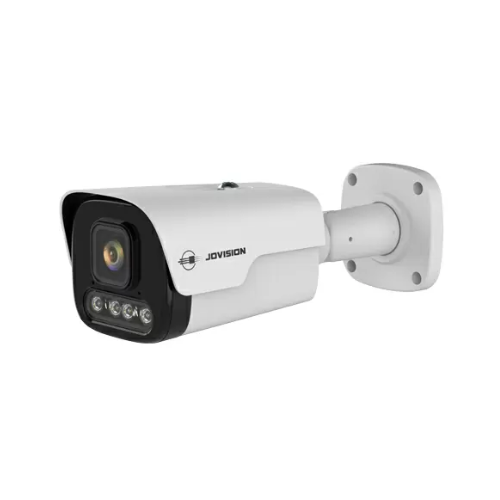

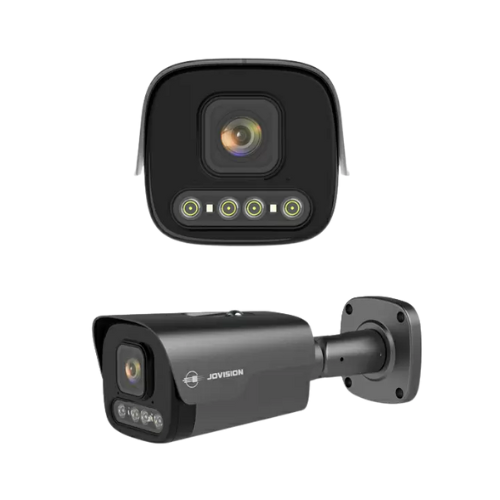

JVS-N518-ZDL 5MP AI Motorized Zoom Camera
-Human/Vehicle/Pet Detection & 80m IR
The JVS-N518-ZDL is a 5MP motorized zoom AI camera featuring AgiSense technology, 24/7 full-color, 80m IR, and two-way audio – ideal for smart surveillance applications.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
Features
- Motorized Varifocal Lens (2.7-13.5mm) for easy installation and monitoring
- 24/7 Full-Color with Dual Smart Illumination
- Human, Vehicle, and Pet Detection, Leave Detection, Road Occupation Detection based on AgiSense Technology
- Built-in Mic and Speaker
- IEEE802.3af PoE
- With VQC Technology
- Support SD Card (Up to 512GB)
| Video | |
| Image Sensor | 1/3″ CMOS |
| Max Resolution | 2560×1792 |
| Effective Pixels | 5.0MP |
| Compression Standard | H.264/H.265+ |
| Framerate | 30fps |
| Bitrate | Main Stream: 256Kbps ~ 4096Kbps; Sub Stream: 68Kbps~1024Kbps; Third Stream: 68Kbps~1028Kbps |
| SNR (dB) | ≥50dB |
| Min. Illumination | 0Lux  (light ON) |
| Lens | |
| Lens | Varifocal Lens, Motorized Lens, 2.7mm-13.5mm |
| Focal lens & FOV | 2.7mm-13.5mm
Horizonal: 101.4° to 26.9°; Vertical: 53.6° to 15.2°; Diagonal: 118.7° to 30.5° |
| Function | |
| Audio Codec | G.711U/G.711A (default) |
| Exposure Control | Auto |
| White Balance | Auto |
| Gain Control | Auto |
| Digital 3D Noise  Reduction | Support |
| OSD Information Setting | By default: The customized OSD supports a maximum of six lines, each line contains a maximum of 32 characters. One Chinese character is counted as two characters |
| SNTP | Support |
| Schedule Reboot | Support |
| Smart Defog | Support |
| Smart Motion Detection | Support (Human, Vehicle, Pet) |
| Image Setting | Support Saturation, Brightness, Contrast, Sharpness  adjustment |
| Image Style | Standard, Soft, Transparent |
| Day and Night Function | Auto, Always Black & White, Always Color, Scheduled  Color |
| Privacy Mask | Support up 8 areas |
| Night Vision Optimization | Support |
| WDR | 120dB |
| Screen Settings | Screen mirroring, Screen flipping |
| IP Adaptation | Support automatic adaptation of IP address (Optional) |
| Intelligent  Analysis | Support Leave Detection, Road Occupation Detection |
| Alarm Method | Email Alarm, Client Alarm |
| Remote Operation | System, Audio and Video, Image, Alarm, Network management, Â Storage management, Intelligent Analysis |
| Audio Function | Built-in Mic and Speaker |
| SD Card | Support（512GB） |
| Peripheral Interface | Audio Input/Output, Alarm Input/Output |
| Network | |
| Ethernet | 10/100Mbps Ethernet |
| Stream | 3x  Streams |
| Network Protocols | HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| Access Protocol | Standard  ONVIF, Public Cloud |
| Network Transmission | CloudSEE 2.0 |
| Fusion Cloud  Platform | Support |
| Browser | IE8+, Chrome18+, Firefox5.0+, Safari5.02+ |
| User | Up to 13 Users |
| App | Support iOS/Android |
| General | |
| Lights | 4 Warm Light LEDs + 4 IR LEDs |
| IR Distance | IR: Up to 80 MetersWarm Light: Up to 60 Meters |
| Waterproof Level | IP67 |
| Power Supply | DC12V/2A or PoE |
| Power Consumption | <6W Â (During Day); <12W (At Night) |
| Working Temperature | -30°C ~ +60°C |
| Working Humidity | 10% ~ 90% Rh |
| Color/Material | Black and White / Metal+Plastic |

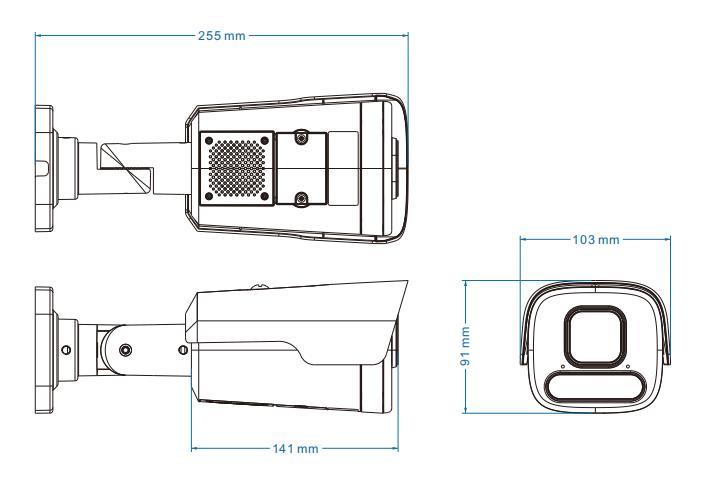

| Dimensions (WxHxD) | 103x91x255mm |
| Weight | 732g |
| Installation Method | Wall or Ceiling Mount |
JVS-N518-ZDL 5MP AI Motorized Zoom Camera with Human/Vehicle/Pet Detection & 80m IR
Product Overview
The JVS-N518-ZDL combines professional optical performance with advanced AI analytics:
-
5MP high-resolution (2560×1792) with motorized zoom (2.7-13.5mm)
-
AgiSense AI detection: Human, vehicle, pet, abandoned objects
-
Dual illumination: 4 warm lights (60m) + 4 IR LEDs (80m)
-
24/7 full-color monitoring with 0Lux capability
-
Two-way audio via built-in mic & speaker
-
VQC technology + 120dB WDR for optimal image quality
-
IP67-rated rugged housing for outdoor durability
With triple streaming, 512GB SD storage, and CloudSEE 2.0 support, the JVS-N518-ZDL excels in traffic monitoring, perimeter security, and smart city applications.
