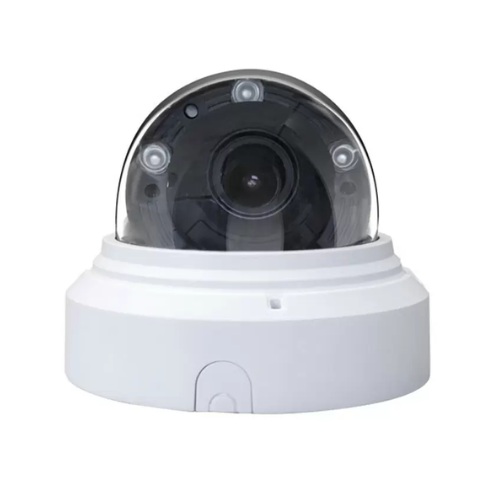

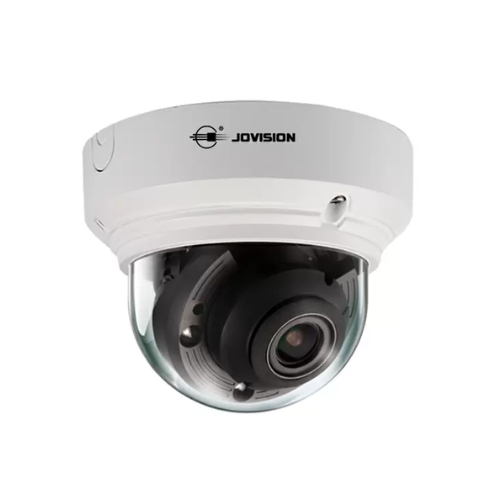

JVS-N533-DS-Z5 | 5MP Motorized Zoom Dome IP Camera
-with 5X Optical Zoom & Sony Sensor
The JVS-N533-DS-Z5 is a 5MP motorized zoom dome IP camera featuring 5X optical zoom, Sony CMOS sensor, built-in mic, and 30m IR for advanced surveillance applications.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
Key Features
• 1/2.8″ SONY Progressive Scan CMOS
• 5.0 Megapixel, 2592×1944 @30fps
• 2.7 ~ 13.5mm (Motorized) lens, 3Pcs IR Array LED for 30., IR ON 0 Lux
• Support ONVIF Profile S, FTP, RTSP, UPnP etc.
• Support Dual-Stream, Heartbeat Mechanism, 3D-DNR, Defogging, D-WDR, Lens Correction, Corridor Monitoring etc.
• Built-in Mic, Support Audio I/O, One alarm input and output, RS485, SD card (Max. 256G), RJ45, DC 12V
| Model | JVS-N533-DS-Z5 |
| Video | |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Max. Resolution | 2592×1944 |
| Effective Pixels | 5.0MP |
| Compression Standard | H.265/ H.264/ MJPEG |
| Bitrate | 30Kbps~16Mbps |
| Bitrate Control | CBR/ VBR |
| Lens | |
| Lens | 2.7 ~ 13.5mm |
| Lens Type | Motorized |
| Function | |
| Image Function | AEC/ AWB/ AGC |
| Image Adjustments | Color Saturation, Brightness, Contrast, Hue, Sharpness, Gamma, D-WDR |
| Others | Anti-Fogging/ Anti Trembling/ IR Detection |
| Image Settings | Flip / Mirror |
| Video Overlay | Support |
| Privacy Mask | 4 Zones |
| Storage | Max. 256GB |
| Alarm I/O | 1x Alarm-In, 1x Alarm-Out |
| RS485 | 1x RS485 interface |
| Audio | 1x Input (3.5mm Jack), 1x Output (3.5mm Jack) |
| Audio Compression | G.711A/ G.711U/ G.726 |
| Two-way Audio | Support |
| Network | |
| Ethernet | 1x RJ45 (10M/100M BASE-TX) |
| Protocols | TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP |
| Alarm output | Email/ FTP Upload |
| Interoperability | ONVIF (Profile S) |
| Browser | IE 10 above |
| Max. User Access | Max. 5 |
| General | |
| Power | DC12V ±10% / IEEE802.3af PoE |
| Environmental Casing | Aluminum Alloy Housing, Indoor Applicable |
| Installation | Ceiling Mounted & Wall Mounted |
| Power Consumption | <9W (IR On) |
| Operating Temperature |  -30°C ~ 60°C |
| Operating Humidity | 0% ~ 85% Rh |
| Dimensions | 143x114mm |
| Weight | 655g |
JVS-N533-DS-Z5 | 5MP Motorized Zoom Dome IP Camera with 5X Optical Zoom & Sony Sensor
Product Overview
The JVS-N533-DS-Z5 is an advanced 5MP motorized zoom dome IP camera designed for professional surveillance applications requiring flexible zoom capabilities and high-resolution imaging. The JVS-N533-DS-Z5 features a premium 1/2.8″ Sony Progressive Scan CMOS sensor that delivers exceptional 2592×1944 resolution at 30fps, ensuring crystal-clear image quality. With its 5X motorized zoom lens (2.7-13.5mm), this camera provides remote optical zoom control for detailed monitoring of distant subjects without sacrificing image quality. The JVS-N533-DS-Z5 includes three IR array LEDs for 30-meter night vision, built-in microphone, two-way audio support, and comprehensive connectivity options including alarm I/O, RS485, and SD card storage up to 256GB. Featuring advanced image processing with 3D-DNR, defogging, D-WDR.
