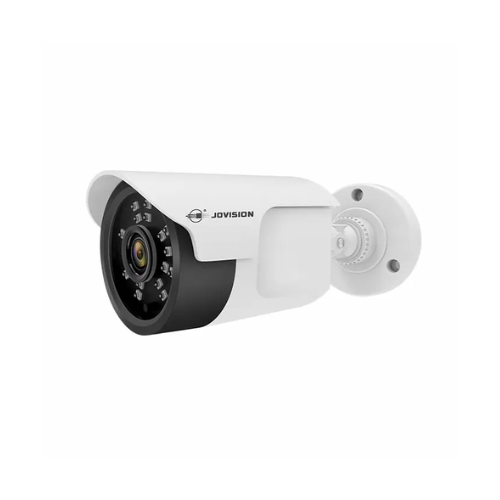

JVS-N913-YWC 3MP Starlight Bullet Camera
-25m IR & IP66 Rating
The JVS-N913-YWC is a 3MP starlight bullet camera featuring 18x IR LEDs (25m range), H.265 compression, and IP66 weatherproof rating for reliable outdoor surveillance.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
Key Features
• Resolution 2304×1296@25fps
• Ingress Protection IP66
• 18x IR-LED, Up to 25 Meters
• With Starlight Function
| Model | JVS-N913-YWC |
| Video | |
| Image Sensor | 1/ 2.9” CMOS |
| Max Resolution | 2304×1296 |
| Effective Pixels | 3.0MP |
| Compression Standard | H.265 / H.264 |
| Maximum Frame Rate | 2304×1296@25fps |
| SNR(dB) | 52dB |
| Bit Rate | 256Kbps～8Mbps |
| Illumination | 0Lux (IR ON) |
| Lens | |
| Lens | 4mm |
| Viewing Angle | H: 78.5°, V: 42.8°, D:92.6° |
| IR-LEDs | 14µ x 18 LEDs |
| IR-Distance | Up to 25 Meters |
| Function | |
| Motion Detection | Support |
| Email Alert | Support |
| Day& Night | Support |
| Recording | Support (NVR, Windows PC, Smartphone) |
| DHCP | Support |
| FTP | Not Supported |
| Pan/Tilt | Not Supported |
| SD-Card | Not Supported |
| Privacy Mask | Support up to 8 areas |
| Exposure Control | Support |
| Image Adjustment | Support |
| Auto. White Balance | Support |
| Image Rotation | Support (Mirror/Flip) |
| Network | |
| Ethernet | 10M/100M Ethernet, RJ45 Port |
| Protocols | HTTP, TCP/IP,UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| Stream | 2x Streams |
| Wi-Fi | Not Supported |
| LAN | Support |
| ONVIF | ONVIF 2.4 |
| User | Up to 13 Users |
| Browser | IE8+, Chrome18+ ~ 42- |
| Smart Phone | iOS/Android |
| General | |
| Dimensions(W*H*D) | Φ70*165.1mm |
| Weights | 230g |
| Material | Plastic |
| Working Temperature | -20°C～60°C |
| Humidity | RH 10%～90% |
| Power Supply | DC12V |
| Consumption | Day ≦3W Night ≦ 6W |
| Waterproof | IP66 |
Dimensions (mm)
JVS-N913-YWC 3MP Starlight Bullet Camera with 25m IR & IP66 Rating
Product Overview
The JVS-N913-YWC delivers enhanced night vision performance with:
-
3MP HD resolution (2304×1296) @25fps with H.265 compression
-
Starlight technology for superior low-light imaging
-
18x IR LED array for 25m night vision (0Lux capability)
-
78.5° wide viewing angle for comprehensive coverage
-
IP66-rated weatherproof plastic housing
-
DC12V powered for flexible installation
With motion detection, privacy masking, and ONVIF 2.4 compliance, the JVS-N913-YWC is ideal for perimeter security, parking areas, and residential monitoring.
