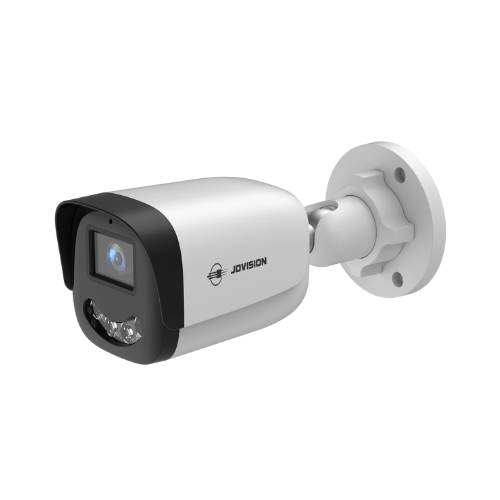

JVS-N915-XDL 3MP Dual-Light PoE Camera
– 40m IR & IP67 (Human Detection)
The JVS-N915-XDL 3MP PoE camera features dual-light night vision (40m IR), human detection, and IP67 rating. With H.265+ compression for reliable outdoor surveillance.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
- Dual Smart Illumination
- Support Motion Detection(Humanoid)
- Built-in Mic
- Built-in PoE
- IP67
| Video | |
| Image Sensor | 1/2.7″ CMOS Sensor |
| Max Resolution | 2304×1296 |
| Effective Pixels | 3.0MP |
| Compression Standard | H.264/H.265/H265+ |
| Framerate | 20fps |
| Bitrate | Main Stream: 256Kbps ~ 4Mbps
Sub Stream: 68Kbps~1024Kbps |
| SNR (dB) | 39dB |
| Min. Illumination | 0Lux (light ON) |
| Lens | |
| Interface Type | M12 |
| Lens | 2.8mm, 3.6mm |
| FOV | 2.8mm:H 96°, V 53°, D 110°
3.6mm:H 83.8°, V 42.7°, D 100.1° |
| Function | |
| Audio Codec | G.711U/G.711A (default) |
| Exposure Control | Auto |
| White Balance | Auto |
| Gain Control | Auto |
| Digital 3D Noise Reduction | Support |
| OSD Information Setting | Large font OSD, OSD flashing on alarm, OSD position settings |
| SNTP | Support |
| Schedule Reboot | Support |
| Smart Defog | Support |
| Motion Detection | Support(Humanoid) |
| Image Setting | Support Saturation, Brightness, Contrast, Sharpness adjustment |
| Image Style | Standard, Soft, Transparent |
| Day and Night Function | Auto, Always Black & White, Always Color, Scheduled Color |
| Privacy Mask | Support up 8 areas |
| Electronic Screen Setting | Support maximum and minimum exposure time setting |
| Night Vision Optimization | Support |
| DWDR | Support |
| Screen Settings | Screen mirroring, Screen flipping |
| IP Adaptation | Support automatic adaptation of IP address (Optional) |
| Alarm Method | Email Alarm, Client Alarm |
| Remote Operation | System, Audio and Video, Image, Alarm, Network management |
| Audio Function | Built-in Mic |
| Network | |
| Ethernet | 10/100Mbps Ethernet |
| Stream | 2x Streams |
| Network Protocols | HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| ONVIF | Standard ONVIF |
| Network Transmission | CloudSEE 2.0 |
| Browser | IE8+, Chrome18+, Firefox5.0+, Safari5.02+ |
| User | Up to 13 Users |
| App | Support iOS/Android |
| General | |
| Lights | 4 White LEDs + 4 IR LEDs |
| IR Distance | Up to 40 Meters |
| Waterproof Level | IP67 |
| Power Supply | DC12V or PoE (IEEE802.3af) |
| Power Consumption | <3W (During Day); <6W (At Night) |
| Working Temperature | -20°C ~ 60°C |
| Working Humidity | 10% ~ 90% Rh |
| Color/Material | Black and White/Plastic+Metal |
| Dimensions (WxHxD) | 67x74x201mm |
| Weight | 250g |
| Installation Method | Wall or ceiling mount |
JVS-N915-XDL 3MP Dual-Light PoE Camera – 40m IR & IP67 (Human Detection)
Product Overview
The JVS-N915-XDL 3.0MP Dual Light PoE Network Camera delivers robust security with:
-
3MP HD Resolution (2304×1296 @20fps): Clear imaging for identification
-
Dual-Light System:
✓ 4 white LEDs for full-color night vision (0 Lux)
✓ 4 IR LEDs for 40m B&W night vision -
AI Human Detection: Reduces false alarms
-
H.265+/H.264 Compression: 50% bandwidth savings
-
IP67 Weatherproof: Withstands heavy rain and dust
-
Flexible Lens Options: 2.8mm (110° FOV) or 3.6mm (100° FOV)
Best for: Construction sites, parking lots, and harsh environments needing extended IR coverage.
