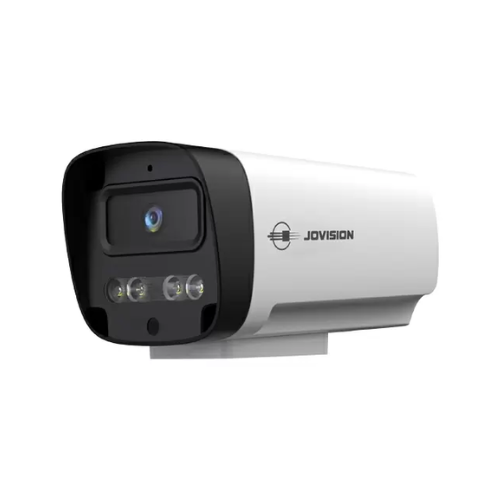

JVS-N917-TDL 3MP Smart Dual-Light Bullet Camera
-Human Detection & Two-Way Audio
The JVS-N917-TDL is a 3MP full-color bullet camera featuring smart light activation (4 warm + 4 IR LEDs), human detection, VQC technology, and IP67 rating for responsive security.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
Features
- Light’s On When People Come, Light’s Off When People Leave
- Double Wick, Four warm light, Four infrared
- Support Humanoid Detection
- Support Region Intrusion Detection, Line Crossing Detection, Video Tampering Detection, Defocus Detection
- Equipped With unique VQC (Video Quality Catalyst) Technology
- Built-in MIC and Speaker
| Video | |
| Image Sensor | 1/2.9″ CMOS Sensor |
| Max Resolution | 2304×1296 |
| Effective Pixels | 3.0MP |
| Compression Standard | H.265/H.264 |
| Frame Rate | 25fps |
| Bit Rate | 128Kbps~4096Kbps |
| SNR (dB) | 52dB |
| Min. Illumination | 0Lux (IR ON) |
| Lens | |
| Lens | 3.6mm(M12) |
| FOV | H:83.8°, V:42.7°, D:100.1° |
| Lights | 4 Â Warm Light LEDs + 4 IR LEDs |
| IR Distance | IR: Up to 50 MetersWarm Light: Up to 30 Meters |
| Function | |
| Exposure Control | Auto |
| White Balance | Auto |
| Gain Control | Auto |
| Image Enhancement | 3D DNR |
| Advanced OSD | Support  OSD large font function, OSD flashing on alarm, OSD and time to set the position separately |
| Motion Detection | Support Humanoid Detection |
| Image Setting | Flip, Saturation, Brightness, Contrast, Sharpness |
| Day and night  function | Day and night automatic switching |
| Privacy Mask | Support up to 8 areas |
| Intelligent  Analysis | Region Intrusion Detection, Line Crossing Detection, Video Tampering Detection, Defocus Detection |
| Alarm Method | Â Email Alarm, Client Alarm |
| Remote Operation | System, Audio and video, Image, Alarm, Network  management |
| Expansion  Interface | Built-in MIC and Speaker |
| Network | |
| Ethernet | 10M / 100M Ethernet ,1 RJ45 |
| Stream | 2x  Streams |
| Protocols | HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| ONVIF | standard  ONVIF |
| Network  transmission | CloudSEE 2.0, GB28181 |
| Browser | IE8+ Chrome18+, Firefox5.0+, Safari5.02+ |
| User | Up to 13 Users |
| App | Support iOS/Android |
| General | |
| Power Supply | DC12V or PoE |
| Power Consumption | <3W (During day); <6W (At night) |
| Working Temperature | -20°C ~ 60°C |
| Working Humidity | 10% ~ 90% Rh |
| Material | Â Black and white/Plastic |
| Dimensions (WxHxD) | 95x95x175mm |
| Weight | 280g |
| Waterproof | IP67 |
JVS-N917-TDL 3MP Smart Dual-Light Bullet Camera with Human Detection & Two-Way Audio
Product Overview
The JVS-N917-TDL combines intelligent lighting with advanced surveillance in a compact bullet design:
-
Smart illumination system: 4 warm lights + 4 IR LEDs auto-activate for human detection
-
3MP full-color resolution (2304×1296) with H.265 compression
-
50m IR + 30m warm light coverage for 24/7 monitoring
-
Built-in mic & speaker for real-time audio verification
-
AI analytics: Intrusion/crossing detection + defocus alert
-
VQC technology for superior image clarity
-
IP67-rated weatherproof housing
With dual-stream encoding, CloudSEE 2.0 support, and PoE/DC12V power options, the JVS-N917-TDL excels in perimeter security for homes and businesses.
