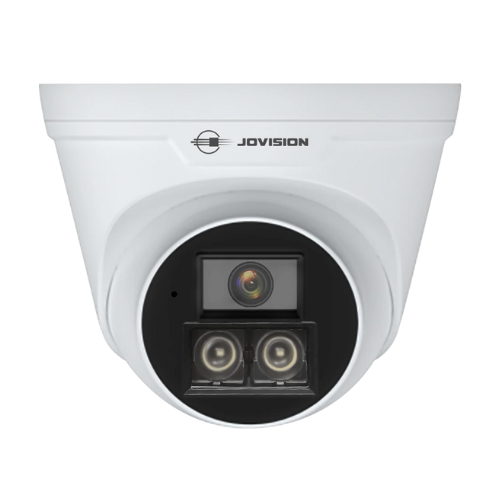

JVS-N935-XDL | 3MP Dual Light PoE Camera
-with Humanoid Detection & Built-in Mic
The JVS-N935-XDL is a 3MP dual-light PoE network camera featuring humanoid motion detection, built-in microphone, 35m night vision, and IP53 rating for smart security monitoring.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
Features
- Dual Smart Illumination
- Support Motion Detection(Humanoid)
- Built-in Mic
- Built-in PoE
- IP53
Specifications
| Video | |
| Image Sensor | 1/2.7″ CMOS Sensor |
| Max Resolution | 2304×1296 |
| Effective Pixels | 3.0MP |
| Compression Standard | H.264/H.265/H265+ |
| Framerate | 20fps |
| Bitrate | Main Stream: 256Kbps ~ 4Mbps
Sub Stream: 68Kbps~1024Kbps |
| SNR (dB) | 39dB |
| Min. Illumination | 0Lux (light ON) |
| Lens | |
| Interface Type | M12 |
| Lens | 2.8mm, 3.6mm |
| FOV | 2.8mm:H 96°, V 53°, D 110°
3.6mm:H 83.8°, V 42.7°, D 100.1° |
| Function | |
| Audio Codec | G.711U/G.711A (default) |
| Exposure Control | Auto |
| White Balance | Auto |
| Gain Control | Auto |
| Digital 3D Noise Reduction | Support |
| OSD Information Setting | Large font OSD, OSD flashing on alarm, OSD position settings |
| SNTP | Support |
| Schedule Reboot | Support |
| Smart Defog | Support |
| Motion Detection | Support(Humanoid) |
| Image Setting | Support Saturation, Brightness, Contrast, Sharpness adjustment |
| Image Style | Standard, Soft, Transparent |
| Day and Night Function | Auto, Always Black & White, Always Color, Scheduled Color |
| Privacy Mask | Support up 8 areas |
| Electronic Screen Setting | Support maximum and minimum exposure time setting |
| Night Vision Optimization | Support |
| DWDR | Support |
| Screen Settings | Screen mirroring, Screen flipping |
| IP Adaptation | Support automatic adaptation of IP address (Optional) |
| Alarm Method | Email Alarm, Client Alarm |
| Remote Operation | System, Audio and Video, Image, Alarm, Network management |
| Audio Function | Built-in Mic |
| Network | |
| Ethernet | 10/100Mbps Ethernet |
| Stream | 2x Streams |
| Network Protocols | HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| ONVIF | Standard ONVIF |
| Network Transmission | CloudSEE 2.0 |
| Browser | IE8+, Chrome18+, Firefox5.0+, Safari5.02+ |
| User | Up to 13 Users |
| App | Support iOS/Android |
| General | |
| Lights | 2 White LEDs + 2 IR LEDs |
| IR Distance | Up to 35 Meters |
| Waterproof Level | IP53 |
| Power Supply | DC12V or PoE (IEEE802.3af) |
| Power Consumption | <3W (During Day); <6W (At Night) |
| Working Temperature | -20°C ~ 60°C |
| Working Humidity | 10% ~ 90% Rh |
| Color/Material | Black and White/Plastic+Metal |
| Dimensions (WxHxD) | 80x100mm |
| Weight | 200g |
| Installation Method | Wall or ceiling mount |
JVS-N935-XDL | 3MP Dual Light PoE Camera with Humanoid Detection & Built-in Mic
Product Overview
The JVS-N935-XDL is an advanced 3MP dual-light PoE network camera designed for intelligent surveillance with smart illumination and accurate detection capabilities. The JVS-N935-XDL delivers high-quality 2304×1296 resolution video and features dual smart illumination technology combining white LEDs and IR LEDs for optimal day and night performance. This camera specializes in humanoid motion detection, significantly reducing false alarms by accurately distinguishing human movement from other motion. With built-in microphone for audio monitoring, built-in PoE for easy installation, and support for H.265+ compression, the JVS-N935-XDL offers efficient and comprehensive security monitoring. The IP53 weatherproof rating makes it suitable for both indoor and sheltered outdoor applications, perfect for entryways, porches, retail spaces, and areas requiring reliable human detection and clear audio-video recording.
