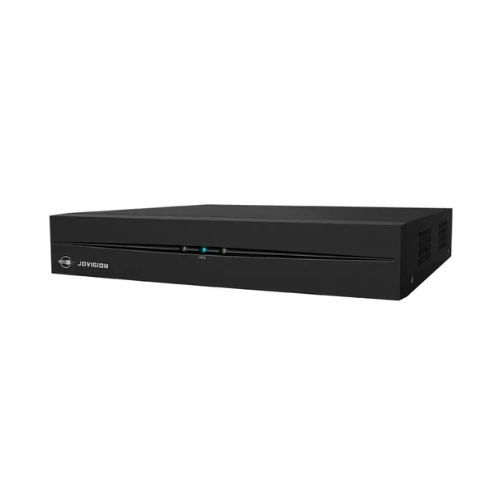

JVS-ND6606-HD 6CH H.265 NVR
-with VSmart Coding, 10TB Storage & AI Human Detection
The JVS-ND6606-HD is a compact 6-channel H.265 NVR featuring VSmart coding technology, 10TB storage support, AI human detection, and ONVIF 2.4 compatibility for small business and home security.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
Key Features
• Adopt the new Vstar GUI , easy to operate and run smoothly
• Support intelligent coding VSMart, greatly reducing storage space
• Improved compatibility for hard disks, and up to 10TB
• Support Intelligent Detection and Human Detection
Specifications
| Model | JVS-ND6606-HD |
| Video & Audio | |
| IP Camera Input | 6 Channel |
| Audio Input/ Output | 1 Channel 3.5mm Jack Output,6 Channel Audio output through HDMI |
| Bandwidth I/O | 50Mbps/40Mbps |
| Display | |
| Interface | 1 HDMI, 1 VGA |
| Resolution | HDMI: 2560×1440, 1920×1080, 1440×900, 1280×1024, 1280×720, 1024×768 |
| VGA: 1920×1080, 1440×900, 1280×1024, 1280×720, 1024×768 | |
| Max Decoding | 6CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p @25fps |
| Multi-Screen Display | 1/ 4/ 5/ 6 |
| OSD | Camera Name & Time, Recording, Alarm Detecting, Remote connection,
Volume, Channel Number |
| Recording | |
| Compression | H.265/H.264 |
| Resolution | 6CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p |
| Record Mode | Manual, Schedule, Motion Detection |
| Video Detection & Alarm | |
| Trigger Events | Recording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer |
| Video Detection | Motion Detection, No Video Detection |
| Playback & Backup | |
| Sync Playback | 1CH 5.0MP, 1CH 4.0MP, 1CH 3.0MP, 2CH 1080p |
| Search Mode | Channel Number / Recording Type / Date |
| Playback Function | Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward
,Slow, Step, Full Screen, Snap, Sound On/Off, Zoom |
| Backup Mode | FAT32 USB Device/ Network |
| Network & Interfaces | |
| Interface | 1 RJ45 Port (10/100Mbps) |
| Network Function | TCP/IP, DHCP, UDP, SMTP, NTP, CloudSEE |
| Smart Phone | Support iOS, Android App |
| Interoperability | ONVIF 2.4 |
| Storage | |
| SATA | 1 SATA Interfaces |
| Capacity | Up to 10TB |
| USB | 2x USB |
| General | |
| Power Supply | DC 12V |
| Consumption | ≤10W (Without HDD) |
| Working Temperature | -10°C ~ 55°C |
| Working Humidity | 10% ~ 90% |
| Dimensions | 255x41x195mm |
| Weight | ≤1.0kg (Without HDD) |
JVS-ND6606-HDÂ 6CH H.265 NVR with VSmart Coding, 10TB Storage & AI Human Detection
Product Overview
The JVS-ND6606-HD is an efficient 6-channel H.265 network video recorder designed for small business and residential surveillance applications. JVS-ND6606-HD utilizes intelligent VSmart coding technology to significantly reduce bandwidth and storage requirements while maintaining high-quality video performance. With support for up to 10TB storage capacity, this compact NVR ensures ample recording time for continuous monitoring. JVS-ND6606-HD features advanced AI analytics including human detection and motion analysis, providing intelligent security alerts and reducing false triggers. The user-friendly VStar GUI ensures smooth operation, while ONVIF 2.4 compliance guarantees broad camera compatibility. With compact dimensions, low power consumption, and dual USB ports for easy backup, the JVS-ND6606-HD offers a complete, cost-effective security solution for home.
