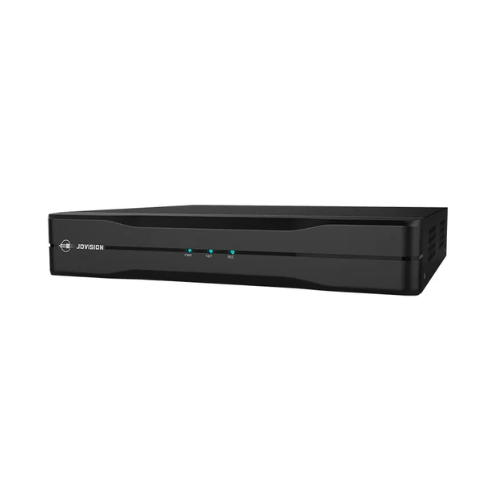

JVS-ND6616-HD 16CH H.265 NVR
-with VSmart Coding, 10TB Storage & AI Human Detection
The JVS-ND6616-HD is a 16-channel H.265 NVR featuring VSmart coding technology, 10TB storage support, AI human detection, and ONVIF 2.4 compatibility for business security systems.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
Key Features
• Adopt the new Vstar GUI, easy to operate and run smoothly
• Support intelligent coding VSMart, greatly reducing storage space
• Improved compatibility for HDD. Support max. of 10TB
• Support Intelligent Detection and Human Detection
| Model | JVS-ND6616-HD |
| Video & Audio | |
| IP Camera Input | 16 Channel |
| Audio Input/ Output | 1 Channel RCA Output,16 Channel Audio output through HDMI |
| Bandwidth I/O | 80Mbps/40Mbps |
| Display | |
| Interface | 1 HDMI, 1 VGA |
| Resolution | HDMI: 2560×1440, 1920×1080, 1440×900, 1280×1024, 1280×720, 1024×768 |
| VGA: 1920×1080, 1440×900, 1280×1024, 1280×720, 1024×768 | |
| Max Decoding | 16CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p @25fps |
| Multi-Screen Display | 4/ 5/ 6/ 7/ 8/ 9/ 10/ 11/ 12/ 13/ 14/ 15/ 16 |
| OSD | Camera Name & Time, Recording, Alarm Detecting, Remote connection,
Volume, Channel Number |
| Recording | |
| Compression | H.265/H.264 |
| Resolution | 16CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p |
| Record Mode | Manual, Schedule, MD |
| Video Detection & Alarm | |
| Trigger Events | Recording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer |
| Video Detection | Motion Detection, No Video Detection |
| Playback & Backup | |
| Sync Playback | 1CH 5.0MP, 1CH 4.0MP, 1CH 3.0MP, 2CH 1080p |
| Search Mode | Channel Number / Recording Type / Date |
| Playback Function | Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward,
Slow, Step, Full Screen, Snap, Sound On/Off, Zoom |
| Backup Mode | FAT32 USB Device/ Network |
| Network & Interfaces | |
| Interface | 1 RJ45 Port (10/100Mbps) |
| Network Function | TCP/IP, DHCP, UDP, SMTP, NTP, CloudSEE |
| Smart Phone | Support iOS, Android App |
| Interoperability | ONVIF 2.4 |
| Storage | |
| SATA | 1 SATA Interfaces |
| Capacity | Up to 10TB |
| USB | 2x USB |
| General | |
| Power Supply | DC 12V |
| Consumption | ≤10W (Without HDD) |
| Working Temperature | -10°C ~ 55°C |
| Working Humidity | 10% ~ 90% |
| Dimensions | 260x48x227mm |
| Weight | ≤1.0kg (Without HDD) |
JVS-ND6616-HDÂ 16CH H.265 NVR with VSmart Coding, 10TB Storage & AI Human Detection
Product Overview
The JVS-ND6616-HD is a powerful 16-channel H.265 network video recorder designed for business and commercial surveillance applications. JVS-ND6616-HD utilizes intelligent VSmart coding technology to dramatically reduce bandwidth and storage requirements while maintaining superior video quality. With support for up to 10TB storage capacity, this NVR provides extensive recording capabilities for comprehensive security monitoring. JVS-ND6616-HD features advanced AI analytics including human detection and motion analysis, delivering intelligent security alerts and reducing false alarms. The user-friendly VStar GUI ensures effortless operation and management, while ONVIF 2.4 compliance guarantees broad camera compatibility. With compact dimensions, low power consumption, and multiple USB ports for convenient data backup, the JVS-ND6616-HD offers a complete, professional security solution for retail stores.
