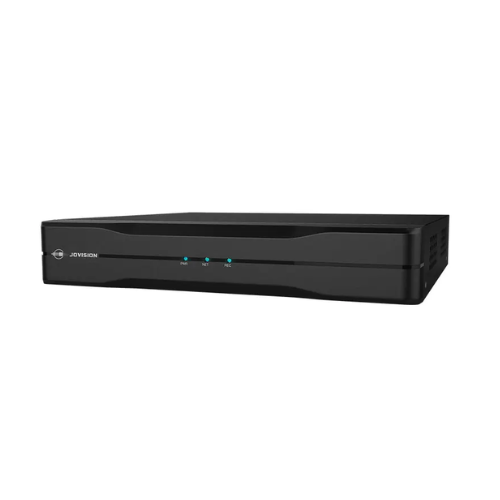

JVS-ND7008-PD01 | 8CH PoE H.265 NVR
-with Human Detection & 8TB Storage
The JVS-ND7008-PD01 is an 8CH PoE H.265 NVR featuring human detection, 8 PoE ports, 8TB storage, and VSmart intelligent coding for efficient surveillance management.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
Key Features
• Adopt the new VStar GUI, easy to operate and run smoothly
• Support intelligent coding VSmart, greatly reducing storage space
• Improved compatibility for HDD. Support max. of 8TB
• Support Intelligent Detection and Human Detection
• Support 8 Channel IEEE802.3af PoE
| Model | JVS-ND7008-PD01 |
| Video and Audio | |
| IP Camera Input | 8 Channel |
| Audio Input/ Output | 1 Channel 3.8mm Audio Output, 8 Channel Audio output through HDMI |
| Display | |
| Interface | 1 HDMI, 1 VGA |
| Resolution | HDMI: 3840×2160, 1920×1080, 2560×1440, 1440×900, 1280×1024, 1280×720, 1024×768 |
| VGA: 1920×1080, 1440×900, 1280×1024, 1280×720, 1024×768 | |
| Max Decoding | 8CH 5.0MP/4.0MP/1080p/960p/720p @25fps |
| Multi-screen Display | 1/ 4/ 5/ 6/ 7/ 8/ 9 |
| OSD | Camera Name & Time, Recording, Alarm Detecting, Remote connection,
Volume, Channel Number |
| Recording | |
| Compression | H.265/H.264 |
| Resolution | 8CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p |
| Record Mode | Manual, Schedule, Motion Detection |
| Video Detection and Alarm | |
| Trigger Events | Recording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer |
| Video Detection | Motion Detection, No Video Detection |
| Playback & Backup | |
| Sync Playback | 2CH 5.0MP/ 3CH 4.0MP/ 4CH 3.0MP |
| Search Mode | Time /Date, Schedule, Motion Detection |
| Playback Function | Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward,
Slow, Step, Full Screen, Snap, Sound On/Off, Zoom |
| Backup Mode | FAT32 USB Device/ Network |
| Network & Interfaces | |
| Interface | 1 RJ45 Port (10/100/1000Mbps) |
| PoE Interface | 8 Port 100Mbps IEEE802.3af PoE |
| Network Function | TCP/IP, DHCP, UDP, SMTP, NTP, CloudSEE |
| Smart Phone | Support iOS, Android App |
| Interoperability | ONVIF 2.4 |
| BandwidthI/O | 60Mbps/40Mbps |
| Storage | |
| SATA | Single SATA interface |
| Capacity | Up to 8TB |
| USB | 2x USB |
| General | |
| Power Supply | 48V DC |
| Consumption | ≤15W (Without HDD) |
| Working Temperature | -10°C ~ 55°C |
| Working Humidity | 10% ~ 90% |
| Dimensions | 360x264x45mm |
| Weight | ≤2Kg (Without HDD) |
JVS-ND7008-PD01 | 8CH PoE H.265 NVR with Human Detection & 8TB Storage
Product Overview
The JVS-ND7008-PD01 is a powerful 8CH PoE H.265 network video recorder designed for comprehensive surveillance system management with maximum convenience. The JVS-ND7008-PD01 features 8 built-in IEEE802.3af PoE ports, allowing direct connection and power supply to up to 8 IP cameras without additional PoE switches or power adapters. Utilizing VSmart intelligent coding technology, this NVR significantly reduces storage requirements while maintaining high-quality video recording, supporting up to 8TB storage capacity for extended recording periods. With advanced human detection capabilities and intelligent analytics, the JVS-ND7008-PD01 provides smart event triggering, accurate alerts, and efficient video review. The user-friendly VStar GUI ensures smooth operation and easy navigation, making this NVR ideal for medium-sized homes, businesses.
