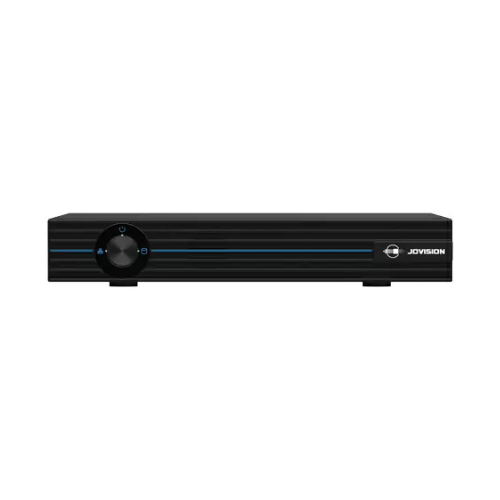

JVS-ND7604-HP | 4CH H.265 4K NVR
-with Smart Coding & Built-in Speaker
The JVS-ND7604-HP is a 4CH H.265 4K NVR featuring VSmart coding, 10TB storage, built-in speaker, and intelligent analytics for home and small business security.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
Features
- Adopt the new VStar GUI, easy to operate and run smoothly.
- Support intelligent coding VSmart, greatly reducing storage space.
- Improved compatibility for hard disks, and up to 10TB.
- Supports multiple intelligent analyses such as motion detection, regional intrusion, tripwire detection, passenger flow statistics, scene changes, and occlusion alarms.
- Support the preview, storage and playback of 4K HD network video.
- Support built-in speakers, realize real-time monitoring of video recording, support voice alarm.
Specifications
| Model | JVS-ND7604-HP |
| Video and Audio | |
| IP Camera Input | 4Channel |
| Audio Input/ Output | IPC Audio input/Audio output through HDMI |
| Built-in Speaker | Support |
| Bandwidth I/O | 80Mbps/80Mbps |
| Display | |

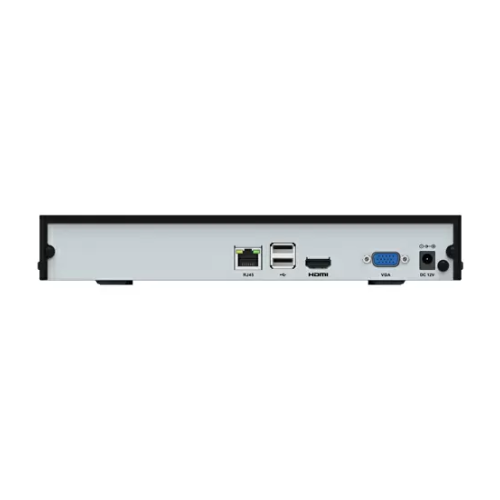

| Interface | 1 HDMI, 1 VGA |
| Resolution | HDMI: 3840×2160@30Hz/2560×1440@30Hz/1920×1080
1440×900/1280×1024/1280×720/1024×768 |
| VGA: 1920×1080,1440×900,1280×1024,1280×720,1024×768 | |
| Max Decoding | 1ch 4K 15fps;4ch@ 5.0MP/4.0MP/1080P/960P/720P 25fps |
| Multi-screen Display | 1/4 |
| OSD | Camera Name & Time, Recording, Alarm Detecting
, Remote connection, Volume, Channel Number |
| Recording | |
| Compression | H.265/H.264 |
| Resolution | 1Ch 4K;4Ch 5.0MP/4.0MP/1080P/960P/720P |
| Record Mode | Manual, Schedule, MD |
| Video Detection and Alarm | |
| Trigger Events | Recording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer |
| Video Detection | Motion Detection, No Video Detection |
| Playback and Backup | |
| Sync Playback | 1ch 4K,1ch 5.0MP, 1ch 4.0MP, 1ch 3.0MP, 2ch 1080P |
| Search Mode | Channel number / recording type / date |
| Playback Function | Day View, Hour View, Back Step, Rewind, Pause, Play,
Fast Forward, Slow, Step, Full Screen, Snap, Sound On/Off, Zoom |
| Backup Mode | FAT32 USB Device/Network |
| Network | |
| Interface | 1 RJ-45 port (10/100Mbps) |
| Network Function | TCP/IP, DHCP, UDP, SMTP, NTP |
| Smart Phone | iPhone, Android |
| Interoperability | ONVIF 2.4 |
| Storage | |
| SATA | 1 SATA interfaces |
| Capacity | up to 10TB |
| General | |
| Power Supply | DC 12V |
| Consumption | ≤ 10 W (Without HDD) |
| Working Temperature | -100C~ 550C |
| Working Humidity | 10 % ~ 90 % |
| Dimensions | 260X47.5X225mm |
| Weight | ≤ 1.0kg (Without HDD) |
JVS-ND7604-HP | 4CH H.265 4K NVR with Smart Coding & Built-in Speaker
Product Overview
The JVS-ND7604-HP is a compact yet powerful 4CH H.265 4K network video recorder designed for home and small business surveillance systems. The JVS-ND7604-HP supports up to 4 IP cameras with 4K resolution capability, delivering ultra-high-definition video monitoring for critical security applications. Featuring VSmart intelligent coding technology, this NVR significantly reduces storage requirements while maintaining exceptional video quality, supporting up to 10TB storage capacity for extended recording periods. With built-in speakers for real-time audio monitoring and voice alarms, plus advanced intelligent analytics including motion detection, regional intrusion, and tripwire detection, the JVS-ND7604-HP offers comprehensive security management. The user-friendly VStar GUI ensures easy operation.
