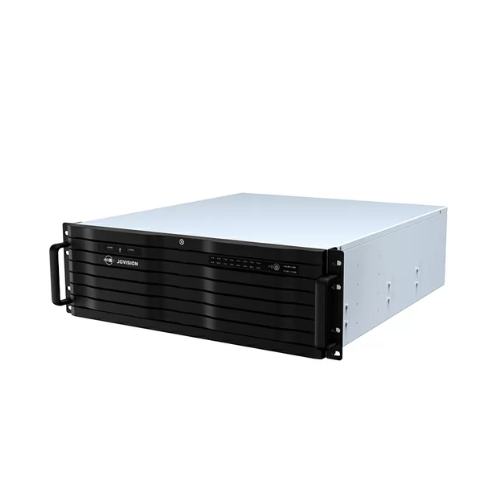

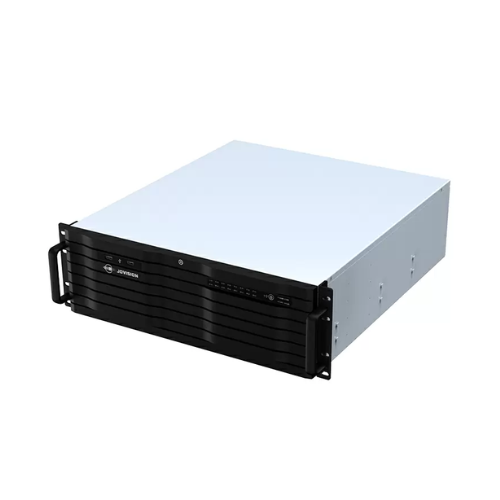

JVS-ND912816-H-XM | 128CH 16HDD H.265 NVR
-with 4K Output & Intelligent Coding
The JVS-ND912816-H-XM is a massive 128-channel, 16HDD NVR featuring 4K video output, VSmart coding, dual network ports, and advanced AI human detection for enterprise security.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
Key Features
• 4K Video Output
• Adopt the new VStar GUI, easy to operate and run smoothly
• Support intelligent coding VSmart, greatly reducing storage space
• Improved compatibility for HDD. Support 16x SATA max. of 10TB
• Support Alarm-In and Alarm-Out. 16 Input and 4 Output.
• Support RS485
• Support Intelligent Detection and Human Detection
• Support dual Network Interface, Dual HDMI and Dual VGA
| Model | JVS-ND912816-H-XM |
| Video & Audio | |
| IP Camera Input | 128 Channel |
| Audio Input/ Output | 1 Channel RCA Output, 1 Channel RCA Input128 Channel Audio output
through HDMI |
| Bandwidth I/O | 500Mbps/320Mbps |
| Display | |
| Interface | 2 HDMI, 2 VGA |
| Video Output | HDMI: 3840×2160/ 2560×1440/ 1920×1080/ 1440×900/ 1280×1024/ 1280×720/Â 1024×768 |
| VGA: 1920×1080/ 1440×900/ 1280×1024/ 1280×720/ 1024×768 | |
| Max Decoding | 128CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p @25fps |
| Multi-Screen Display | 1/ 4/ 5/ 6 up to 64×2 |
| OSD | Camera Name & Time, Recording, Alarm Detecting, Remote connection,
Volume, Channel Number |
| Recording | |
| Compression | H.265/H.264 |
| Resolution | 128CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p |
| Record Mode | Manual, Schedule, Motion Detection |
| Video Detection & Alarm | |
| Trigger Events | Recording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer |
| Video Detection | Motion Detection, No Video Detection |
| Alarm-In & Out | 16CH Alarm Input; 4CH Alarm Output |
| Playback & Backup | |
| Sync Playback | 9CH 5.0MP @20fps/ 11CH 4.0MP/ 13CH 3.0MP/16CH 1080p |
| Search Mode | Channel Number / Recording Type / Date |
| Playback Function | Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward,
Slow, Step, Full Screen, Snap, Sound On/Off, Zoom |
| Backup Mode | FAT32/ NTFS/ exFAT USB Device / Network |
| Network & Interfaces | |
| Network Interface | 2x RJ45 (10/100/1000Mbps) |
| Network Function | TCP/IP, DHCP, UDP, SMTP, NTP, CloudSEE |
| Smart Phone | Support iOS, Android App |
| Interoperability | ONVIF 2.4 |
| PTZ Interface | RS485 |
| Storage | |
| SATA | 16 SATA Interface |
| Capacity | Up to 10TB |
| USB | 2x USB2.0, 1x USB3.0 |
| General | |
| Power Supply | 100~240V/ 6~3A/ 50~60HZ |
| Consumption | ≤10W (Without HDD) |
| Working Temperature | -10°C ~ 55°C |
| Working Humidity | 10% ~ 90% |
| Dimensions | 530x144x483mm |
| Weight | ≤6.2Kg (Without HDD) |
JVS-ND912816-H-XMÂ | 128CH 16HDD H.265 NVR with 4K Output & Intelligent Coding
Product Overview
The JVS-ND912816-H-XM is a high-density, enterprise-grade network video recorder built for the most demanding large-scale surveillance installations. JVS-ND912816-H-XM supports a massive 128 IP camera channels and 16 internal hard drives with a capacity of up to 10TB each, offering unparalleled storage scalability and video input for campuses, city surveillance, and large industrial facilities. It leverages intelligent VSmart H.265+ coding to drastically reduce bandwidth and storage consumption while maintaining exceptional video quality. JVS-ND912816-H-XM is engineered for maximum reliability and functionality with dual network interfaces, dual HDMI and dual VGA outputs for multi-screen monitoring, 16 alarm inputs, 4 alarm outputs, and RS485 for PTZ control. With advanced intelligent analytics like human detection.
