JVS-ND9164-HZ 64CH 8HDD H.265 NVR
-with 4K Output, VSmart Coding & AI Human Detection
The JVS-ND9164-HZ is a 64-channel 8HDD H.265 NVR featuring 4K video output, VSmart coding, 8x10TB storage, AI human detection, and dual Gigabit network ports for advanced surveillance.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
Key Features
• Adopt the new Vstar GUI, easy to operate and run smoothly
• 4K Video Output
• Adopt the new VStar GUI, easy to operate and run smoothly
• Support intelligent coding VSmart, greatly reducing storage space
• Improved compatibility for HDD. Support 8x SATA max. of 10TB
• Support Alarm-In and Alarm-Out. 16 Input and 4 Output.
• Support RS485
• Support Intelligent Detection and Human Detection
Specifications
4CH 4K/9CH 5.0MP/ 11CH 4.0MP/ 13CH 3.0MP/16CH 2.0MP
| Model | JVS-ND9164-HZ |
| Video & Audio | |
| IP Camera Input | 64 Channel |
| Audio Input/ Output | 1 Channel RCA Output, 1 Channel RCA Input64 Channel Audio output through HDMI |
| Bandwidth I/O | 400Mbps/320Mbps |
| Display | |
| Interface | 1 HDMI, 1 VGA |
| Video Output | HDMI: 3840×2160/ 2560×1440/ 1920×1080/ 1440×900/ 1280×1024/ 1280×720/ 1024×768 |
| VGA: 1920×1080/ 1440×900/ 1280×1024/ 1280×720/ 1024×768 | |
| Max Decoding | 4K/5.0MP/ 4.0MP/ 1080P/ 960P/ 720P 30fps |
| Multi-Screen Display | 1/ 4/ 5/ 6 up to 64 |
| OSD | Camera Name & Time, Recording, Alarm Detecting, Remote connection,
Volume, Channel Number |
| Recording | |
| Compression | H.265/H.264 |
| Resolution | 4K/5.0MP/ 4.0MP/ 1080P/ 960P/ 720P |
| Record Mode | Manual, Schedule, Motion Detection |
| Video Detection & Alarm | |
| Trigger Events | Recording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer |
| Video Detection | Motion Detection, No Video Detection |
| Alarm-In & Out | 16CH Alarm Input; 4CH Alarm Output |
| Playback & Backup | |
| Sync Playback | 4CH 4K/9CH 5.0MP/ 11CH 4.0MP/ 13CH 3.0MP/16CH 2.0MP |
| Search Mode | Channel Number / Recording Type / Date |
| Playback Function | Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward,
Slow, Step, Full Screen, Snap, Sound On/Off, Zoom |
| Backup Mode | FAT32/ NTFS/ exFAT USB Device / Network |
| Network & Interfaces | |
| Network Interface | 2x RJ45 (10/100/1000Mbps) |
| Network Function | TCP/IP, DHCP, UDP, SMTP, NTP, CloudSEE |
| Smart Phone | Support iOS, Android App |
| Interoperability | ONVIF 2.4 |
| PTZ Interface | RS485 |
| Storage | |
| SATA | 8 SATA Interface |
| Capacity | Up to 10TB |
| USB | 2x USB2.0, 1x USB3.0 |
| General | |
| Power Supply | ATX |
| Consumption | ≤30 W (Without HDD) |
| Working Temperature | -10°C ~ 55°C |
| Working Humidity | 10% ~ 90% |
| Dimensions | 445×90.5x430mm |
| Weight | ≤ 8Kg (Without HDD) |
JVS-ND9164-HZÂ 64CH 8HDD H.265 NVR with 4K Output, VSmart Coding & AI Human Detection
Product Overview

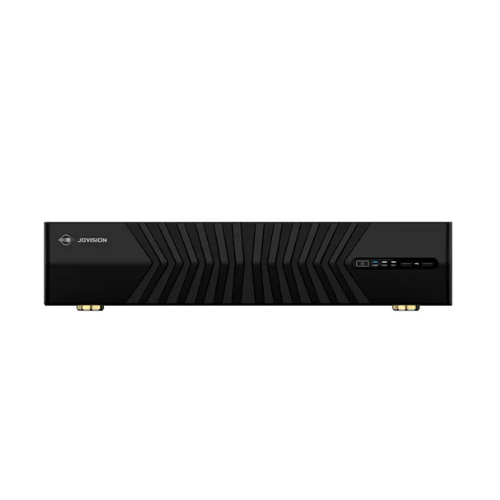

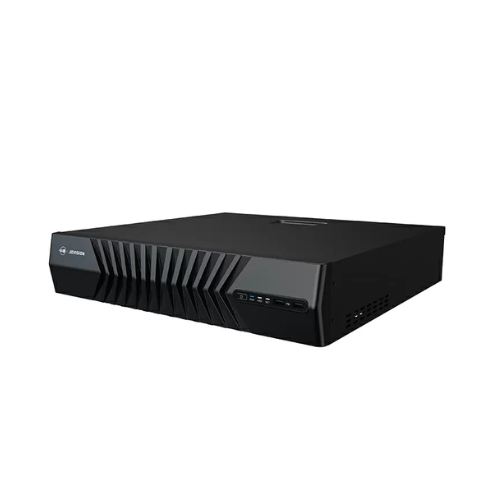

The JVS-ND9164-HZ is a high-performance 64-channel H.265 network video recorder designed for medium to large-scale enterprise surveillance systems. JVS-ND9164-HZ supports up to 8 hard drives with a massive 10TB capacity each, providing extensive storage for continuous recording. With intelligent VSmart coding technology, it significantly reduces bandwidth and storage usage while maintaining superior video quality. JVS-ND9164-HZ delivers 4K video output and advanced AI analytics including human detection and motion analysis for proactive security management. Featuring dual Gigabit network interfaces, 16 alarm inputs, 4 alarm outputs, RS485 for PTZ control, and ONVIF 2.4 compliance, the JVS-ND9164-HZ offers robust connectivity and flexibility for complex security environments. Ideal for commercial buildings, industrial sites.
