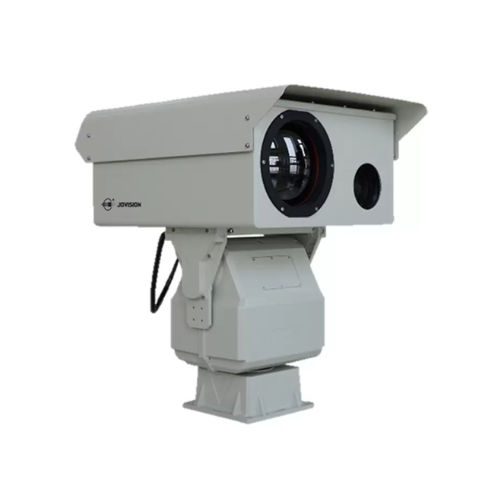

JVS-NL65-Z70 | Long Range Heavy-load PTZ Laser Camera
-with 70x Zoom & 3km Detection
The JVS-NL65-Z70 is a long range heavy-load PTZ laser camera featuring 70x optical zoom, 3km day detection, military laser, and anti-salt spray for professional surveillance.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
Key Features
• Long Range Laser Light
• 70x Optical and 32x Digital Zoom
• 7 ~ 500mm Visible Zoom Lens
• 3Km Distance Detection
• Support 360° Pan and Tilt
• Support Intelligent Functions
• Support Various Alarms
• Anti-salt Spraying Support
Specifications
| Model | JVS-NL65-Z70 |
| Detection Distance | |
| Day | 3Km |
| Night | 2Km |
| Visible Imaging | |
| Sensor Type | Back-illuminated ultra-low illumination starlight CMOS |
| Minimum Illumination | Color: 0.0005Lux;Black & White: 0.0001Lux; 0Lux (IRON) |
| Lens | 7 ~ 500mm HD motorized zoom;Manual/auto focus, 3A adaptive active focus algorithm,
supports multiple trigger modes, accurate and high-speed |
| Zoom | 70x Optical Zoom, 32x Digital Zoom |
| Image Processing | Supports White balance, electronic shutter, Frame accumulation, BLC, HLC,
2D/3D DNR, Electronic image stabilization, WDR, Heat wave drift suppression |
| Day and Night | 0.4 ~ 0.75μm visible light wide spectral window and 0.8 ~ 0.95μm near-infrared spectral window.
Day and night independent double clear light window, improve the signal-to-noise ratio of imaging light and stray light |
| Defog | Support digital defog, Optical defog |
| Laser Light Source | |
| Technology | Patented technology of the new infrared HD flood light super- homogenization light source.
No speckle particles and the brightness balance of all focal segments is > 92%. |
| Wavelength | 810nm military grade infrared laser |
| Illumination Angle | 0.7° ~ 20° |
| Laser Safety | Adopt ZQB safety laser beam processing patented technology,
in line with international IEC 60825 safety standards |
| Encapsulation | The luminous body is filled with inert gas and sealed to prevent oxidation |
| Lens Form | 50x f1.0～50mm ultra-short-focus zoom patent technology, laser 400μm cross-section imaging lens |
| Transmittance | Coated with multi-layer near-infrared anti-reflection coating, high-efficiency laser coupling |
| Synchronous Control | DSS digital stepping lighting angle control technology, 0.1° precise follow-up control,
automatic tracking or manual fine-tuning intelligent matching method |
| Synchronization Effect | The laser synchronization effect adjusts the modes of in-cut, outer-cut, full-screen coverage, etc.,
and can be set arbitrarily according to the scene remotely |
| Optical Axis Alignment | SLM dual optical axis electric self-locking alignment device, the accuracy can reach 0.01° |
| Power | 12W |
| Audio & Video | |
| Image Resolution | 1920×1080; 1280×1024; 1280×960; 1024×768; 1280×720; 704×576; 640×512;
640×480; 400×300; 384×288; 352×240 |
| Video Encoding | H.265/H.264/MJPEG, Support multi-stream |
| Video Bitrate | 32Kbps ~ 16Mbps |
| Audio Codec | G.711A / G.711U/ G726 |
| Image Flip | Left/ Right/ Up/ Down/ Diagonal |
| OSD Settings | Support OSD display settings of channel name, time, PTZ orientation, field of view angle,
focal length, and support preset name setting. |
| Enhancements | |
| Ranging | Support passive ranging |
| Camera Diagnosis | Support network disconnection alarm, support IP conflict alarm, support illegal access alarm,
support SD card abnormal alarm, video blocking alarm |
| Laser Setting | Support electric alignment adjustment, pan and tilt speed can be set,
and motor status can be obtained; support laser synchronization, optional laser spot incision, outer incision, full screen; support manual adjustment of laser aperture |
| Resume Upload | Support |
| Power-off Memory | Support to restore the position before power-off, preset position status, cruise status, line scan status |
| Remote Maintenance | With fault query, self-check, remote restart functions; online upgrade, remote upgrade |
| Configuration File | Support configuration file import and export functions |
| Smart Function | |
| Intelligent Analysis | Support intrusion detection, out-of-bounds detection, entry/exit area detection, motion detection,
loitering detection, crowd gathering, fast movement, target tracking, item leftover, item retrieval; |
| Deep Learning | Support person/vehicle/animal identification, support ship identification,
support fireworks identification |
| Automatic Tracking | Support single scene tracking / Multi scene tracking / Panorama tracking / Alarm linkage tracking |
| Intelligent Information Fusion | Support 512 AR intelligent information fusion, Support fire point,
Intelligent analysis video identification information function, Support azimuth angle, Field angle, Focal length, Multiple information fusion |
| Alarm Management | Support alarm snapshot upload |
| Security Control | |
| Access Alarm | Illegal access times and lock time can be set |
| 3 Level User | Support three-level user rights management, administrator, operator, common user |
| Security Mode | Authorized username and password, support IP whitelist and blacklist, MAC whitelist and blacklist |
| PTZ | |
| Range | Pan 0°~360°, Tilt -45° ~ +45° |
| Rotational Speed | Horizontal 0.01°/Sec ~ 30°/Sec, Vertical 0.01°/S ~ 15°/Sec,
Support lens focal length speed adaptive function |
| Preset Cruise | 3000 presets, support 16 cruise routes, each can support 256 presets |
| Watch | Preset position/pattern scan/cruise scan/vertical scan/frame scan/panorama scan
/apple peel scan/horizontal fan scan line scan |
| Zoom | Support 3D frame selection zoom |
| Memory | Support (Can restore the position before power-off, preset position status,
cruise status, line scan status) |
| Orientation | Support angle query/real-time return, positioning; support lens field of view return and positioning |
| Zero-point Correction | Support the north zero-point remote correction function |
| Wipers | Support |
| Network | |
| Interface | 1x RJ 45, 10/100 Base-T adaptive |
| Protocols | HTTP, HTTPS, FTP, SMTP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP,
DHCP, ONVIF, GB28181 |
| Development | Easy to use SDK available |
| General | |
| Power Supply | DC 24V, |
| Power Consumption | ≤150W |
| Working Temperature | -40°C ~ +60°C |
| Storage Temperature | -45°C ~ +70°C |
| Humidity | <95%Rh |
| Lightning Protection | Built-in surge protection 6000V |
| Anti-salt Spray | PH value of 6.5 to 7.2, continuous spraying for 96 hours |
| Defrost | Supports window defrosting |
| Ingress Protection | IP66 |
| Structure Material | Split design, the whole adopts high-strength aluminum alloy material |
| Weight | 35Kg (Including the mount) |
JVS-NL65-Z70 | Long Range Heavy-load PTZ Laser Camera with 70x Zoom & 3km Detection
Product Overview
The JVS-NL65-Z70 is a professional long range PTZ laser camera designed for advanced surveillance applications requiring exceptional zoom capabilities and all-weather performance. The JVS-NL65-Z70 delivers superior imaging with a massive 70x optical zoom and 32x digital zoom (7-500mm lens) that provides 3km daytime detection and 2km nighttime detection ranges. Featuring an 810nm military-grade infrared laser with 12W power and advanced DSS digital stepping technology, this camera offers precise illumination control from 0.7° to 20° angles. The JVS-NL65-Z70 incorporates anti-salt spray protection, IP66 rating, window defrosting, and operates in extreme temperatures from -40°C to +60°C, making it ideal for coastal and harsh environments. With advanced AI analytics including deep learning for person/vehicle/ship identification, 360° pan.
