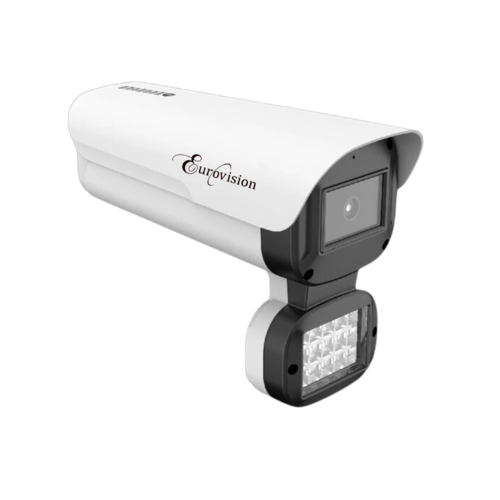

EV-HQ009-BLFC31-DF | Black Light Fighter Bullet Camera
-with Human Detection & PoE
The EV-HQ009-BLFC31-DF is a 3MP Black Light Fighter bullet IP camera featuring extreme low-light performance, human detection, built-in PoE, and dual audio for superior surveillance.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
Key Features
- 1. Resolution up to 3MP(2304X1296), 2MP(1920×1080)
- 2. Built-in human detection algorithm, support human detection in complex environments
- 3. Support low bit rate and low latency
- 4. S265/H.265 efficient compression, saving bandwidth and storage space
- 5. Support black light full color night vision
- 6. ICR filter-type automatic switching for real day and night monitoring
- 7. Support built-in PoE , built-in Mic & Speaker
- 8. Support 3D digital noise reduction
- 9. Support automatic electronic shutter function to adapt to different monitoring environments
- 10. Support ONVIF, SLINK protocol
Specification
EV-HQ009-BLFC31-DF- Black Light/Black Fighter –
| Specification | ||||||||
| Basic Parameter | ||||||||
| Model | HO-B009-25-G4-PMS | |||||||
| Smart Function | Human detection | |||||||
| Main Chipset | T31N | |||||||
| Image Sensor | 1/2.7″, 2MP progressive scan ultra-low illumination CMOS S327 | |||||||
| Effective Pixels | 3MP | |||||||
| Min. Illumination | Color：0.0001Lux@F1.0; B&W：0Lux@F1.0(IR on) | |||||||
| Lens | F1.0 4mm lens | |||||||
| IR Distance | 65 (12pcs lamps) | |||||||
| Noise Reduction | 3D noise reduction | |||||||
| WDR | DWDR (off / low / medium / high) | |||||||
| Mirror | Off / horizontal mirroring / vertical mirroring / 180 ° rotation | |||||||
| Image Setting | Brightness / contrast / sharpness / saturation / chroma | |||||||
| Human Detection | ||||||||
| Responding Speed | ≤1s | |||||||
| Maximum Detection Frame Rate | 5fps/s (color image) | |||||||
| Detection Area | Support specified area, default full screen | |||||||
| Shielded Area | Support 4 areas setting | |||||||
| Upload Method | Private protocol upload | |||||||
| Trigger Method | Video trigger | |||||||
| Video and Audio Coding | ||||||||
| Encoding Format | S265/H.265/H.264 | |||||||
| Coding Characteristics | Main stream: 3MP 2304X1296@20fps, 2MP 1920×1080@25fps, 720P 1280X720@25fps Sub stream:D1(720X576), VGA(640X480), Q720P(640X360), CIF(352X288), 320X240 |
|||||||
| Video Bit Rate | Fixed bit rate, variable bit rate(1280kbps-4Mbps) | |||||||
| Video Type | Composite stream / video stream | |||||||
| Audio Coding Standard | G.711U/64Kbps | |||||||
| Network Function | ||||||||
| Network Interface | 1*RJ45 10M/100M self-adaptive LAN port | |||||||
| Network Protocol | TCP/IP, UDP, HTTP, DHCP, RTSP, NTP | |||||||
| Interface Protocol | ONVIF | |||||||
| Port | ||||||||
| Network Interface | RJ45 10M/100M network adaptive | |||||||
| POE | Built-in PoE | |||||||
| Audio | Built-in Mic & Speaker | |||||||
| General | ||||||||
| Operation T/H |  – 20°C ~ 50°C / 0﹪-90﹪ | |||||||
| Waterproof | IP66 | |||||||
| Power Supply | DC12V / PoE | |||||||
| Power Consumption | <10W (MAX) | |||||||
| Dimension (mm) | Equipment: 90(W)X155(H)X205(L)mm | |||||||
| Weight/PCS (g) | N.W.: 500g   Packing: 600g | |||||||
| Outside Carton | 26pcs/carton; 615mm(W)×505mm(H)×485mm(L); Weight: 17.2kg | |||||||
EV-HQ009-BLFC31-DF | Black Light Fighter 3MP Bullet Camera with Human Detection & PoE
Product Overview
The EV-HQ009-BLFC31-DF is a high-performance 3MP bullet camera designed for exceptional surveillance in extreme low-light conditions. The EV-HQ009-BLFC31-DF stands out with its revolutionary Black Light Fighter technology, capturing full-color video in near-total darkness (0.0001Lux) thanks to its ultra-sensitive sensor and F1.0 aperture lens. This metal-constructed camera features advanced human detection analytics for accurate intrusion alerts and comes with built-in PoE for simplified installation. With 65-meter IR distance, built-in microphone and speaker for two-way audio, and IP66 weatherproof rating, the EV-HQ009-BLFC31-DF delivers professional-grade security for perimeter protection, large properties, and critical infrastructure monitoring.
