- Full-Color with Dual Smart Illumination
- Agi Sense Technology for accurate Humanoid Detection and Vehicle Detection
- Built-in Mic and Speaker
- AI-ISP for excellent video performance
- Equipped With unique VQC (Video Quality Catalyst) Technology
- Integrated with unique SAFE function

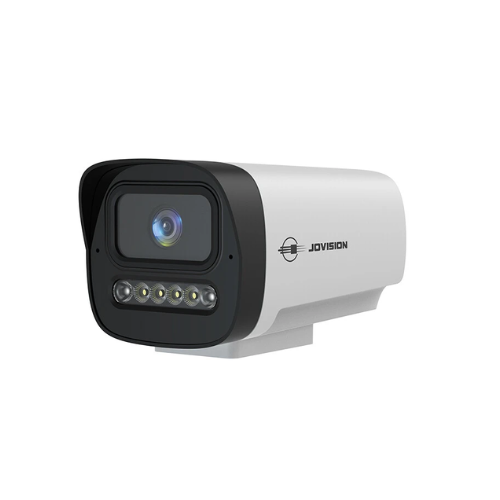

JVS-N617-UDL 6.0MP Full-Color PoE Network Camera
-PoE Network Camera with AI Detection & Two-Way Audio
The JVS-N617-UDL is a 6.0MP Full-Color PoE Network Camera featuring dual smart illumination, AI human/vehicle detection, built-in mic & speaker, and VQC technology for crystal-clear video.
41 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:4 days
Guarantee Safe and Secure Payment Checkout
| Video | |
| Image Sensor | 1/3″ CMOS Sensor |
| Max Resolution | 3200×1800 |
| Effective Pixels | 6.0MP |
| Compression Standard | H.264/H.265 |
| Framerate | 25fps |
| Bitrate | Main Stream: 256Kbps ~ 10Mbps
Sub Stream: 68Kbps~3072Kbps |
| SNR (dB) | 49.3dB |
| Min. Illumination | 0Lux (light ON) |
| Interface Type | M12 |
| Lens | 3.6mm |
| FOV | 3.6mm:H 81.5°, V 40.3°, D 93.8° |
| Function | |
| Audio Codec | G.711U/G.711A (default) |
| Exposure Control | Auto, HLC, BLC |
| White Balance | Auto |
| Gain Control | Auto |
| OSD Information Setting | Large font OSD, OSD flashing on alarm, OSD position settings |
| SNTP | Support |
| Schedule Reboot | Support |
| Smart Defog | Support |
| Motion Detection | Support Humanoid Detection & Vehicle Detection |
| Image Setting | Support Saturation, Brightness, Contrast, Sharpness adjustment |
| Image Style | Standard, Soft, Transparent |
| Day and Night Function | Auto, Always Black & White, Always Color, Scheduled Color |
| Privacy Mask | Support up 8 areas |
| Night Vision Optimization | Support |
| WDR | Support |
| Screen Settings | Screen mirroring, Screen flipping |
| IP Adaptation | Support automatic adaptation of IP address (Optional) |
| Alarm Method | Email Alarm, Client Alarm |
| Remote Operation | System, Audio and Video, Image, Alarm, Network management |
| Audio Function | Built-in Mic x 2 and Speaker x 1 |
| VQC Technology | Support |
| SAFE Function | Support |
| Network | |
| Ethernet | 10/100Mbps Ethernet |
| Stream | 2x Streams |
| Network Protocols | HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| ONVIF | Standard ONVIF |
| Network Transmission | CloudSEE 2.0 |
| Browser | IE8+, Chrome18+, Firefox5.0+, Safari5.02+ |
| User | Up to 13 Users |
| App | Support iOS/Android |
| General | |
| Lights | 6 White LEDs + 6 IR LEDs |
| IR Distance | Up to 60 Meters |
| White Led Distance | Up to 50 Meters |
| Waterproof Level | IP67 |
| Power Supply | DC12V or PoE (IEEE802.3af) |
| Power Consumption | <10W |
| Working Temperature | -30°C ~ 60°C |
| Working Humidity | 5% ~ 93% Rh |
| Color/Material | Black & White/Metal + Plastic |

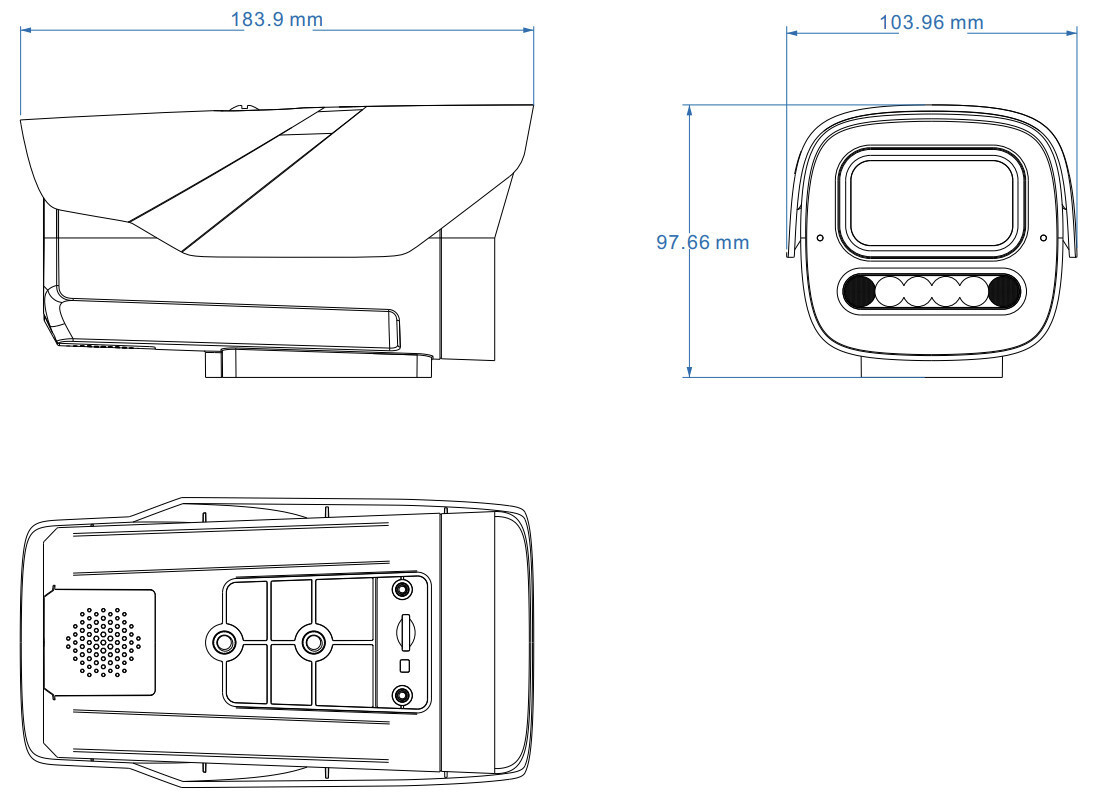

| Dimensions (W x H x D) | 94.5x94x174.5mm |
| Weight | 400g |
| Installation Method | Ceiling Mount, Wall Mount |
JVS-N617-UDL 6.0MP Full-Color PoE Network Camera with AI Detection & Two-Way Audio
Product Overview:
The JVS-N617-UDL is a high-definition 6.0MP Full-Color PoE Network Camera designed for advanced security surveillance. With Agi Sense Technology, it delivers precise humanoid and vehicle detection, while dual smart illumination ensures vibrant, detailed footage even in low-light conditions. The built-in mic and speaker enable seamless two-way communication, and AI-ISP enhances image clarity. Equipped with VQC (Video Quality Catalyst) Technology and the SAFE function, the JVS-N617-UDL provides reliable, high-quality monitoring for any security setup.
