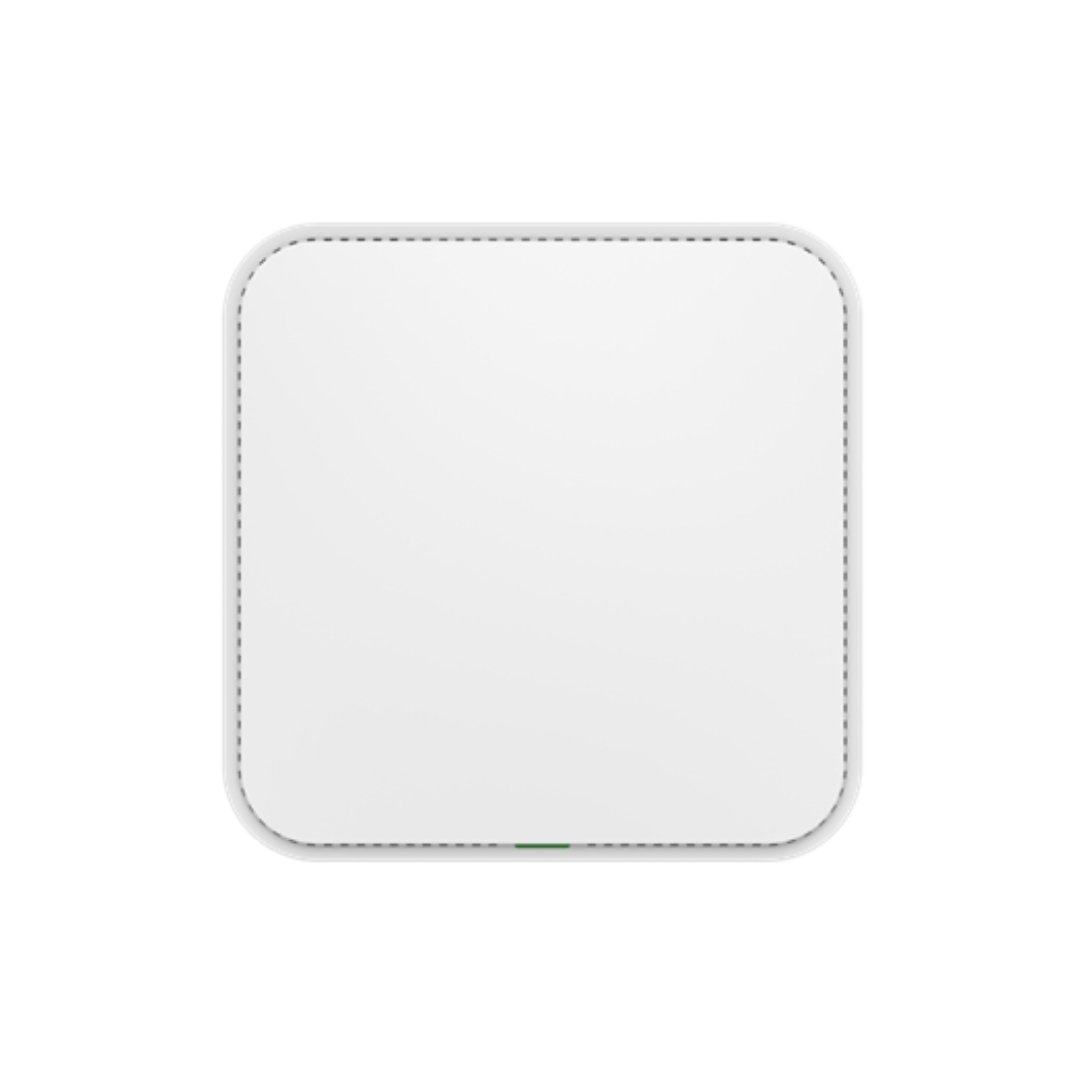

Genata GNT-AP835 AX3000 Dual-Band Indoor Ceiling Access Point

Brand:
Genata

Genata GNT-AP835 is an indoor dual-band 802.11ax ceiling access point offering up to 3000Mbps concurrent wireless speed, with 574Mbps on 2.4GHz and 2402Mbps on 5GHz. It supports 48V PoE and DC 12V power and features a sleek, concealed-port design for clean installation.

  • AX3000 Dual-Band Wi-Fi
  • High-Speed Wireless
  • 802.11ax Technology
  • Hardware Watchdog
  • Elegant Ceiling Design
  • Dual Power Options
  • Indoor Ceiling Installation
77 people are viewing this product right now

Contact Us
Categories: ,

Have any Questions?

Feel free to Get in touch

Genata GNT-AP835 is a high-performance indoor dual-band ceiling access point designed to deliver fast and reliable wireless connectivity. Built with 802.11ax (Wi-Fi 6) technology, it supports both 2.4GHz and 5GHz wireless bands, offering a combined concurrent speed of up to 3000Mbps.

The 2.4GHz band provides speeds of up to 574Mbps, while the 5GHz band can deliver up to 2402Mbps, making the GNT-AP835 suitable for environments where multiple users and devices need a stable, high-speed wireless connection.

With its clean ceiling-mounted design, concealed ports, and flexible power options, the GNT-AP835 offers both performance and a neat installation experience. It supports 48V PoE and DC 12V power, while the built-in hardware watchdog helps automatically recover the device from abnormal conditions for easier maintenance.

Genata GNT-AP835 Technical Specifications

Specification Details
Model GNT-AP835
CPU MT7981B + MT7976CN + 7531AE
Flash Memory SPI NOR 16MB
RAM DDR3 256MB
2.4GHz Frequency 2.4GHz – 2.484GHz
2.4GHz Wi-Fi Standard 802.11 b/g/n/ax
5GHz Frequency 5.150GHz – 5.850GHz
5GHz Wi-Fi Standard 802.11 a/n/ac/ax
2.4GHz Antenna 2 × 2.4GHz, Gain: 4.6dBi
5GHz Antenna 2 × 5GHz, Gain: 4dBi
Wireless Data Rate 2.4GHz: Up to 574Mbps; 5GHz: Up to 2402Mbps
2.4GHz EVM 802.11b: ≤ -10dB; 802.11g: ≤ -25dB; 802.11n: ≤ -28dB; 802.11ax: ≤ -35dB
5GHz EVM 802.11a: ≤ -25dB; 802.11n: ≤ -28dB; 802.11ac: ≤ -32dB; 802.11ax: ≤ -35dB
Frequency Stability ±20ppm
WAN Port 1 × 10/100/1000M WAN, supports 48V PoE
LAN Port 1 × 10/100/1000M LAN
Reset 1 × Reset Button
LED Indicators Triple Color: SYS (Red), 2.4G (Green), 5.8G (Blue)
Power Supply PoE 802.3af; DC 12V/1.5A
Max. Power Consumption <15W
Dimensions 186 × 186 × 37 mm
Weight 0.55 kg
Operating Temperature -20°C to 45°C
Storage Temperature -40°C to 70°C
Humidity 5%–95% (Non-Condensing)
ESD Protection Air: ±8K; Contact: ±4K
Electrical Surge Protection Common Mode: 2K; Differential Mode: 1K

Firmware Specifications

Feature Details
Working Mode Gateway, AP
Multiple SSID 2.4GHz: Up to 4 SSIDs; 5GHz: Up to 4 SSIDs
SSID Hidden Supported
Seamless Roaming Supported
5G Priority Supported
Wireless Security Open, WPA, WPA2PSK_TKIPAES, WPA2_EAP, WPA3
MAC Filter Supported
Wi-Fi Schedule Wi-Fi time on/off supported
Client Isolation Supported
RF Power Adjustment Supported
User Limit Maximum 64 users per band
VLAN Settings Supported
Cloud Access Supported in Gateway mode
Configuration Backup Supported
Configuration Restore Supported
Factory Reset Supported
Device Reboot Immediate or scheduled reboot
Admin Management Password modification supported
Firmware Upgrade Supported
System Log Supported
Management Web GUI, AC Controller, Remote Management & Cloud Management
Protocol IPv4

Wireless Power & Receive Sensitivity

Band Standard / Mode Power / Receive Sensitivity
2.4GHz 802.11b 11M / 1M 22±2dBm / 22±2dBm
2.4GHz 802.11g 54M / 6M 19±2dBm / 21±2dBm
2.4GHz 802.11n HT20 MCS7 / MCS0 18±2dBm / 20±2dBm
2.4GHz 802.11n HT40 MCS7 / MCS0 18±2dBm / 20±2dBm
2.4GHz 802.11ax HT20 MCS11 / MCS0 16±2dBm / 20±2dBm
2.4GHz 802.11ax HT40 MCS11 / MCS0 16±2dBm / 20±2dBm
5GHz 802.11a 54M / 6M 19±2dBm / 21±2dBm
5GHz 802.11n HT20 MCS7 / MCS0 18±2dBm / 20±2dBm
5GHz 802.11n HT40 MCS7 / MCS0 18±2dBm / 20±2dBm
5GHz 802.11ac HT20 MCS7 / MCS0 17±2dBm / 20±2dBm
5GHz 802.11ac HT40 MCS7 / MCS0 17±2dBm / 20±2dBm
5GHz 802.11ac HT80 MCS9 / MCS0 17±2dBm / 19±2dBm
5GHz 802.11ax HT20 MCS11 / MCS0 16±2dBm / 20±2dBm
5GHz 802.11ax HT40 MCS11 / MCS0 16±2dBm / 20±2dBm
5GHz 802.11ax HT80 MCS11 / MCS0 16±2dBm / 19±2dBm
5GHz 802.11ax HT160 MCS11 / MCS0 14±2dBm / 18±2dBm

Receive Sensitivity

Band Standard / Mode Sensitivity
2.4GHz 802.11b 11M / 1M -87dBm / -96dBm
2.4GHz 802.11g 54M / 6M -75dBm / -93dBm
2.4GHz 802.11n HT20 MCS7 / MCS0 -73dBm / -92dBm
2.4GHz 802.11n HT40 MCS7 / MCS0 -70dBm / -89dBm
2.4GHz 802.11ax HT20 MCS11 / MCS0 -64dBm / -92dBm
2.4GHz 802.11ax HT40 MCS11 / MCS0 -61dBm / -89dBm
5GHz 802.11a 54M / 6M -74dBm / -92dBm
5GHz 802.11n HT20 MCS7 / MCS0 -73dBm / -90dBm
5GHz 802.11n HT40 MCS7 / MCS0 -70dBm / -87dBm
5GHz 802.11ac HT20 MCS7 / MCS0 -67dBm / -91dBm
5GHz 802.11ac HT40 MCS7 / MCS0 -63dBm / -88dBm
5GHz 802.11ac HT80 MCS9 / MCS0 -60dBm / -84dBm
5GHz 802.11ax HT20 MCS11 / MCS0 -62dBm / -91dBm
5GHz 802.11ax HT40 MCS11 / MCS0 -59dBm / -89dBm
5GHz 802.11ax HT80 MCS11 / MCS0 -56dBm / -86dBm
5GHz 802.11ax HT160 MCS11 / MCS0 -53dBm / -83dBm
