EV-G0821GB-C | 8 Port PoE+ Gigabit Switch

-with 2 Uplink Ports & SFP Slot

The EV-G0821GB-C is an 8-port Gigabit PoE+ switch featuring 120W total power, 30W per port, 250m transmission, and dual uplink ports with SFP for flexible network expansion.

46 people are viewing this product right now

Have any Questions?

Feel free to Get in touch

EV-G0821GB-C | 8 Port PoE+ Gigabit Switch with 2 Uplink Ports & SFP Slot

Product Overview

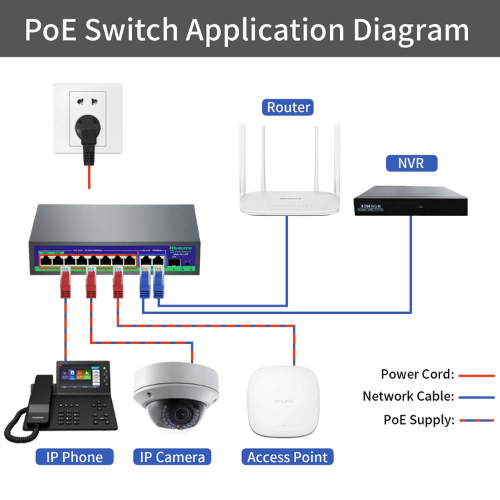

The EV-G0821GB-C is a high-performance 8-port Gigabit PoE+ switch designed for robust network infrastructure and power-over-Ethernet applications. The EV-G0821GB-C delivers exceptional flexibility with 8×10/100/1000Mbps PoE+ RJ45 ports, each capable of providing up to 30W of power, with a total power budget of 120W to support multiple high-power devices simultaneously. This advanced switch features two 10/100/1000Mbps RJ45 uplink ports and one 1000Mbps SFP uplink port for scalable network expansion and fiber connectivity options. With support for 250-meter long-distance transmission, VLAN functionality, and IEEE 802.3af/at standards, the EV-G0821GB-C is ideal for IP surveillance systems, VoIP phone networks, wireless access point deployments, and business networks requiring reliable power and data transmission over single cables.

Specification
Network Standard IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at
Port 8*10/100/1000Mbps PoE RJ45 port

2*10/100/1000Mbps RJ45 uplink port

1*1000Mbps SFP uplink port

POE Power 8*10/100/1000Mbps RJ45 port support POE+

The whole power max. is 120W

Each port max. power supply reached 30W

POE Connection 1-8 port support IEEE802.3af/at

Both1/2+、3/6- and 4/5+、7/8-

End-span

250M Transmission(Manually Open)

Performance Store and forward

MAC address table 2k

Switching capacity12Gbps

Forwarding Rate 10BASE-T:14880PPS/port

100BASE-tx:14800pps/port

1000BASE-tx:148000pps/port

Port Function Power priority mechanism, fast and forward, MAC automatic

learning and aging IEEE802.3X Full-duplex and backpressure for half-duplex mode

Environment Operating Temperature:-10℃ – -55℃
Power Built in power base board

Input:220V,50HZ,Output:DC52V±5% 2.3A

≤120W

Weight &Size 1KG

200mm×118mm×44mm(L×W×H)
