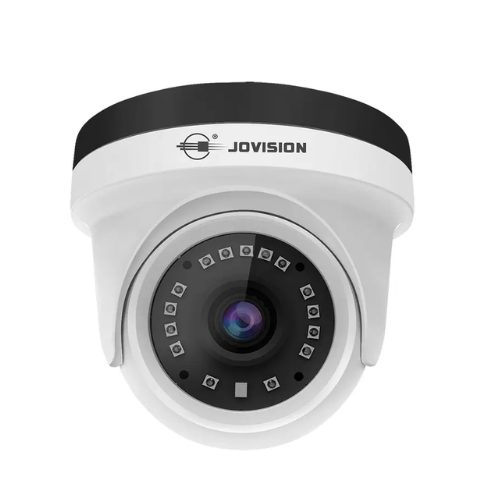

JVS-A530-YWC | 5MP Dome HD Camera
-with Coaxial Output & 4KV Lightning Protection
The JVS-A530-YWC is a 5MP dome HD camera featuring coaxial HD output, 4KV lightning protection, low-light performance, and UTC control for reliable surveillance.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
Key Features
• 1/2.8″ 5.0MP CMOS Sensor
• All-in-one coaxial HD output, clear and delicate images
• Illuminance, 0.05Lux@ (F2.0, AGC ON), 0LUX with IR
• Support OSD menu control, suitable for user-defined settings
• Adaptive Digital Noise Reduction, 2D-DNR
• Support coaxial control (UTC)
• Video 4KV lightning protection. Large capacitor power supply design
Specifications
| Model | JVS-A530-YWC | |
| Camera | ||
| Image Sensor | 1/2.8″ CMOS Sensor | |
| Image Resolution | 2560×1944 | |
| Effective Pixels | 5.0MP | |
| TV System | PAL/NTSC | |
| Electronic Shutter | Auto | |
| S/N Ratio | ≥37dB | |
| Min. Illumination | 0.05Lux@ (F2.0, AGC ON), 0LUX with IR | |
| Scanning System | Progressive Scan | |
| Lens | ||
| Lens | Board Lens 4.0mm/F2.0 | |
| Lens Type | Fixed | |
| Auto Iris Support | N/A | |
| Night Vision | ||
| Infrared SMD LED | 14µ x 15Pcs | |
| Infrared Distance | 30m. | |
| IR Cut Filter | Yes | |
| IR Status | Under 0.1 Lux by CDS | |
| IR Power On | CDS Auto Control | |
| Day & Night | Auto (ICR) / Color / B&W | |
| Camera Features | ||
| OSD Menu Language | Optional | |
| White Balance | Auto | |
| Gain Control | Auto | |
| Noise Reduction | 2D DNR | |
| Picture Adjustment | N/A | |
| WDR | Yes | |
| OSD Support | Optional | |
| UTC | Support | |
| Starlight | Support | |
| General | ||
| Housing | Plastic | |
| Bracket | Yes | |
| Operation Temperature | -10°C ~ 50°C | |
| Working Humidity | 10% ~ 90% | |
| Power Source | DC12V±10%, 230mA | |
| Dimension | 100x100x85mm | |
| Weight | ≤190g | |
JVS-A530-YWC | 5MP Dome HD Camera with Coaxial Output & 4KV Lightning Protection
Product Overview
The JVS-A530-YWC is a high-performance 5MP dome HD camera designed for superior image quality and reliable operation in various surveillance environments. The JVS-A530-YWC features a advanced 1/2.8″ 5.0MP CMOS sensor that delivers exceptional resolution through all-in-one coaxial HD output, making it ideal for upgrading existing analog systems without replacing cabling infrastructure. With illuminance as low as 0.05Lux in color mode and 0Lux with IR activation, this camera ensures excellent low-light performance for 24/7 monitoring. The JVS-A530-YWC supports OSD menu control for user-defined settings, adaptive 2D digital noise reduction for cleaner images, and coaxial control (UTC) for easy configuration. Featuring 4KV lightning protection and robust power supply design, this dome camera is perfect for residential, commercial.
