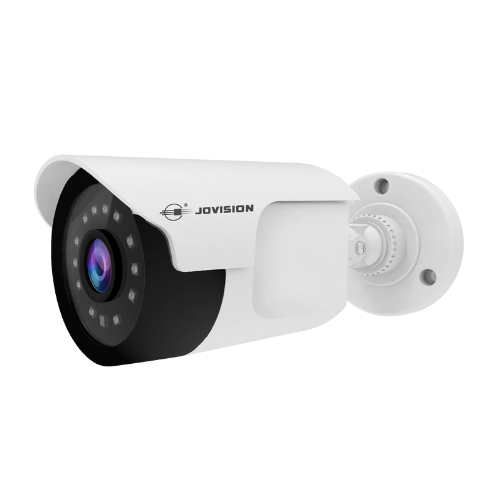

JVS-A815-YWC | 2MP Bullet HD Camera
-with 20m IR & Multi-Format Output
The JVS-A815-YWC is a 2MP bullet HD camera featuring 20m IR night vision, multi-format output, IP66 rating, and coaxial control for easy HD upgrades.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
Key Features
• 1/3″ 2.0MP CMOS Sensor
• Full HD resolution 1920 x 1080
• 15Pcs IR LEDs, IR Range 20m.
• Support TVI, AHD, CVI, CVBS output
• UTC Coaxial Control
• Easy installation, HD video transfer over coaxial cable
• Ingress Protection IP66
Specifications
| Model | JVS-A815-YWC | |
| Camera | ||
| Image Sensor | 1/3″ CMOS Sensor | |
| Image Resolution | 1920×1080 | |
| Effective Pixels | 2.0MP | |
| TV System | PAL/NTSC | |
| Electronic Shutter | Auto | |
| S/N Ratio | ≥50dB | |
| Min. Illumination | 0.05Lux@ (F2.0, AGC ON), 0LUX with IR | |
| Scanning System | Progressive Scan | |
| Lens | ||
| Lens | Board Lens 4mm/F2.0 | |
| Lens Type | Fixed | |
| Auto Iris Support | N/A | |
| Night Vision | ||
| Infrared SMD LED | 10µ x 15 Pcs. | |
| Infrared Distance | 20m. | |
| IR Cut Filter | Yes | |
| IR Status | Under 10 Lux by CDS | |
| IR Power On | CDS Auto Control | |
| Day & Night | Auto (ICR) / Color / B&W | |
| Camera Features | ||
| OSD Menu Language | Support | |
| White Balance | Auto | |
| Gain Control | Auto | |
| Noise Reduction | N/A | |
| Picture Adjustment | N/A | |
| WDR | N/A | |
| OSD Support | Not Support | |
| UTC | Support | |
| General | ||
| Housing | Plastic | |
| Bracket | Yes | |
| Operation Temperature | -20°C ~60°C | |
| Working Humidity | 10% ~ 90% | |
| Power Source | DC12V±10%, 250mA | |
| Dimension | 180x75x85mm | |
| Weight | ≤230g | |
JVS-A815-YWC | 2MP Bullet HD Camera with 20m IR & Multi-Format Output
Product Overview
The JVS-A815-YWC is a versatile 2MP bullet HD camera designed for easy integration with existing analog systems while delivering full HD 1080p resolution. The JVS-A815-YWC features a 1/3″ CMOS sensor that provides clear 1920×1080 resolution through multi-format support (TVI, AHD, CVI, CVBS), making it compatible with virtually any analog or HD hybrid system without requiring cable replacement. With 15 high-power IR LEDs offering 20-meter night vision and low-light sensitivity down to 0.05Lux, this camera ensures reliable 24/7 monitoring in various lighting conditions. The JVS-A815-YWC supports UTC coaxial control for easy configuration and features IP66 weatherproof rating for outdoor durability. This camera is perfect for residential.
