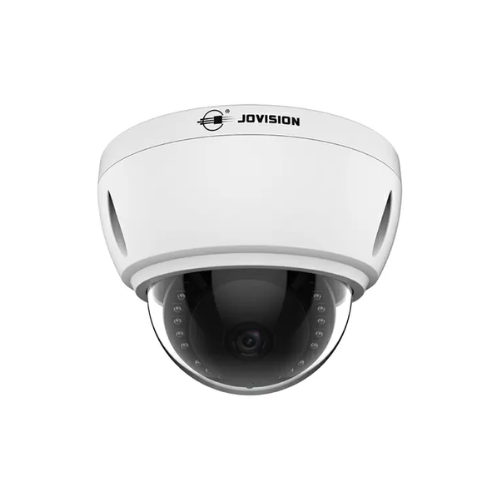

JVS-N3122SL | 2MP Vandalproof Starlight PoE IP Camera
-with 20m IR & IP66 Rating
The JVS-N3122SL is a 2MP vandalproof starlight PoE IP camera featuring exceptional low-light performance, 20m IR, IP66 rating, and aluminum construction for durable surveillance.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
Key Features
• Resolution 1920×1080@20fps.
• Ingress Protection IP66.
• PoE IEEE 802.3af.
• 18x IR-LED, up to 20 Meters.
• Supports CloudSEE APP on iOS/Android.
• ONVIF 2.4, Compatible with ONVIF Recorder.
• Support Behavior analysis.
Specifications
| Model | JVS-N3122SL |
| Video | |
| Image Sensor | 1/2.7” CMOS |
| Max. Resolution | 1920×1080 |
| Effective Pixels | 2.0MP |
| Compression Standard | H.265/H.264 |
| Framerate | 30fps |
| Bitrate | 261Kbps~8129Kbps |
| SNR (dB) | 38.4dB |
| Illumination | 0.05Lux |
| Lens | |
| Lens | 2.8mm / 4mm |
| Viewing Angle | 2.8 mm: H 92.5°, V 59.9°, D: 108.5°4 mm: H 79.6°, V 47.7°, D: 97.8° |
| IR-LEDs | 18x IR LEDs |
| IR-Distance | Up to 20m. |
| Function | |
| Exposure Control | Auto |
| White Balance | Auto |
| Image Enhancement | 3D DNR |
| Advanced OSD | Support OSD large font function, OSD flashing on alarm, OSD and time to set the position separately |
| Motion Detection | Support |
| Image Setting | Rotate, Saturation, Brightness, Contrast, Sharpness |
| Day and Night Function | Day and night automatic switching |
| Privacy Mask | Support up 8 areas |
| Intelligent Analysis | Not Support |
| Alarm Method | Email Alarm, Client Alarm |
| Remote Operation | System, Audio and video, Image, Alarm,Network management |
| Starlight | Support |
| Network | |
| Ethernet | 1x RJ45 10M / 100M Ethernet |
| Stream | 2x Streams |
| Protocols | HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| Interoperability | ONVIF 2.4 |
| Network Transmission | CloudSEE 2.0 |
| Browser | IE8+, Chrome18+, Firefox5.0+, Safari5.02+ |
| User | Up to 13 Users |
| App | Support iOS/Android |
| General | |
| Power Supply | DC12V/2A, IEEE 802.3af PoE |
| Consumption | <3W (During day); <7W (At night) |
| Working Temperature | -20°C ~ 60°C |
| Working Humidity | 10% ~ 90% Rh |
| Material | Aluminum |
| Dimensions | 120×90 mm |
| Weight | 500g |
| Waterproof | IP66 |
JVS-N3122SL 2MP Vandalproof Starlight PoE IP Camera.pdf
JVS-N3122SL | 2MP Vandalproof Starlight PoE IP Camera with 20m IR & IP66 Rating
Product Overview
The JVS-N3122SL is a rugged 2MP vandalproof starlight PoE IP camera designed for reliable surveillance in challenging environments and low-light conditions. The JVS-N3122SL delivers 1080p full HD resolution at 30fps and features exceptional starlight technology with 0.05Lux illumination sensitivity, ensuring clear imaging in near-darkness. Built with durable aluminum construction and IP66 weatherproof rating, this camera withstands harsh conditions and attempted vandalism. With 18 IR LEDs providing up to 20 meters of night vision and optional 2.8mm or 4mm lens choices, the JVS-N3122SL offers flexible coverage options for various surveillance scenarios. The camera supports advanced features including 3D digital noise reduction, motion detection, privacy masking, and CloudSEE app compatibility for remote monitoring.
