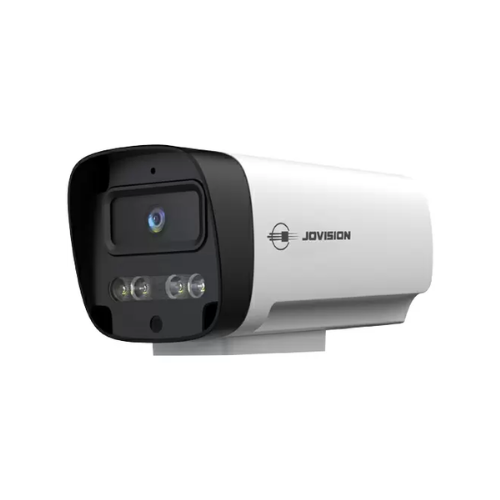

JVS-N517-TDL 5MP Smart Dual-Light Bullet Camera
-Human Detection & Two-Way Audio
The JVS-N517-TDL is a 5MP full-color bullet camera featuring smart light activation (4 warm + 4 IR LEDs), human detection, VQC technology, and IP67 rating for responsive security monitoring.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
Features
- Light’s On When People Come, Light’s Off When People Leave
- Double Wick, Four warm light, Four infrared
- Support Humanoid Detection
- Support Region Intrusion Detection, Line Crossing Detection, Video Tampering Detection
- Equipped With unique VQC (Video Quality Catalyst) Technology
- Built-in MIC and Speaker
- Support SD Card(256GB)
| Video | |
| Image Sensor | 1/2.66″ CMOS Sensor |
| Max Resolution | 2880×1620 |
| Effective Pixels | 5.0MP |
| Compression Standard | H.265/H.264 |
| Frame Rate | 25fps |
| Bit Rate | 256Kbps~8192Kbps |
| SNR (dB) | 52dB |
| Min. Illumination | 0Lux (IR ON) |
| Lens | |
| Lens | 3.6mm(M12) |
| FOV | H:95.1°, V:48.5°, D:113.5° |
| Lights | 4 Warm Light LEDs + 4 IR LEDs |
| IR Distance | IR: Up to 50 MetersWarm Light: Up to 30 Meters |
| Function | |
| Exposure Control | Auto |
| White Balance | Auto |
| Gain Control | Auto |
| Image Enhancement | 3D DNR |
| Advanced OSD | Support OSD large font function, OSD flashing on alarm, OSD and time to set the position separately |
| Motion Detection | Support Humanoid Detection |
| Image Setting | Flip, Saturation, Brightness, Contrast, Sharpness |
| Day and night function | Day and night automatic switching |
| Privacy Mask | Support up to 8 areas |
| Intelligent Analysis | Region Intrusion Detection, Line Crossing Detection, Video Tampering Detection |
| Alarm Method | Email Alarm, Client Alarm |
| Remote Operation | System, Audio and video, Image, Alarm, Network management |
| SD Card | Support(256GB) |
| Expansion Interface | Built-in MIC and Speaker |
| Network | |
| Ethernet | 10/100M Ethernet ,1 RJ45 |
| Stream | 2x Streams |
| Protocols | HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| ONVIF | Standard ONVIF |
| Network transmission | CloudSEE 2.0, GB28181 |
| Browser | IE8+, Chrome18+, Firefox5.0+, Safari5.02+ |
| User | Up to 13 Users |
| App | Support iOS/Android |
| General | |
| Power Supply | DC12V or PoE |
| Power Consumption | <3W (During day); <6W (At night) |
| Working Temperature | -20°C ~ 60°C |
| Working Humidity | 10% ~ 90% Rh |
| Material | Black and white/Plastic |
| Dimensions (WxHxD) | 104x98x184(mm) |
| Weight | 280g |
| Waterproof | IP67 |
JVS-N517-TDL 5MP Smart Dual-Light Bullet Camera with Human Detection & Two-Way Audio
Product Overview
The JVS-N517-TDL delivers superior 5MP (2880×1620) resolution with intelligent lighting technology:
-
Smart dual illumination: 4 warm lights (30m) + 4 IR LEDs (50m) auto-activate for human presence
-
Ultra-wide 95.1° viewing angle for maximum coverage
-
Built-in microphone & speaker for two-way communication
-
Advanced AI analytics: Intrusion detection and line crossing alerts
-
VQC technology for crystal-clear image quality
-
Compact IP67-rated housing (104x98x184mm)
With H.265 compression, 256GB SD storage, and ONVIF/CloudSEE 2.0 support, the JVS-N517-TDL is perfect for perimeter security in residential and commercial applications.
