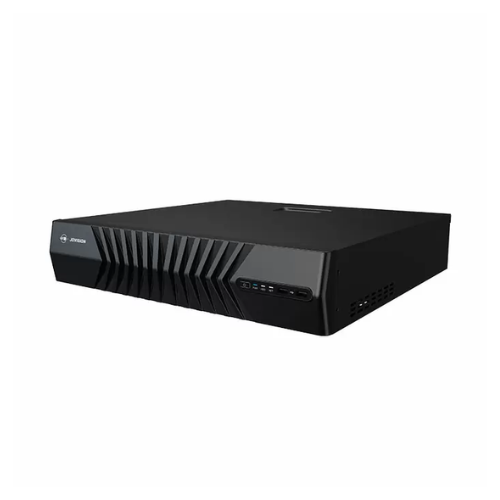

JVS-VM3802-U 256CH Video Server – 3-in-1
– 3-in-1 Management & 80TB Storage
The JVS-VM3802-U server centralizes 256 camera feeds with 3-in-1 functionality (storage/forwarding/management). Supports 8x10TB HDDs and GB28181 for small-medium surveillance projects.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
1.Description
JVS-VM3802-U is a professional 3-in-1 video management server for Video Device Management, Video Forwarding and Video Storage, which is applicable to projects needing distributed centralized storage. This server supports to input up to 256 channels of IPC and NVR, is compatible with various protocols including CloudSEE 2.0, Onvif, E-home, GB28181(version 2016), etc.
2.Features:
- Video Device Management, Video Forwarding and Video Storage 3-in-1
- Distributed centralized storage applicable for projects with video input up to 256channels
- Support Live View, Playback, Video Sequencing, E-Map, Two-Way Talk, PTZ Control, GUI Setting, System Configuration, etc.
- Supports various protocol of CloudSEE 2.0, Onvif, E-home, Onvif, GB28181(version 2016), etc.
- Support MAX 8 HDD (Upto 10TB Each)
- Support WEB (B/S), PC Client (C/S) and APP to access at the same time
3.Server Capacity
- Video Management (256 Channels)
- Device Access (Up to 256 Channels)
- Media Forwarding (400M Shared with Recording)
- Video Recording bandwidth (Max.400Mbps)
| Server | |
| OS | Linux |
| Processor | Intel® X86 High-Performance Multi-Core Processor |
| Network | 2×10/100/1000Mbps Adaptive Network Ports |
| Memory | 8G |
| OS Disk | 128G SSD, Support Power Loss Protection |
| Network Protocol | RTMP, HLS, TCP/IP, Telnet |
| External Interfaces | |
| HDMI | 4x HDMI |
| RS232 | 1x RS232 Interface |
| RS485 | 1x RS485 Interface |
| VGA | 1x VGA Interface |
| USB | 2x USB3.0 and 2x USB2.0 |
| Audio | 1x Audio Connector |
| Alarm I/O | 16 Input, 4 Ouput |
| Ethernet | 2x RJ45 Port |
| System | |
| Basic Composition | Includes three sets of systems (Operation & Maintenance Deployment System, Management System and Business System) and three Terminals (Web, PC software and App). |
| Operation & Maintenance Deployment System | For License Management, Server Setting, Network Setting, Server Restart, Alarm Viewing and Other Functions. |
| Management System | Support Management of Users, Configuration Settings, and Data Statistics. |
| Business System | Video Application Ability Operation and Data Cockpit Statistics. |
| Access Capability | Access Upto 256 Channels and 500Mbps media forwarding |
| Device Management | Device Multi-level Group Management,Channel Sorting ManagementAdd & Modify & Delete Device Parameters in batch |
| Alarm Management | Alarm Output Setting, Modify & Delete & Enquiry & Enable & Disable Alarm Output Setting in batch. Various alarm outputs including Video Popup, Email, Recording, PTZ, etc. |
| Video Management | Configuration and management of deice and video. Media Distribution, Live View and Platform, Sequencing, Video Wall, E-Map, PTZ Control, Alarm Notification, Two-way Talk, etc. |
| Protocol | Onvif, CloudSEE 2.0, E-Home, GB28181 (Version 2016) |
| User, License & Server Monitoring | Decentralization Management, Authorized License Quantity Showing, Server Monitoring and Alarm Management |
| Integration Ability | API or SDK for integration with 3rd party platform |
| Statistics | Support System Data Cockpit and Data Statistics. |
| General | |
| Power | 100~240V AC, 250W |
| Temperature & Humidity | Working Temperature: -20°C ~ 75°CWorking Humidity: RH 10%~ 90% (non-Condensing)Storage Temperature: -20°C ~ 75°C Storage Humidity: RH 5%~ 95% (non-Condensing) |
| Dimension | 670mm×444mm×132mm (3U) |
JVS-VM3802-U 256CH Video Server – 3-in-1 Management & 80TB Storage
Product Overview
The JVS-VM3802-U 256CH Video Management Server offers cost-effective centralized surveillance:
-
3-in-1 Unified Platform:
✓ Device management (256 IP cameras/NVRs)
✓ Media forwarding (400Mbps bandwidth)
✓ Distributed storage (80TB max capacity) -
Multi-Protocol Support:
✓ CloudSEE 2.0, ONVIF, E-home, GB28181 (2016) -
Scalable Storage:
✓ 8 hot-swappable HDD bays (10TB each)
✓ RAID 0/1/5 configurations -
Remote Access:
✓ Web, desktop client, and mobile app control -
Smart Features:
✓ E-Map visualization
✓ Two-way audio
✓ PTZ controls
Ideal for: Retail chains, office buildings, and small campuses needing entry-level centralized management.
