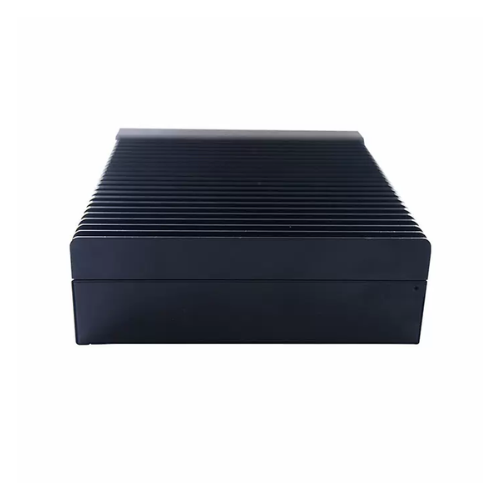

JVS-B700-T fanless AI box with Intel® Core™ i3 and graphene cooling

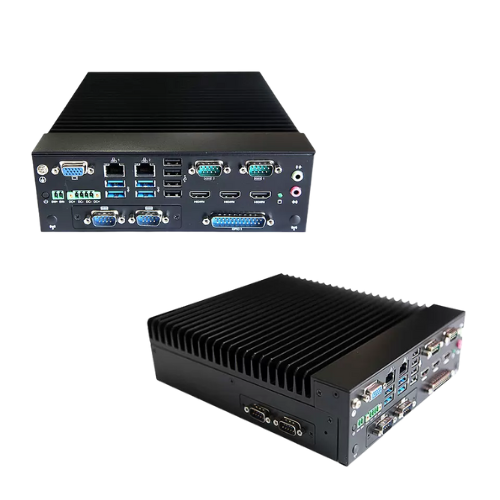

JVS B700 T Intel® Core™ i3 AI Box – Fanless Industrial Edge Computer 2nd Image o
  • JVS-B700-T fanless AI box with Intel® Core™ i3 and graphene cooling
  • JVS B700 T Intel® Core™ i3 AI Box – Fanless Industrial Edge Computer 2nd Image o

JVS-B700-T Intel® Core™ i3 AI Box – Fanless

Brand:
Jovision

– Fanless Industrial Edge Computer

The JVS-B700-T AI edge box features 11th Gen Intel® Core™ i3, graphene cooling, and 6x isolated serial ports. Built for machine vision, smart factories, and rugged industrial AI applications.

57 people are viewing this product right now

Contact Us
Categories: ,

Have any Questions?

Feel free to Get in touch

JVS-B700-T Intel® Core™ i3 AI Box – Fanless Industrial Edge Computer

Product Overview

The JVS-B700-T Intel® Core™ i3 AI Box delivers reliable edge computing with:

  • 11th Gen Intel® Core™ i3 CPU: 3.0GHz base, AI-ready for edge workloads

  • Industrial-Grade Durability:
    ✓ Fanless graphene cooling (-40°C~70°C operation)
    ✓ IP40 sealed metal housing

  • Robust Connectivity:
    ✓ 2x Gigabit Ethernet (PoE-ready)
    ✓ 6x isolated serial ports (15KV ESD protection)

  • Low Power Operation: <20W TDP with 12-36V DC input

  • AI Acceleration: Optimized for:
    ✔ Production line defect detection
    ✔ Traffic monitoring systems
    ✔ Equipment predictive maintenance

Certifications: CE, FCC, RoHS compliant

Model AI Box
System
CPU 11th Gen Intel® Core™ Tiger Lake IoT Processor
I3-1115G4 3.0GHz-4.1GHz 2Core 28W

I5-1135G7 2.4GHz-4.2GHz 4Core 28W

I7-1165G7 2.8GHz-4.7GHz 4Core 28W
Memory Onboard SDRAM LPDDR4 8 ~ 24GB
Storage 1x 2.5-inch shock-absorption hard disk installation position,

Standard configuration 2x M.2 2280 NVMe port, 1x mSATA port
Extension 1x Mini-PCIe expansion slot (with 1x SIM card slot),

2x M.2 Standard configuration (optional 2x Mini-PCIe, Co-Lay)
System support Windows 10 64bit, Ubuntu, Red Hat
Display 3x HDMI + VGA (Internal reserved eDP port, either VGA or eDP)
Wireless Wi-Fi
Network port 2x 10/100/1000Mbps RJ45 Ethernet Ports
General
Power Supply The adapter supports 9V to 36V DC wide input voltage
Working Temperature -10°C ~ 60°C
Working Humidity 5% ~ 90% (Rh Non-Condensing)
Dimensions 200.6 x 232 x 68mm (Without Expansion)228.2 x 232 x 73mm (With wall hanging bar)

Dimension(mm)




JVS-B700-T  Intel® Core™ i3 AI Box.pdf
