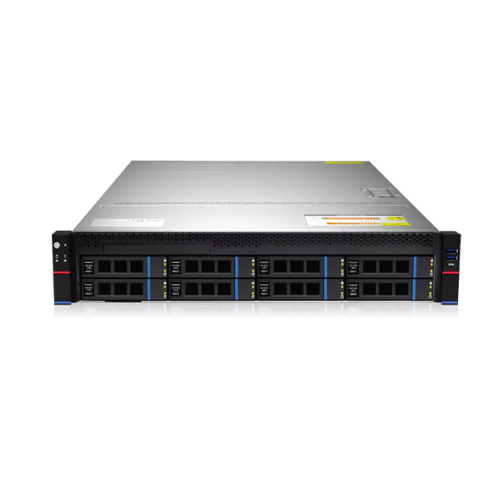

JVS-VM5118-AI Intelligent Edge Server – NVIDIA
– NVIDIA T4 GPU & Multi-Algorithm Support
The JVS-VM5118-AI intelligent server features NVIDIA T4 GPU acceleration, 4 PCIe expansion slots, and cross-brand device compatibility. Ideal for smart city, industrial, and public safety AI applications.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
- Product Introduction
The intelligent server is a back-end computing intelligent hardware based on a high-performance chip platform, with high computing power, high reliability, low power consumption, and storage. It supports dynamic loading algorithms, supports front-end reuse algorithm analysis, and meets the needs of fragmented AI applications. At present, this product has been widely used in smart communities, smart parks, smart chemicals, smart construction sites, smart cities, smart campuses, public safety, safe production and other industries.
- High Performance Computing Capabilities
Built-in NVIDIA T4 high-performance professional GPU accelerator, which can support expansion to 4 PCIE card slots at most, meeting application scenarios with high computing power requirements, integrating high-utilization AI computing power, maintaining low latency at high throughput, and more suitable for real-time applications;
- High Stability and Reliability
AI servers usually need to run stably for a long time, so they have extremely high requirements for stability and reliability to ensure the continuous operation of AI applications;
- Strong Scalability
The modular design allows for flexible expansion according to actual needs, including expansion in computing, storage, and networking.
- Strong Compatibility
Through the self-developed intelligent management platform, the front end is compatible with IPCs and NVRs of different manufacturers and brands, and the back end realizes centralized management of multiple intelligent servers, which is convenient for users’ operation and management, and the end-edge-cloud collaboration makes use of the old to support the new;
| Hardware Configuration | |
| Operating System | Linux |
| Processor | Supports an Intel® Xeon® Scalable processor (TDP 165W), 12 cores and 24 threads; |
| Memory | 32G, Supports up to 16 DDR4 RDIMMs; |
| System Disk | 480GB/SATA3.0/2.5-inch/enterprise level; |
| Storage Disk | Supports 8*3.5/2.5-inch SATA/SAS hard disks, built-in supports 2 2.5-inch SATA/SAS hard disk slots, and the rear IO position can be equipped with 2 2.5-inch hard disk slots; |
| Graphics | NVIDIA T4*1, can support 30-channel video streaming and concurrent face recognition |
| Network Interface | 2 RJ45 adaptive Ethernet Gigabit ports |
| Network Protocol | RTMP, HLS, TCP/IP, Telnet, etc. |
| Display Interface | Supports 4 half-height PCIe 3.0 x16 slots and 2 half-height PCIe 3.0 x8 slots and 1 M.2 (PCIe3.0 x4) interface;
Front: 2 USB3.0, 1 power button, 1 restart button, 1 hard disk indicator light, 1 system fault light, 2 network indicator lights; Rear: 1 VGA, 1 COM port, 2 USB3.0, 2 USB2.0, 1 management network port and 2 RJ45 network ports; |
| Power Supply | 1300W redundant power supply GC1300PRB-G; |
| Working Temperature and Humidity | Working temperature: 5℃～35℃, working humidity: 20%～80%RH non-condensing; |
| Storage Temperature and Humidity | Short-term storage (≤72H): temperature -40℃～70℃/humidity 20%～90%RH non-condensing (including packaging) |
| Long-term storage (＞72H): Temperature 20℃～28℃/Humidity 30%～70%RH non-condensing (including packaging) | |
| Size | 2U chassis, Depth × Width × Height 695*433*87.6mm |
| System Configuration | |
| Platform Model | Center + backend: One center is equipped with multiple backend servers, with cascade management, which is convenient and flexible. |
| Platform Features | Supports basic data management and video parameter configuration of WEB center and cascade management of front-end equipment and platforms; |
| Supports WEB center video preview and playback, video download, voice intercom, PTZ control and other functions; | |
| Supports WEB center alarm parameter configuration, alarm event linkage and alarm event rapid processing functions; | |
| Support WEB center intelligent device management, algorithm management, face engine, face association, and channel arrangement; | |
| Supports platform cascading, where the center cascades the video stream to the backend, and the backend analyzes various scene algorithms (safety helmet, safety rope, smoking and making phone calls, fireworks smoke, face recognition, etc.) by extracting video frames; | |
| Platform Capabilities | It comes with an NVIDIA T4 high-performance computing card, which supports backend analysis of common algorithm scenarios. The specific capabilities are subject to the actual application scenarios. It comes with 8 disk slots, each disk supports 10TB, and supports video files or intelligent alarm picture center storage. |
JVS-VM5118-AI Intelligent Edge Server – NVIDIA T4 GPU & Multi-Algorithm Support
Product Overview
The JVS-VM5118-AI Intelligent Server is a high-performance edge computing solution with:
-
NVIDIA T4 GPU Acceleration: 8.1 TFLOPS FP32 performance for real-time AI processing
-
Scalable Architecture:
✓ 4 PCIe expansion slots
✓ Modular design for compute/storage upgrades -
Multi-Algorithm Support:
✓ Dynamic algorithm loading
✓ Cross-brand IPC/NVR compatibility -
End-Edge-Cloud Collaboration:
✓ Legacy system integration
✓ Centralized management platform -
Industrial-Grade Reliability: 24/7 operation in harsh environments
Key Applications:
✔ Smart city traffic analysis
✔ Industrial safety monitoring
✔ Campus behavior recognition
✔ Construction site hazard detection
