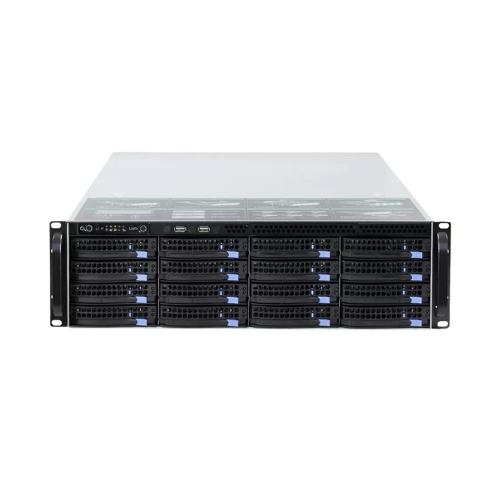

JVS-VM9800-16DT 500CH Video Server – 3-in-1
– 3-in-1 Management & 160TB Storage
The JVS-VM9800-16DT server centralizes 500+ camera feeds with 3-in-1 functionality (storage/forwarding/management). Features 16x10TB HDDs, GB28181, and auto-reconnection for stable surveillance.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
1. Description
JVS-VM9800-16DT is a professional 3-in-1 video management server for Video Device Management, Video Forwarding and Video Storage, which is applicable to projects needing distributed centralized storage. This server supports to input up to 500 channels of IPC and NVR, is compatible with various protocols including CloudSEE 2.0, Onvif, E-home, GB28181(Version 2016), etc.
2. Features
- Video Device Management, Video Forwarding and Video Storage 3-in-1
- Distributed centralized storage applicable for projects with video input up to 500channels
- Support Live View, Playback, Video Sequencing, E-Map, Two-Way Talk, PTZ Control, GUI Setting, System Configuration, etc.
- Supports various protocol of CloudSEE 2.0, Onvif, E-home, Onvif, GB28181(version 2016), etc.
- Support MAX 16 HDD (Upto 10TB Each)
- Support WEB (B/S), PC Client (C/S) and APP to access at the same time disk rejection, support automatic reconnection of video disconnection, etc.
3.Server Capacity
- Video Management (500 Channels)
- Device Access (Up to 500 Channels)
- Media Forwarding 200M
- Video Recording bandwidth (Max. 200Mbps)
| Server | |
| OS | Linux |
| Processor | Intel® X86 High-Performance Multi-Core Processor |
| Network | 4*10/100/1000Mbps Adaptive Network Ports |
| Meory | 8G DDR4, MAX support 32G |
| Network Protocol | RTMP, HLS, TCP/IP, Telnet |

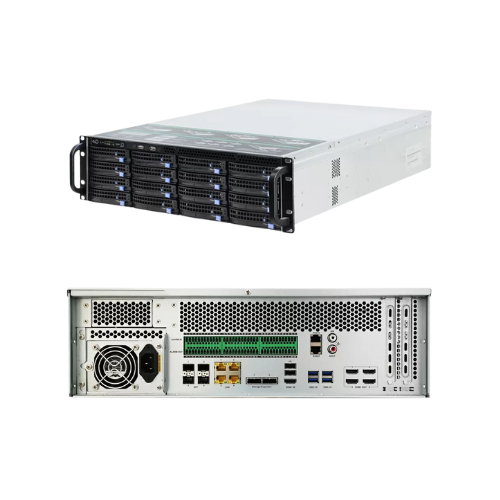

| External Interfaces | |
| RJ45 Serial Interface | 1x RS458 Serial Interface |
| RJ45 Serial Interface | 1x RS422 Serial Interface |
| HDMI Output | 4x HDMI |
| HDMI intput | 1x HDMI |
| USB | 4x USB3.0 and 4x USB2.0 |
| Audio | 1x Audio |
| Ethernet | 4x RJ45 Port |
| System | |
| Basic Composition | Includes three sets of systems (Operation & Maintenance Deployment System, Management System and Business System) and three Terminals (Web, PC software and App). |
| Operation & Maintenance Deployment System | For License Management, Server Setting, Network Setting, Server Restart, Alarm Viewing and Other Functions. |
| Management System | Support Management of Users, Configuration Settings, and Data Statistics. |
| Business System | Video Application Ability Operation and Data Cockpit Statistics. |
| Access Capability | Access Upto 500 Channels and 1000Mbps media forwarding |
| Device Management | Device Multi-level Group Management,Channel Sorting ManagementAdd & Modify & Delete Device Parameters in batch |
| Alarm Management | Alarm Output Setting, Modify & Delete & Enquiry & Enable & Disable Alarm Output Setting in batch. Various alarm outputs including Video Popup, Email, Recording, PTZ, etc. |
| Video Management | Configuration and management of deice and video. Media Distribution, Live View and Platform, Sequencing, Video Wall, E-Map, PTZ Control, Alarm Notification, Two-way Talk, etc. |
| Protocol | Onvif, CloudSEE 2.0, E-Home, GB28181 (Version 2016) |
| User, License & Server Monitoring | Decentralization Management, Authorized License Quantity Showing, Server Monitoring and Alarm Management |
| Integration Ability | API or SDK for integration with 3rd party platform |
| Statistics | Support System Data Cockpit and Data Statistics. |
| General | |
| Power | 100~240V AC ，800W |
| Temperature & Humidity | Working Temperature: -20°C ~ 75°C
Working Humidity: RH 10%~ 90% (non-Condensing) Storage Temperature: -20°C ~ 75°C Storage Humidity: RH 5%~ 95% (non-Condensing) |

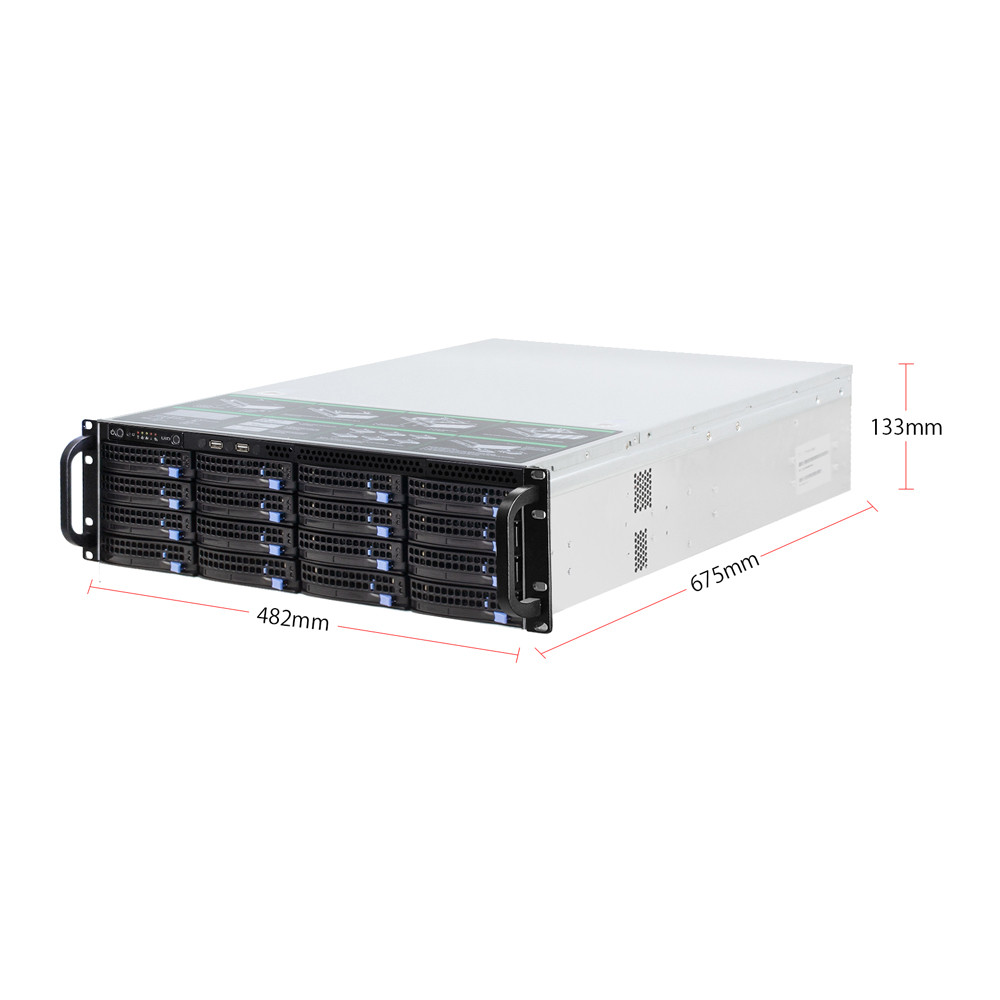

| Dimension | 675×482×133 (3U) |
JVS-VM9800-16DT 500CH Video Server – 3-in-1 Management & 160TB Storage
Product Overview
The JVS-VM9800-16DT 500CH Video Management Server delivers reliable mid-scale surveillance with:
-
3-in-1 Unified Platform:
✓ Device management (500+ IP cameras/NVRs)
✓ Media forwarding (200Mbps bandwidth)
✓ Distributed storage (160TB max capacity) -
Multi-Protocol Support:
✓ CloudSEE 2.0, ONVIF, E-home, GB28181 (2016) -
Fault Tolerance:
✓ Automatic video reconnection
✓ Disk failure alerts -
Scalable Storage:
✓ 16 hot-swappable HDD bays (10TB each)
✓ RAID 0/1/5/6/10 support -
Remote Access:
✓ Web (B/S), desktop (C/S), and mobile app control
Ideal for: Medium enterprises, transportation hubs, and government facilities needing stable, high-capacity video management.
