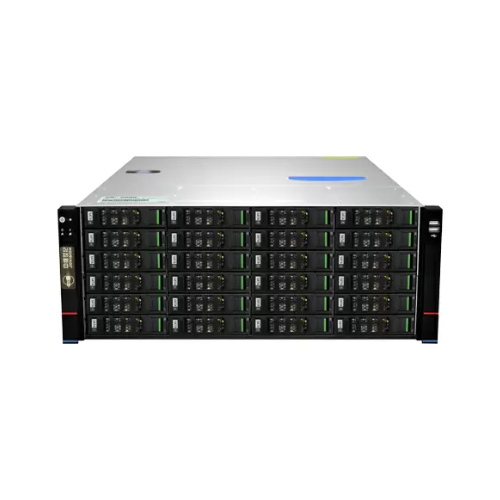

JVS-VS6824-S 24-Bay Video Storage Server – 480TB
– 480TB RAID 5 & 800M Throughput
The JVS-VS6824-S storage server offers 24 hot-swappable bays (20TB/drive), 800MB/s throughput, and RAID 5 protection. Features EMI shielding and auto-recovery for enterprise surveillance archives.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
High Performance
- High performance Intel X86 multi-core processor.
- Supports DDR4 memory with 8GB as standard; maximum support 32G.
- Built-in 500G SSD, support 24xHDD (Upto 20TB Each)
- Supports media forwarding + video storage shared 800M (or used in standalone scenarios)
High Stability
- Supports RAID-5 to ensure data stability
High Reliability
- Adopts intelligent heat dissipation system to effectively reduce noise pollution and create a constant temperature space inside the box; fully shielded against electromagnetic radiation, anti-interference, anti-static (EMI) design.
- Supports docking to various mainstream vendor management platforms through standard protocols such as IPSAN/NFS.
- Support streaming video, alarm video storage, support disk failure alarm, automatic disk rejection, support automatic reconnection of video disconnection, etc.
| Server | |
| OS | Linux |
| Processor | Intel® X86 High-Performance Multi-Core Processor |
| Network | 2×10/100/1000Mbps Adaptive Network Ports |
| Meory | 8G DDR4, MAX support 32G |
| OS DISK | 500G, Support Power Loss Protection |
| Network Protocol | RTMP, HLS, TCP/IP, Telnet |

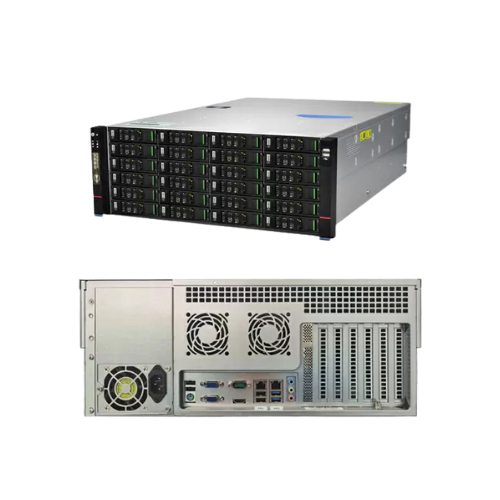

| External Interfaces | |
| COM | 1x COM Interface |
| Video Output | 2x VGA Interface, 1x HDMI Interface |
| PS/2 | 1x PS/2 Port |
| USB | 2x USB3.0 and 6x USB2.0 |
| Audio | 1x Audio Connector |
| Ethernet | 2x RJ45 Port |
| System | |
| Storage mode | Standard Storage Server Mode: Generic network storage services, such as IPSAN/NFS, that can be used by other platforms (Hik, Dahua, UNV, etc.). |
| Fusion Cloud Storage Server Mode: can be used in combination with Fusion cloud platform servers as a slave of the Univision cloud (only media forwarding and storage services are provided). | |
| Storage Capacity | Support 24xHDD (Upto 10TB Each)Support media forwarding + video storage sharing 800M (can also be used independently in a single scene) |
| General | |
| Power | 100~240V AC ，800W |
| Temperature & Humidity | Working Temperature: -20°C ~ 75°C
Working Humidity: RH 10%~ 90% (non-Condensing) Storage Temperature: -20°C ~ 75°C Storage Humidity: RH 5%~ 95% (non-Condensing) |
| Dimension | 670mm×430mm×176mm (4U) |
JVS-VS6824-S 24-Bay Video Storage Server – 480TB RAID 5 & 800M Throughput
Product Overview
The JVS-VS6824-S 24HDD Video Storage Server delivers high-density storage for demanding surveillance environments:
-
Massive Capacity:
✓ 24 hot-swappable bays (2.5″/3.5″)
✓ 480TB raw storage (20TB/drive) -
Optimized Performance:
✓ 800MB/s sustained throughput
✓ DDR4 RAM (8GB expandable to 32GB)
✓ 500GB SSD cache acceleration -
Data Protection:
✓ RAID 5 with automatic disk replacement
✓ Network/video auto-reconnect -
Industrial Design:
✓ EMI-shielded chassis
✓ Intelligent cooling (28dB noise)
✓ -5°C~45°C operating range
Best for: Financial institutions, casinos, and critical infrastructure needing high-availability video retention.
