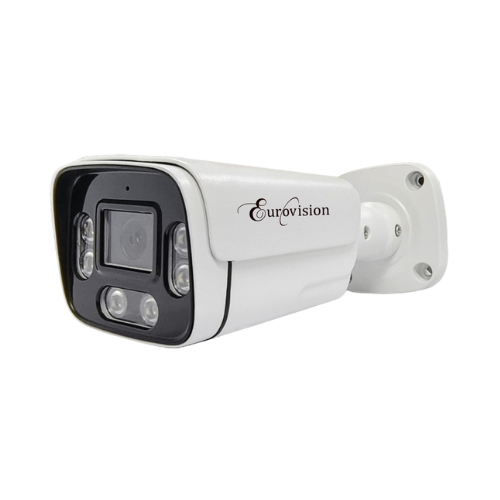

EV-CF-8V-G4-PMS 8MP AI Bullet Camera with 6 Smart Functions & Dual Light Vision

EV-CF-8V-G4-PMS | 8MP AI Bullet Camera

Brand:
Eurovision

-with 6 Smart Functions & Dual Light

The EV-CF-8V-G4-PMS is an 8MP AI bullet IP camera featuring 6 smart detection functions, dual light night vision, built-in PoE, and dual audio for advanced security monitoring.

20 people are viewing this product right now

Contact Us
Categories: , ,

Have any Questions?

Feel free to Get in touch

EV-CF-8V-G4-PMS | 8MP AI Bullet Camera with 6 Smart Functions & Dual Light

Product Overview

The EV-CF-8V-G4-PMS is a cutting-edge 8MP AI bullet camera designed for intelligent, high-resolution surveillance with advanced analytics capabilities. The EV-CF-8V-G4-PMS delivers exceptional 4K clarity with its 8MP resolution and features six built-in AI functions including line-crossing detection, area intrusion, loitering detection, vehicle retrograde, staff absence monitoring, and illegal parking detection. This advanced camera utilizes dual-light technology for superior night vision and comes with built-in PoE for easy installation. With its built-in microphone and speaker for two-way audio, IP66 weatherproof rating, and efficient S265 compression, the EV-CF-8V-G4-PMS offers a comprehensive smart security solution for commercial properties, industrial sites, and high-security areas requiring advanced monitoring and analytics.

Specification



Basic Parameter
Model EV-CF-8V-G4-PMS
Smart Function 6 AI function
Main Chipset T41NQ
Image Sensor 1/2.7″, 8MP progressive scan ultra-low illumination CMOS GC8613
Effective Pixels 8MP
Min. Illumination Color：0.1Lux@F1.2; B&W：0Lux@F1.2(IR on)
Lens F1.6 4mm
IR Distance 10-15M (6pcs lamps)
Noise Reduction 3D noise reduction
WDR DWDR (off / low / medium / high)
Mirror Off / horizontal mirroring / vertical mirroring / 180 ° rotation
Image Setting Brightness / contrast / sharpness / saturation / chroma
6 AI Function
Line-crossing Detection When someone in the area crosses the drawn warning line, the alarm will be triggered
Vehicle Retrograde When there is a vehicle go in opposite direction, the alarm will be triggered
Staff Absence When someone leaves the area for longer than the set time, the alarm will be triggered
Loitering When someone enters this area and stays for more than the set time, the alarm will be triggered
Area Intrusion Set up an area, when someone enters this area, the alarm will be triggered
Vehicle Illegal Parking Set up an area which does not allow to park more than specific time, when vehicle parking time is more than set time, the alarm will be triggered
Video and Audio Coding
Encoding Format S265/H.265/H.264
Coding Characteristics Main stream: 3840X2160@25fps, 3072X2048@25fps, 3072X1728@25fps, 2592X1944@25fps, 2880X1620@25fps, 2560X1440@25fps, 2304X1296@25fps, 1920X1080@25fps
Sub stream: D1(720X576), VGA(640X480), Q720P(640X360)
Video Bit Rate Fixed bit rate, variable bit rate(1280kbps-4Mbps)
Video Type Composite stream / video stream
Audio Coding Standard G.711U/64Kbps
Network Function
Network Interface 1*RJ45 10M/100M self-adaptive LAN port
Network Protocol TCP/IP, UDP, HTTP, DHCP, RTSP, NTP
Interface Protocol ONVIF
Port
Network Interface RJ45 10M/100M network adaptive
PoE Built-in PoE
Audio Built-in Mic & Speaker
General
Operation T/H  – 10°C ~ 50°C / 0﹪-90﹪
Waterproof IP66
Power Supply DC12V / PoE
Power Consumption <10W (MAX)
Dimension (mm) Equipment: 75(W)X70(H)X230(L)mm (with bracket)
Packing:  105mm(W)X92mm(H)X200mm(L)
Weight/PCS (g) N.W.: 440g    Packing: 496g
Outside Carton 45pcs/carton; 615mmX540mmX300mm; Weight: 23.4kgs
